DP Series Single Cylinder Hydraulic Cone Crusher
- Even final product particle size
- Strong crushing capacity
- continuous and stable operation
- High capacity
- Quick Mantle & Concave Replacement
- Even Liner Abrasion
- Automatic Overload Protection

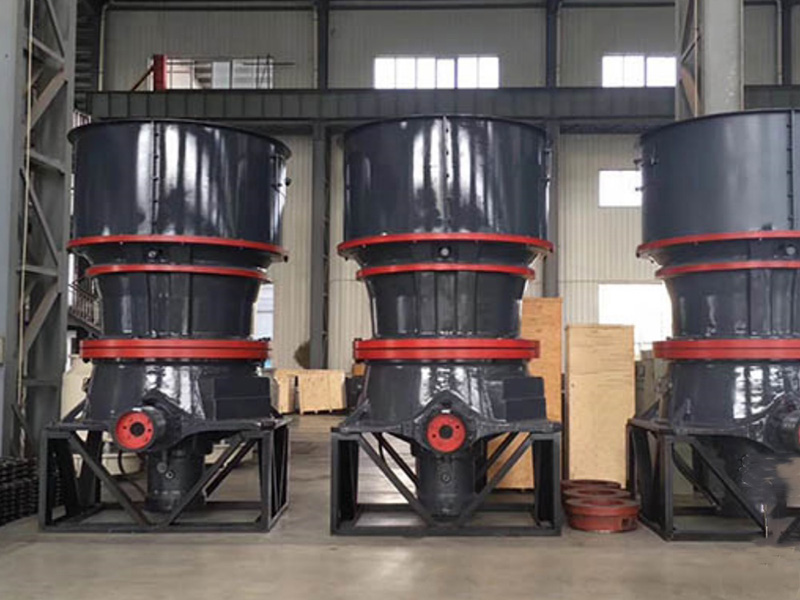

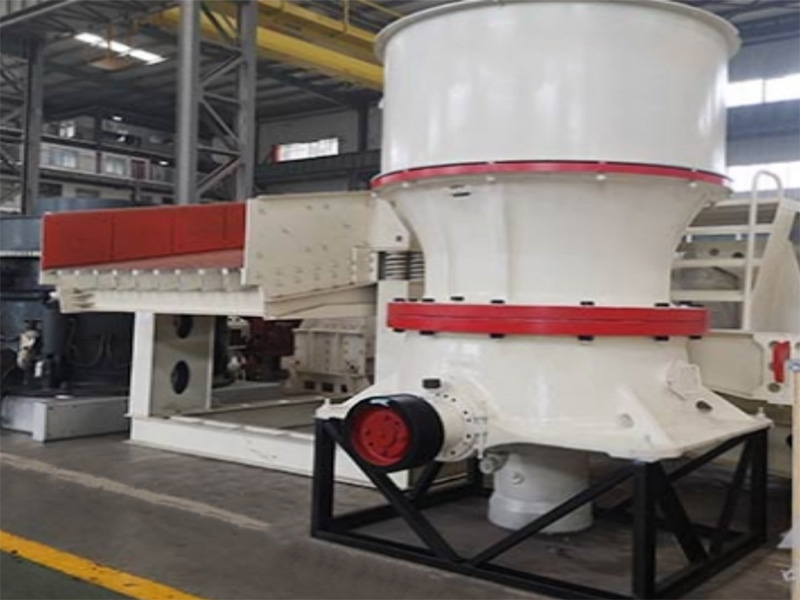

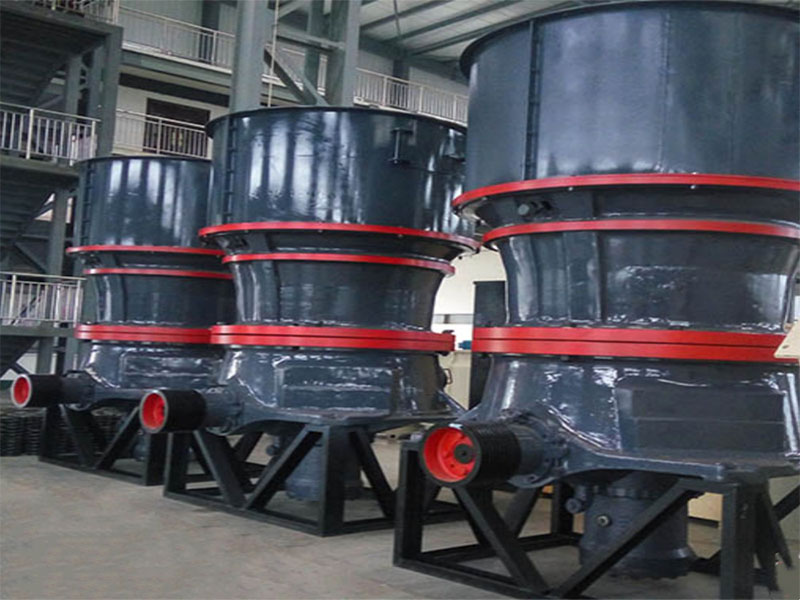

DP Series Single Cylinder Hydraulic Cone Crusher
Engineered for nonstop mineral processing in the most demanding mining environments
Maximize your mine's output with the DP Series Single Cylinder Hydraulic Cone Crusher. Experience exceptional versatility with models spanning from the compact DP100 (90kW) to the powerhouse DP870 (500kW), handling feed sizes up to a massive 300mm (DP670 EC).

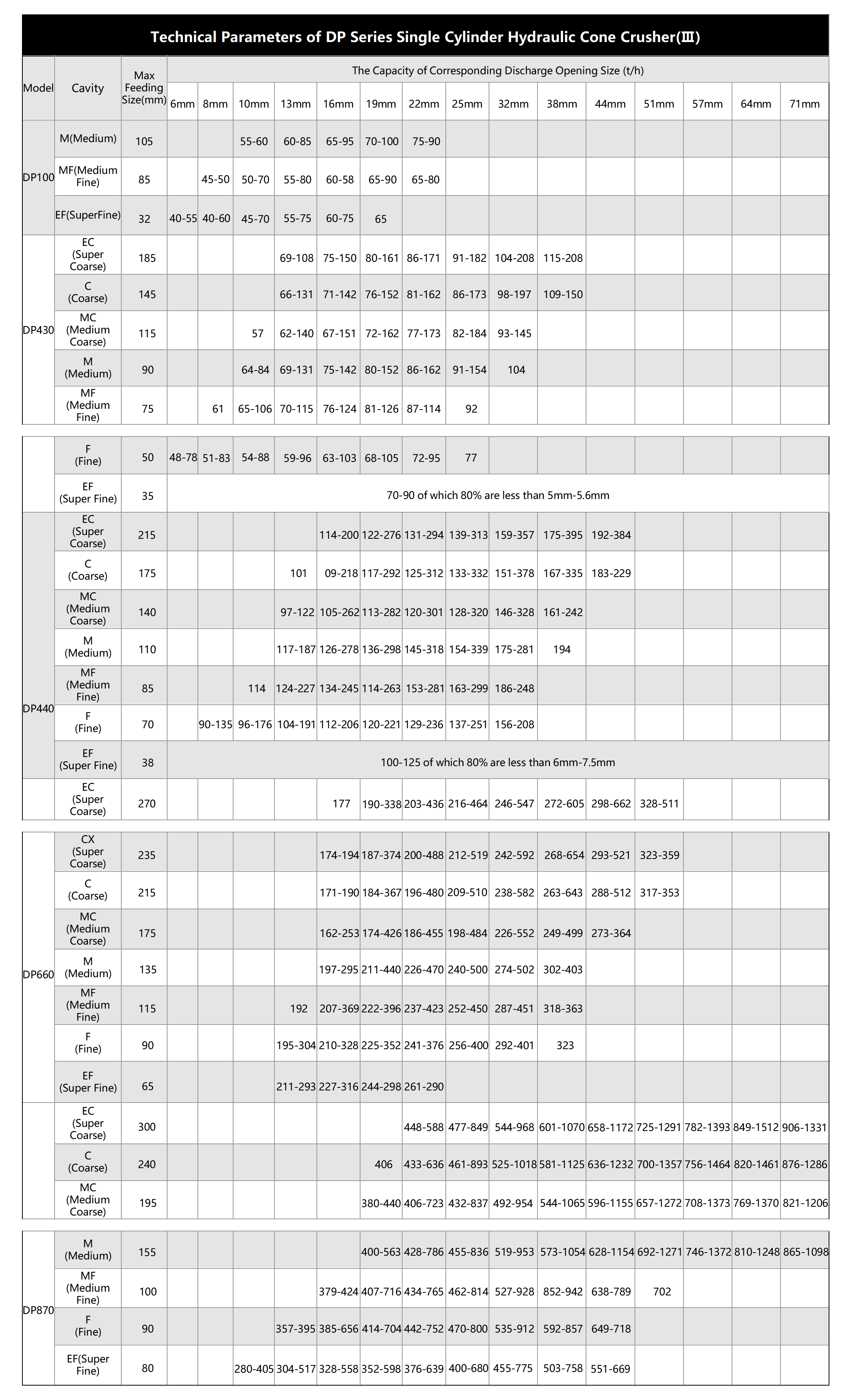

Precisely control your final product with our industry-leading cavity range: from Super Coarse (EC) for primary reduction to Super Fine (EF) for exact sizing. Achieve your target gradation with discharge openings adjustable from 6mm to 120mm.

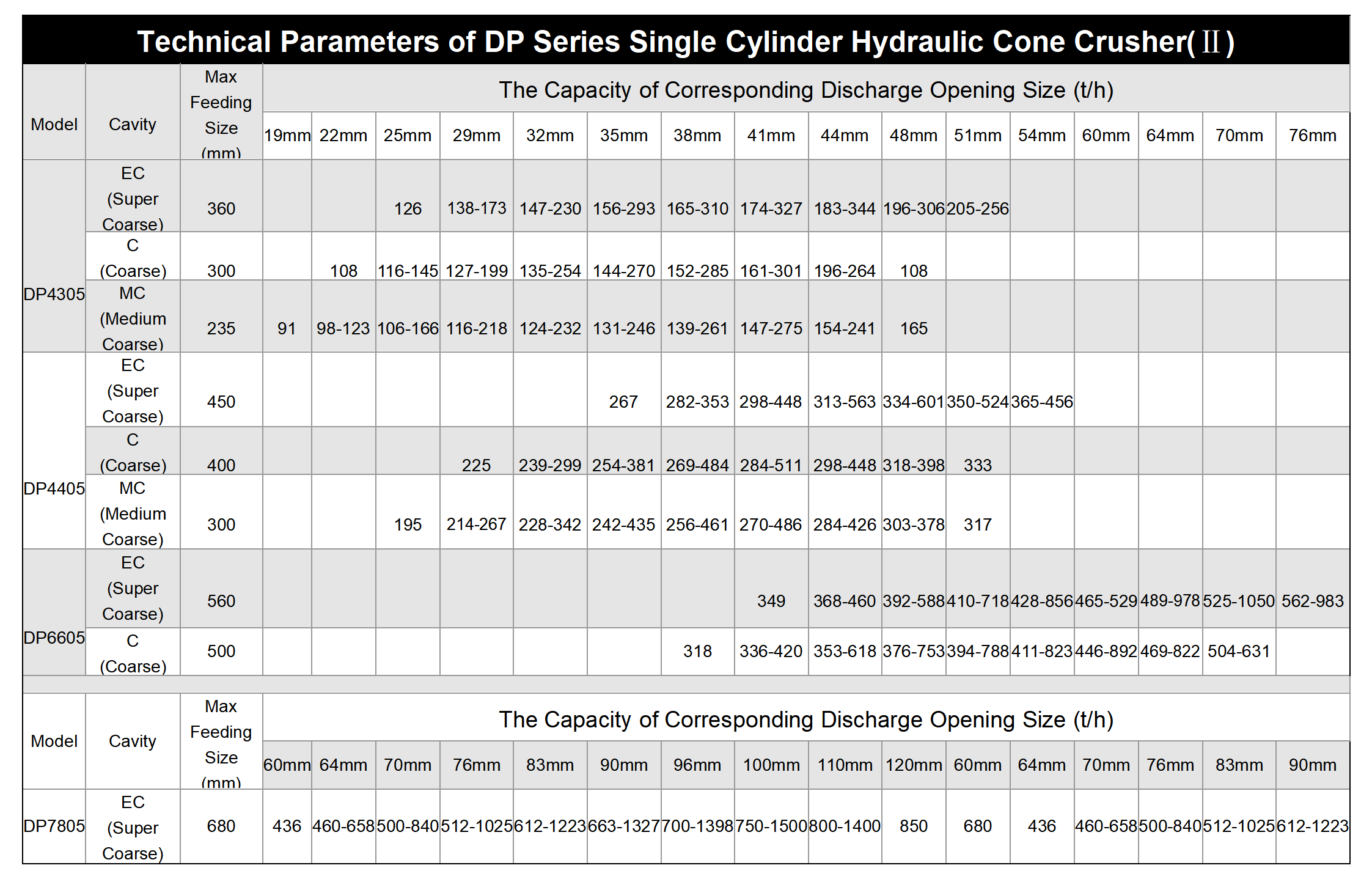

The DP Series delivers impressive throughput across applications:
High-volume crushing: DP870 EC handles up to 1500 t/h
Precision secondary crushing: DP100 EF operates at 40-75 t/h
Heavy-duty primary reduction: DP660 EC processes 190-662 t/h

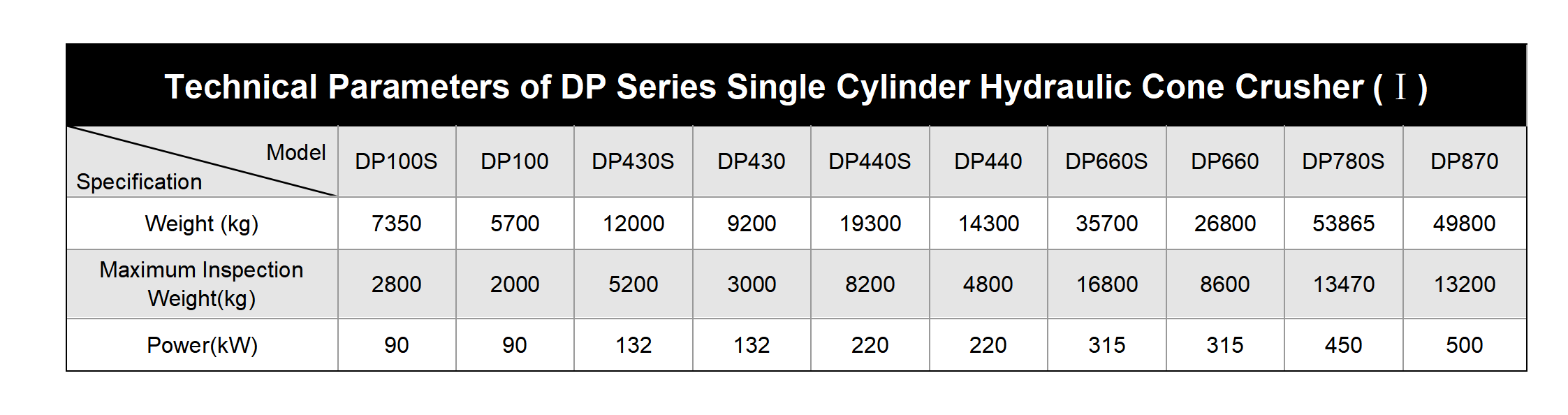

Robust Construction
Max Weight: 53,865 kg (DP780S)
Inspection Weight: Up to 16,800 kg
Heavy-Duty Frame: Reinforced for mining operations
Durability: Engineered for continuous operation
Power & Efficiency
Power Range: 90kW to 500kW
Motor Efficiency: Optimized for energy savings
Capacity: High throughput across all models
Processing: From aggregates to hard rock
Uniform Particle Size
Consistent, even final product granularity for superior material quality
High Capacity
Maximum throughput with processing up to 1500 t/h in large models
Automated Hydraulic System
Intelligent overload protection and automated cavity clearing
Continuous Operation
Stable performance for non-stop mining operations
Quick Maintenance
Simplified replacement of mantle and concave components
Optimized Wear
High-efficiency feeding ensures liner abrasion is even and predictable
