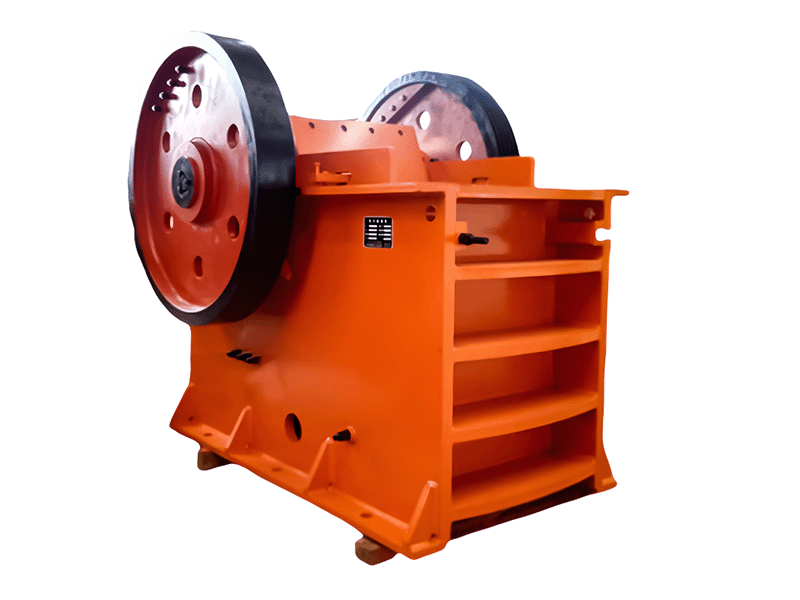

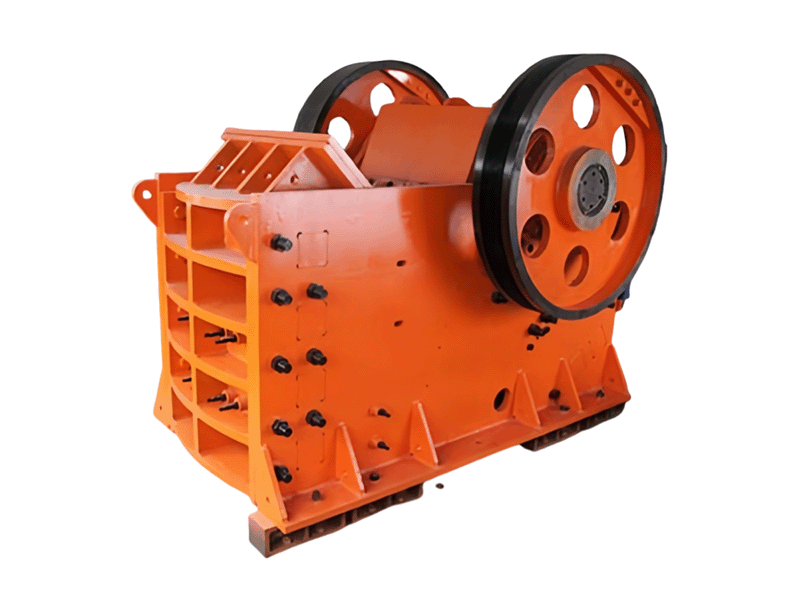

PE Series Primary Powerhouse Jaw Crusher
- High crushing ratio & uniform size
- Wedge adjust for wide output
- Low dust & noise operation
- Durable jaw plates save cost
PE Series Primary Powerhouse Jaw Crusher
✓ Primary Powerhouse Advantage: Engineered for compression strength up to 320MPa (hardest rocks like granite, basalt). Maximum feeding size reaches 500mm (PE-600×900 model), handling oversize material directly from blasting or excavation.
💰 Save Cost & Boost Production: High crushing ratio (up to 8:1) reduces the need for secondary crushing stages. The wedge adjustment system ensures quick discharge setting changes, minimizing downtime. Low energy consumption per ton, plus durable manganese jaw plates extend replacement intervals — reducing operating costs by ~15-20% compared to conventional crushers. Higher throughput (up to 180 t/h) ensures maximum plant productivity.
✅ Reliable primary crushing solution for mining, quarry, and recycling — proven in the toughest conditions.

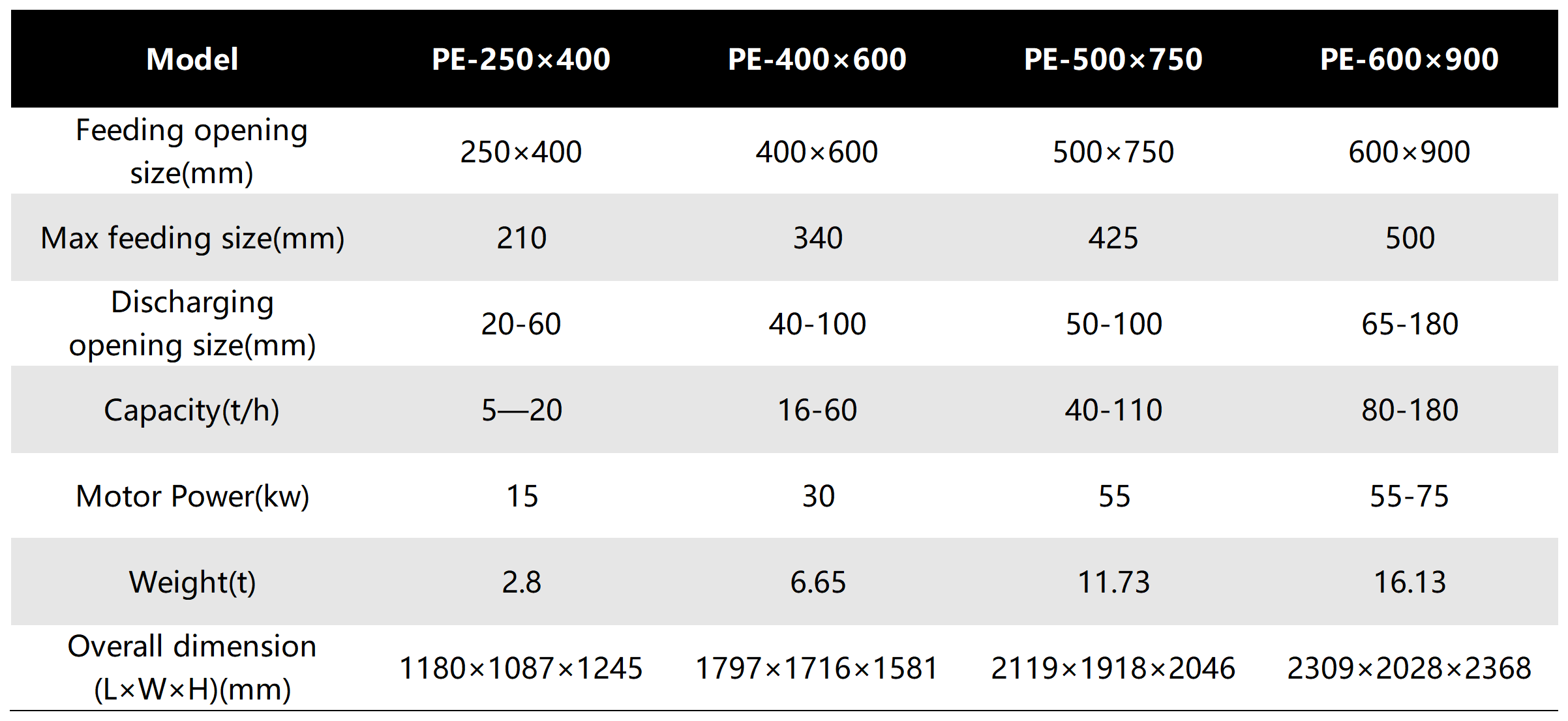

📊 Technical Specifications
| Model | PE-250×400 | PE-400×600 | PE-500×750 | PE-600×900 |
|---|---|---|---|---|
| Feeding opening size (mm) | 250×400 | 400×600 | 500×750 | 600×900 |
| Max feeding size (mm) | 210 | 340 | 425 | 500 |
| Discharging opening size (mm) | 20-60 | 40-100 | 50-100 | 65-180 |
| Capacity (t/h) | 5–20 | 16–60 | 40–110 | 80–180 |
| Motor Power (kW) | 15 | 30 | 55 | 55-75 |
| Weight (t) | 2.8 | 6.65 | 11.73 | 16.13 |
| Overall dimension (L×W×H) (mm) | 1180×1087×1245 | 1797×1716×1581 | 2119×1918×2046 | 2309×2028×2368 |
⚙️ Features & Advantages
🔩 High Crushing Ratio
Produces even, well-graded final product size. The deep crushing chamber increases capacity and reduction ratio.
⚙️ Adjustable Discharge
Wedge adjusting system makes discharging opening adjustment reliable, wide-range, meeting various customer requirements.
🛢️ Safe Lubrication
Centralized lubrication points, easy maintenance and low workload. Robust bearing design ensures continuous operation.
🧩 Low Operational Cost
Simple structure, reliable performance, less wear part consumption; lower operating & maintenance costs.
🌿 Eco-Friendly
Little dust generation and low noise level due to optimized crushing chamber and sealed structure.
🏭 Applications & Typical Materials
The PE Series Primary Powerhouse Jaw Crusher is widely applied in primary crushing for hard rocks, ores, and mineral materials with compression strength ≤320MPa. Ideal industries include:
Mining & Quarrying: Crushing granite, basalt, iron ore, copper ore, limestone, river pebbles.
Construction & Aggregates: Production of road base, concrete aggregate, railway ballast.
Concrete & Asphalt Recycling: Processing construction & demolition waste into reusable material.
Cement Plants: Primary reduction of limestone, gypsum, clinker (pre-crushing).
Metallurgical Industry: Slag processing and ore preparation.
💎 Typical hard rocks: Granite (up to 250MPa), Basalt (300MPa), Gabbro, Quartzite, Riverstone — all efficiently processed with our high-strength manganese jaw plates.
🔄 Working Principle (E-E-A-T Engineering)
The jaw crusher uses compressive force for breaking material. The crushing chamber consists of a fixed jaw plate mounted on the frame, and a swinging jaw plate mounted on the eccentric shaft. When the eccentric shaft rotates, the movable jaw moves up and down via a toggle plate.
👉 On the down stroke, the gap between jaws opens — crushed material discharges by gravity. On the up stroke, the movable jaw approaches the fixed jaw, crushing the feed material. The toggle plate and tension rod system provides overload protection by absorbing shock loads. The result: continuous, high-capacity primary crushing with consistent particle size.
This “crushing without rubbing” principle minimizes jaw plate wear and enhances energy efficiency. Operators can easily adjust the discharge setting by rotating the wedge or hydraulic adjustment (depending on design).
