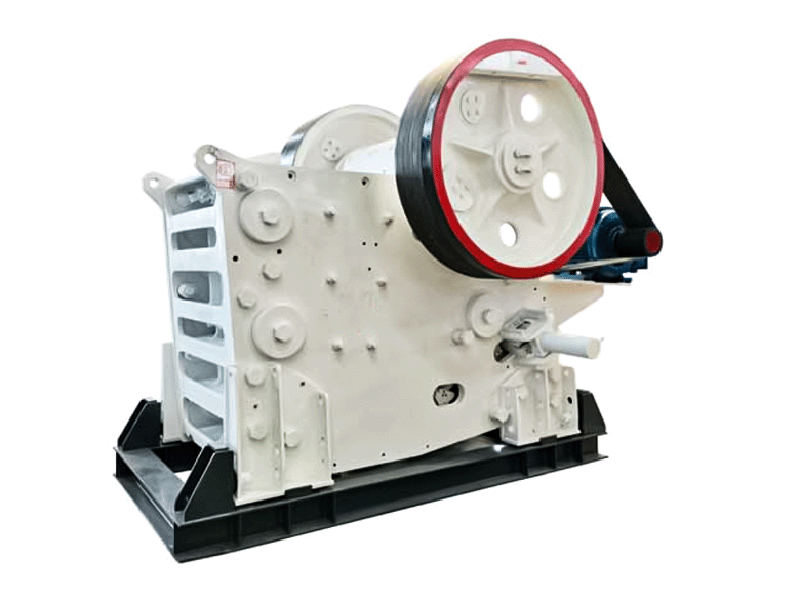

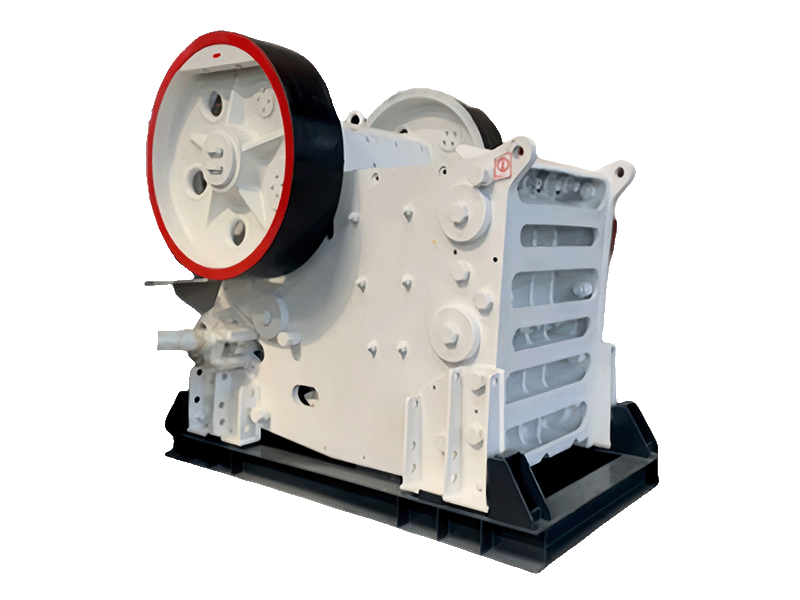

ZXC Series High Output Jaw Crusher

30% higher output guaranteed
20% lower operating costs
V-shaped crushing cavity
Faster discharge adjustment

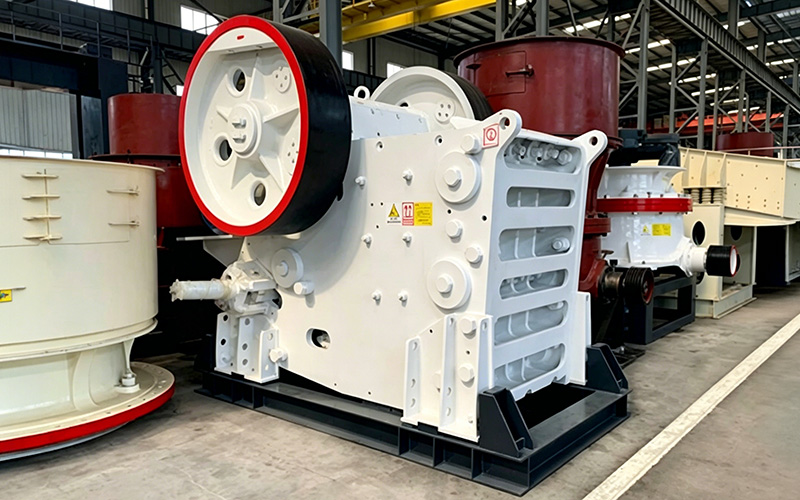

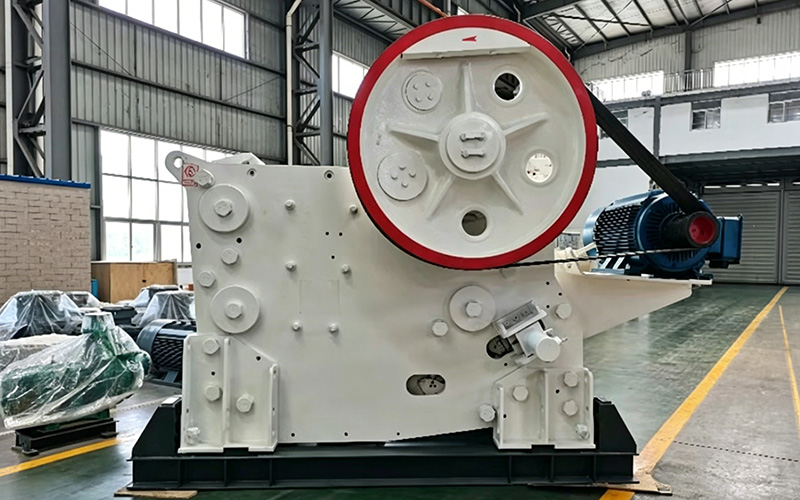

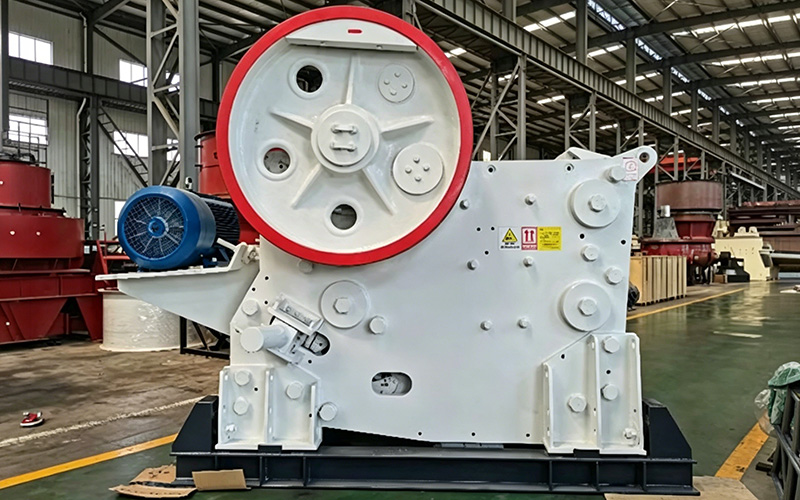

ZXC Series High Output Jaw Crusher | Advanced Crushing Solution

ZXC Series High Output Jaw Crusher Output +30%

Advanced V-cavity technology | ideal for hard rock & high abrasion materials

Get Quotation

Next-Generation Crushing Power

ZXC series jaw crusher — developed with 20+ years of PE series experience, international technology and FEM (Finite Element Analysis). Revolutionary changes in crushing cavity, bearing standards and manufacturing process bring 30% higher output and 20% lower operating cost compared to traditional PE series.

⚡ High Output version features: relatively shallower cavity, medium-high eccentric speed, lighter dead weight → optimal for medium capacity & conventional working conditions. While the robust version targets deeper cavity & heavier mass, the ZXC High Output series delivers perfect balance between efficiency, mobility and energy savings.

Technical Specifications

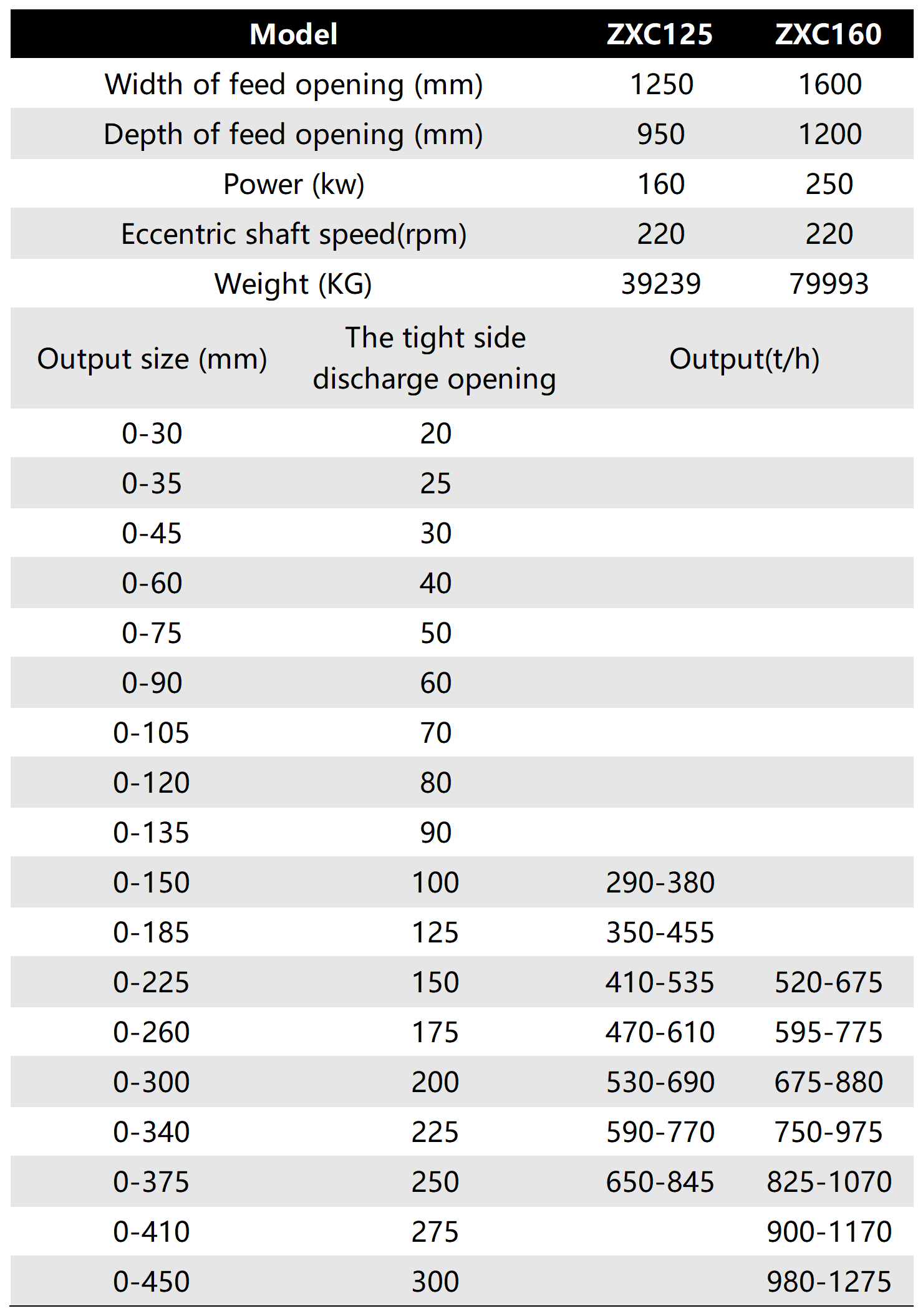

Model	ZXC110	ZXC120	ZXC125	ZXC140	ZXC145	ZXC150	ZXC160	ZXC200
Width of feed opening (mm)	1100	1200	1250	1400	1400	1500	1600	2000
Depth of feed opening (mm)	850	870	950	1070	1100	1200	1200	1500
Power (kW)	160	160	160	200	200	250	250	400
Eccentric shaft speed (rpm)	230	230	220	220	220	220	220	200
Weight (kg)	26150	28160	39239	47120	57723	74000	79993	121500

Output Capacity (t/h)

Capacity data based on different closed side discharge openings (mm). High performance & stable gradation.

Closed side setting (mm)	Output size (mm)	ZXC110	ZXC120	ZXC125	ZXC140	ZXC145	ZXC150	ZXC160	ZXC200
70	0-105	190-250	205-265	-	-	-	-	-	-
80	0-120	210-275	225-290	-	-	-	-	-	-
90	0-135	235-305	250-320	-	-	-	-	-	-
100	0-150	255-330	270-345	290-380	-	-	-	-	-
125	0-185	310-405	325-420	350-455	385-500	400-520	-	-	-
150	0-225	370-480	385-495	410-535	455-590	470-610	478-620	520-675	-
175	0-260	425-550	440-565	470-610	520-675	540-700	548-710	595-775	760-990
200	0-300	480-625	495-640	530-690	590-765	610-795	618-805	675-880	855-1110
225	0-340	-	-	590-770	655-850	680-885	688-895	750-975	945-1230
250	0-375	-	-	650-845	725-945	750-975	758-980	825-1070	1040-1350
275	0-410	-	-	-	-	820-1070	828-1075	900-1170	1130-1470
300	0-450	-	-	-	-	-	898-1160	980-1275	1225-1590

Note: Capacities may vary depending on feed gradation, material characteristics and moisture. Actual output subject to site conditions.

Features & Advantages

V-shaped Crushing Cavity

Larger feed opening & higher output, optimized material flow.

Finite Element Optimized

Perfect match of the frame, increased whole-machine strength.

Rapid Discharge Adjustment

Special adjustment device faster & more convenient operation.

Higher Load Bearings

Larger type bearing for extreme reliability & longer life.

Working Principle (V-Crushing Cavity)

The ZXC High Output jaw crusher adopts a unique "V-shaped" crushing chamber geometry. The fixed jaw and moving jaw form an upwardly widening feed zone and a downwardly narrowing discharge zone. As the eccentric shaft rotates, the moving jaw moves periodically towards the fixed jaw via a toggle plate mechanism. Rocks entering the V-cavity are progressively crushed due to compression and shearing forces; the steep cavity angle promotes gravitational flow, allowing larger feed size and preventing choking. Compared to traditional straight chambers, the V-design increases nip angle acceleration and reduces slippage, significantly boosting material throughput by over 30%. The optimized kinematics and moderate-high eccentric speed enable excellent reduction ratios while maintaining stable particle shape, all with lower energy consumption.

Why Choose ZXC Series over traditional PE?

Compared with the conventional PE series jaw crusher, ZXC series delivers revolutionary improvements: output increased by >30% & operating cost reduced by >20%. These gains are achieved through:

Advanced V-shape cavity & larger stroke – increases crushing ratio and volume capacity.
Finite Element Analysis (FEA) – optimized frame design reduces stress concentration and weight without sacrificing rigidity.
Heavy-duty rotor & bearings – higher load capacity extends maintenance intervals.
Premium wear materials – jaw plates survive longer in highly abrasive rock, reducing replacement frequency.
Efficient discharge adjustment – reduces downtime, improves plant utilization.

Result: higher throughput, lower energy per ton, and minimized wear part consumption — directly elevating your profitability.

Frequently Asked Questions

How often should jaw plates / wear parts be replaced?

The ZXC series utilizes larger-type bearings and high-quality manganese jaw plates. Wear life depends on feed abrasiveness and operating hours. Under typical hard rock applications (granite/basalt), jaw plates can last 800–1500 hours. The V-cavity design reduces rubbing, and the replaceable cheek plates & toggle seats extend overall durability. Daily monitoring of tooth profile is recommended; change when performance drops or discharge setting becomes inconsistent.

How exactly does ZXC achieve 30% higher output & 20% lower cost vs PE series?

By combining V-shaped crushing cavity with larger eccentric strokes and a more aggressive nip angle, the material passes faster and breaks more efficiently. Finite Element Analysis reduces redundant weight while increasing structural strength. Premium bearings and precise manufacturing decrease friction loss, and the optimized toggle plate geometry reduces recirculating load. Consequently, energy consumption per ton and wear part wear rates drop significantly, proven by years of mining-site data.

Is the discharge setting adjustable while operating? How precise?

Yes, the ZXC series incorporates a special hydraulic or shim adjustment device (depending on model). The system allows fast and safe closed-side setting (CSS) changes without stopping the main crusher in most configurations. Adjustments can be as fine as 5-10mm, ensuring product grading flexibility as per your required output size range (0-105mm up to 0-450mm). The design reduces downtime and improves plant operational efficiency.

Which model suits medium capacity & conventional hard rock?

For medium capacity & conventional working conditions, the High Output version (ZXC110 to ZXC150) features shallower cavity, medium-high speed and lighter weight, perfect for throughput of 200–800 t/h while keeping installation costs manageable. Among them, ZXC125/ZXC140 are widely used for river stone and aggregate production.

Request a Custom Quote

Contact our engineers for tailored solution & availability
