Behind the Scenes: How We Put Our 2.5‑Ton Battery Locomotive Through Its Paces

Introduction: The One Part You Can't Afford to Ignore

Let's be honest—when a locomotive goes down underground, the clock starts ticking in cold, hard cash. Not just lost production, but the cost of rescue crews, rerouted haulage, and the overtime it takes to catch up.

Everyone talks about battery capacity. But in my years working with mining fleets, I've learned that the walking mechanism—those wheels, axles, gearboxes, and suspension rods—is what really separates a reliable machine from a maintenance nightmare. Because if the legs give out, the heart doesn't matter.

At CSME, we've built our reputation on one simple rule: we test like we mean it. No shortcuts. No "good enough." Before any 2.5‑ton battery locomotive leaves our factory floor, its walking mechanism goes through a gauntlet of checks that I'm going to walk you through right now.

1. What's Under the Hood? The Five Pillars of Our Walking Mechanism

You can't build toughness with cheap steel and loose tolerances. Every walking mechanism we assemble starts with carefully sourced materials and precision machining. Here's what goes into it:

• Traction Motor – The muscle. Designed specifically for high starting torque, because dragging a loaded train from a dead stop on a gradient takes real grunt.

• Reducer / Gearbox – The brains of the torque game. It takes high‑speed motor rotation and transforms it into the low‑speed, high‑power twist that actually moves the load.

• Wheelsets & Axles – Forged from high‑strength steel, not cast. We've seen what years of rail friction can do, and we overbuild ours to handle it.

• Bearing & Axle Box – Keeps everything spinning smoothly while keeping dust and moisture out. In a wet, dusty mine, that seal is your best friend.

• Elastic Suspension Rod – The shock absorber you rarely think about—until you hit a bad track joint. This rod cushions the frame from impact, reduces stress on the whole structure, and helps prevent those dreaded derailments.

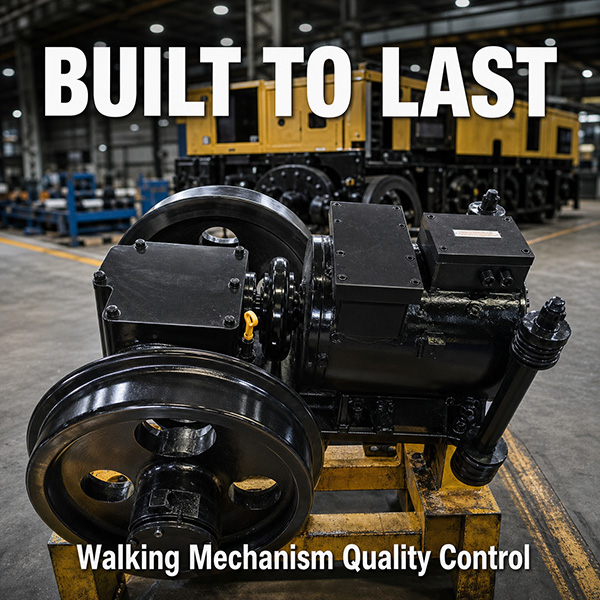

[Insert Video 1: Static display of the fully assembled walking mechanism]

Take a close look at the weld quality and the heft of those components. This isn't lightweight equipment—it's built to last.

2. The Gearbox: Where the Real Muscle Lives

If I had to pick one part of the walking mechanism that gets the most abuse, it's the gearbox. So we spec it with no compromises.

Our 2.5‑ton locomotive uses a two‑stage reduction gearbox that combines cylindrical and bevel gears. Why two stages? Because it gives you smoother power delivery and higher torque output—exactly what you need when you're hauling multiple cars up a slight incline.

Here are the key specifications at a glance:

Reduction Type: Two‑stage reduction (cylindrical + bevel gears)

Transmission Ratio: i = 15.78

Gear Set 1 (Cylindrical / Spur Gears):

• Large spur gear: Z=104, Module (m)=3

• Small spur gear: Z=16, Module (m)=3

Gear Set 2 (Bevel Gears):

• Large bevel gear: Z=34, Module (m)=6

• Small bevel gear: Z=12, Module (m)=6

Lubrication: Splash lubrication — simple, reliable, and no complex pump to fail

Oil Capacity: 3 kg of general gear oil

A quick note on those module numbers. The bevel gears use a heavier m=6 for extra strength where it matters most, while the cylindrical gears run at m=3 for precise, efficient power transfer. This combination gives you the best of both worlds—durability where you need it, and smoothness where it counts.

And splash lubrication? It's simple, reliable, and works beautifully. As the gears turn, they fling oil everywhere it needs to go. With 3 kilos of oil in the housing, heat stays under control and you're not topping it up every other shift.

3. The Moment of Truth: Our Dynamic No‑Load Test

Now comes the part I personally enjoy most—the no‑load test. This is where good components prove they work together as a great system.

Once the whole walking mechanism is assembled, we lift the locomotive chassis off the ground, power up the traction motors, and let the wheelsets spin freely for a sustained period. No load, just the mechanism doing its thing.

[Insert Video 2: Wheelsets running under no‑load test]

Watch the rotation and listen to the rhythm. You'll hear what we listen for.

Here's exactly what we're checking during this test:

• Gear Meshing Sound – Our senior technicians have decades of experience between them. They can hear a misaligned tooth before any instrument picks it up. A smooth, steady hum means everything is meshing perfectly. Any chatter, grinding, or irregular noise sends the unit back for inspection. No exceptions.

• Wheel Trueness – We monitor every wheelset for eccentric wobble or vibration. Perfectly aligned wheels mean less wear on your tracks, less stress on the axles, and a smoother ride for your operators. It also means fewer derailments—and I don't need to tell you what those cost.

• Lubrication Distribution – With the gearbox running at operational speed, we verify that the splash system is actually reaching every bearing and gear tooth. We've seen designs that look good on paper but starve the top bearings. Ours doesn't.

• Temperature Rise – We run the test long enough to get stable temperatures, then check the axle boxes and gearbox housing with thermal probes. If any spot runs hot, we investigate why. Overheating is the enemy of bearing life, and we won't ship a unit that runs even slightly warm.

Conclusion: We Test Hard So You Can Run Hard

When you invest in a 2.5‑ton battery locomotive from us, you're not just buying steel and copper. You're buying the confidence that comes from knowing every critical component—from the elastic suspension rod to the two‑stage gearbox—has been individually inspected and collectively proven under test.

We don't catch problems in your mine. We catch them in our factory. That's the promise.

And if you're still not convinced? I'd welcome the chance to show you around our facility—live, over a video call—so you can see the testing for yourself. No scripts. No polished marketing reels. Just real equipment, real people, and real standards.

Ready to upgrade your underground haulage fleet? Reach out to our technical sales team for a customized quote, or ask for that live video tour. We're happy to prove it.
