CTY2.5 Battery Electric Locomotive
- Chassis: Welded Steel Spring Suspension
- Speed Control: Electronic Step-less Control
- Brakes: Mechanical Drum Coupler Brake
- Sanders: Mechanical Rail Sanding System
- Battery: Steel Anti-Acid Battery Housing
- Buffers: Spring Shock Absorber Buffers

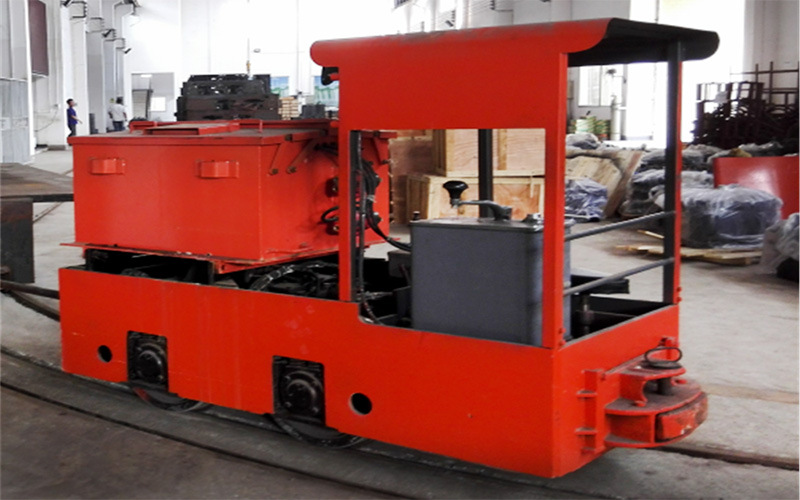

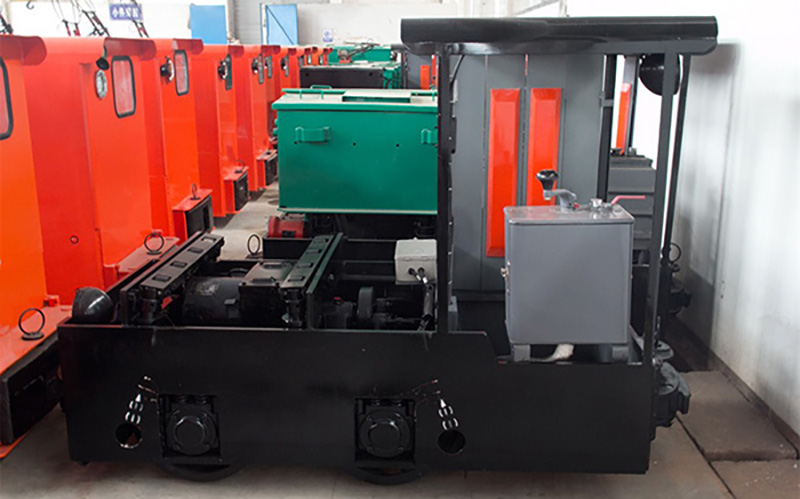

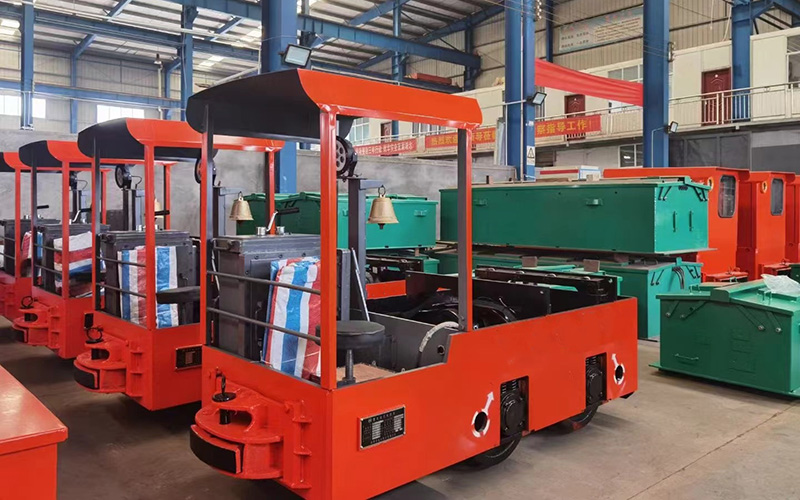

CTY2.5 Battery Electric Locomotive
Advanced 2.5-ton mining locomotive with superior traction and safety features
The CTY2.5 Battery Electric Locomotive is engineered for underground mining operations, delivering exceptional performance, reliability, and safety. With its robust construction and advanced features, this locomotive provides efficient and eco-friendly transportation solutions in the most demanding mining environments.
Product Video
Technical Specifications
Performance
Model CTY2.5
Adhesive Weight 2.5 tons
Traction 2.55KN
Max. Traction 6.13kN
Speed 4.54km/h
Min. Tuning Radius 5m
Power System
Voltage 48V
Capacity 330Ah
Power 3.5kW*1
Controller Resistance or IGBT
Battery 24 pcs series storage lead-acid
Dimensions
Length × Width × Height 2360 × 914 × 1550mm
Wheelbase 650mm
Wheel Diameter Ф460mm
Key Features
Robust Construction
Chassis constructed in welded steel and suspended by spring on grease bearing seats with tapered roller bearings.
Advanced Speed Control
Electronic speed controller for continuous and stepless speed regulation with high reliability.
Safety Systems
Mechanical drum brake to the coupler and mechanical sanding system to the rails for enhanced safety.
Durable Battery Housing
Steel plating construction with interior anti-acid covering for maximum battery protection.
Shock Absorption
Two buffers with spring shock absorbers for complete shock absorption against collision.
