Cast Steel Ball
- High hardness wear resistance
- Cost-effective production solution
- Superior grinding efficiency performance
- Low breakage rate reliability
CAST STEEL BALL
High Chrome Alloy Casting Grinding Media for Mining Industry
Product Overview

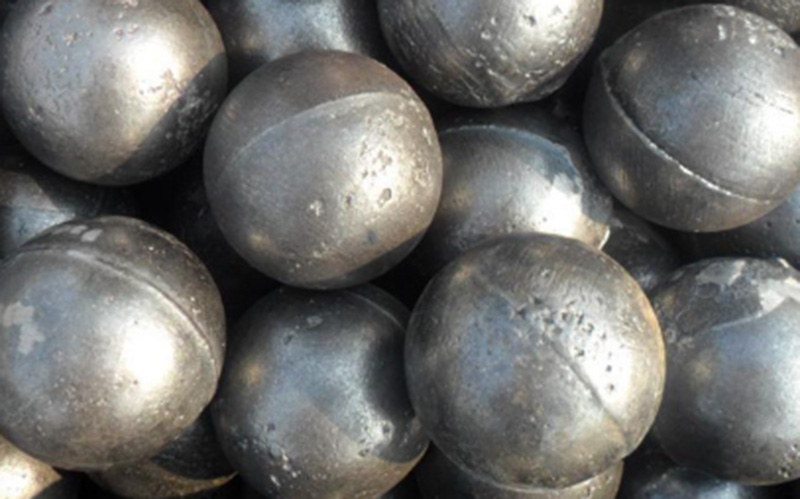

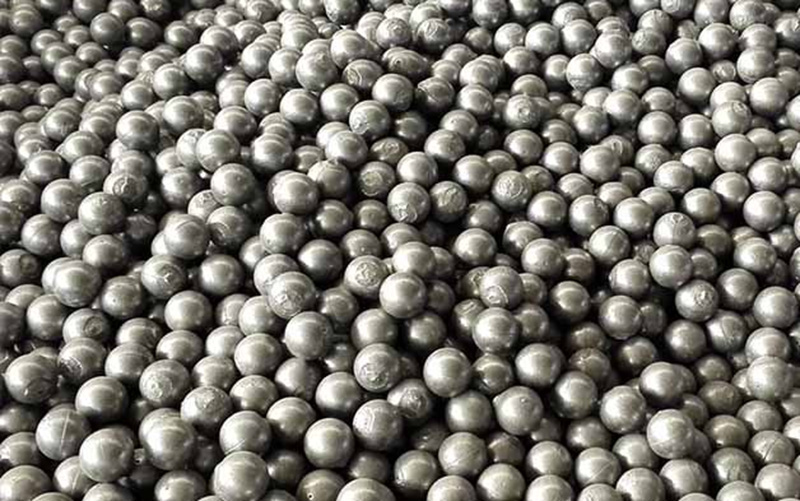

Our high-quality Cast Steel Balls are engineered for superior performance in the most demanding grinding environments. With high wear resistance and minimal breakage, they are the ideal choice for maximizing efficiency in mining operations.
Key Features
High Hardness
Surface hardness up to HRC 56-65 with uniform gradient distribution
Impact Resistance
Impact toughness ≥12J/cm² with breakage rate less than 1%
Non-Deformation
Maintains spherical shape throughout service life without distortion
Corrosion Resistance
Excellent resistance to chemical corrosion in wet grinding applications
Applications
Our Cast Steel Balls are widely used in various industries for grinding and milling operations:
Cement Building Materials Metal Mines Coal Power Plants Chemical Engineering Ceramic Coatings Light Industry Paper Magnetic Materials
Technical Specifications
Available in various chromium compositions to suit different grinding requirements:
| Brand | C | Si | Mn | Cr | Mo | Cu | Ni | P | S |
|---|---|---|---|---|---|---|---|---|---|
| ZQCr26 | 2.0-3.3 | ≤1.2 | 0.3-1.5 | >23.0-30.0 | 0-3.0 | 0-1.2 | 0-1.5 | ≤0.10 | ≤0.06 |
| ZQCr20 | 2.0-3.3 | ≤1.2 | 0.3-1.5 | >18.0-23.0 | 0-3.0 | 0-1.2 | 0-1.5 | ≤0.10 | ≤0.06 |
| ZQCr15 | 2.0-3.3 | ≤1.2 | 0.3-1.5 | >14.0-18.0 | 0-3.0 | 0-1.2 | 0-1.5 | ≤0.10 | ≤0.06 |
| ZQCr12 | 2.0-3.3 | ≤1.2 | 0.3-1.5 | >10.0-14.0 | 0-3.0 | 0-1.2 | 0-1.5 | ≤0.10 | ≤0.06 |
| ZQCr8 | 2.1-3.3 | ≤2.2 | 0.3-1.5 | 7.0-10.0 | 0-1.0 | 0-0.8 | - | ≤0.10 | ≤0.06 |
| ZQCr5 | 2.1-3.3 | ≤1.5 | 0.3-1.5 | 4.0-6.0 | 0-1.0 | 0-0.8 | - | ≤0.10 | ≤0.10 |
| ZQCr2 | 2.1-3.6 | ≤1.5 | 0.3-1.5 | 1.0-3.0 | 0-1.0 | 0-0.8 | - | ≤0.10 | ≤0.10 |
Performance Specifications
Diameter Range
30-130mm
Custom sizes available
Hardness
HRC 45-65
Varies by chromium content
Breakage Rate
< 1%
Extremely low loss rate
Impact Value
≥12 J/cm²
High impact resistance
Packaging & Delivery
Our Cast Steel Balls are packaged in durable iron drums or ton bags to ensure safe transportation. We offer flexible minimum order quantities and worldwide shipping with FOB, CIF, or CFR terms.
