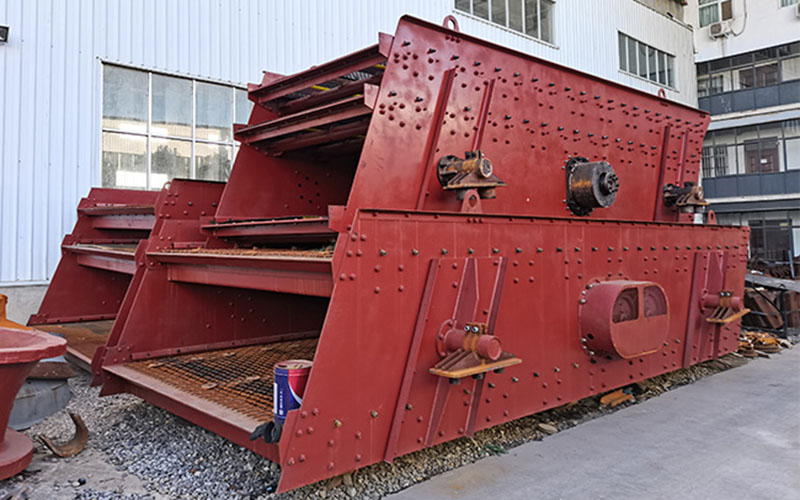

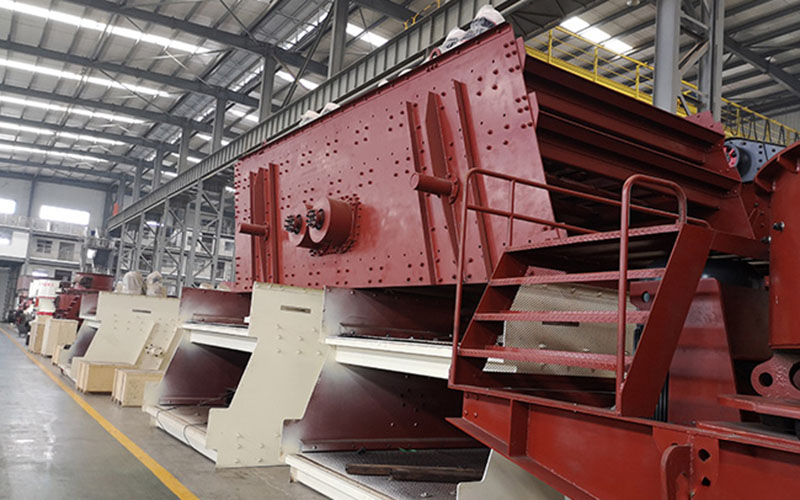

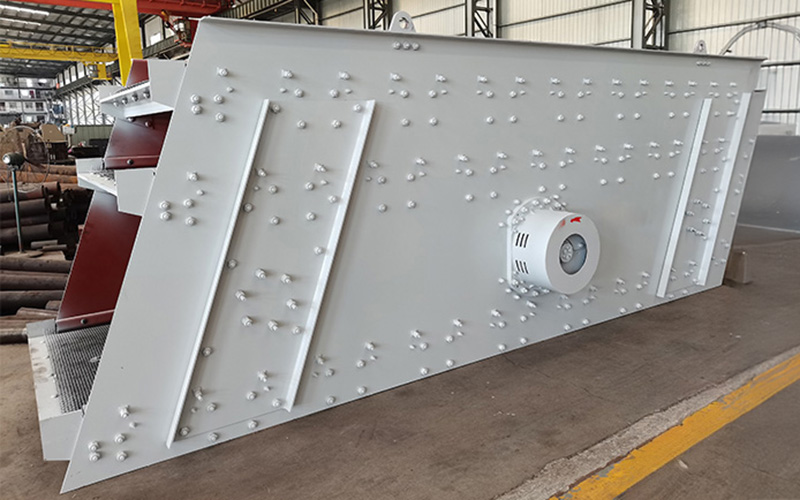

YK Series Circular Vibrating Screen

YK Series Circular Vibrating Screen: High-Efficiency Amplitude-Adjustable Screening for Mining & Aggregates

Product Overview

The YK Series Circular Vibrating Screen is a high-performance, multi-layer screening solution engineered for rigorous material classification in mining, quarrying, and industrial sectors. Its unique circular motion trajectory ensures efficient separation of materials like aggregates, ores, coal, and industrial minerals. With adjustable amplitude and a long screening line, it delivers precise grading, high throughput, and reliable operation in demanding environments.

Key Features & Benefits

1. Amplitude Strength Adjustable

• Customize vibration intensity using a tub-type eccentric shaft and adjustable eccentric blocks to match varying material types and screening requirements.

• Ensures optimal material handling, from fine particles to coarse aggregates.

2. Extended Material Screening Line & Multi-Layer Design

• Long screening trajectory enhances separation accuracy and efficiency.

• Available in 2–4 layers for precise classification into multiple well-defined size fractions.

3. High Screening Efficiency & Throughput

• Combines high frequency, small amplitude, and a large screen inclination angle to maximize processing capacity (30–875 t/h) while reducing energy consumption and noise.

4. Robust & Durable Construction

• High-strength bolts connect the screen beam and body for enhanced structural integrity.

• Reinforced side plates withstand heavy impact and abrasive materials.

5. Wide Application Range

• Ideal for sand, gravel, granite, basalt, iron ore, coal, and recycled construction materials.

• Suitable for aggregates, mining, cement, power generation, metallurgy, and chemical industries.

Technical Specifications

• Capacity: 30–875 t/h

• Max. Feed Size: ≤450 mm

• Screen Layers: 1–4 layers

• Applications:

• Stone quarries and sand grading

• Coal and mineral processing

• Construction, railway, and highway projects

• Metallurgy, chemicals, and industrial material classification

How It Works

The YK Circular Vibrating Screen is driven by an electric motor coupled with an eccentric block. This generates a circular vibrating motion that propels materials across the screen surface. Particles smaller than the mesh size fall through each layer, while larger materials are discharged from the end. The system includes a vibration source, screen body, mesh, damping device, and base for stable, low-maintenance operation.

Why Choose YK Circular Vibrating Screen?

• ✅ Adjustable amplitude for flexible operation

• ✅ Multi-layer screening with sharp size separation

• ✅ High efficiency, large capacity, and low power consumption

• ✅ Durable, impact-resistant design

• ✅ Trusted in mining, aggregates, and industrial sectors worldwide

Ideal For

• Sand and gravel plants

• Iron ore, coal, and mineral processing

• Construction aggregates and asphalt concrete production

• Chemical, power, and building materials industries

For competitive pricing and personalized quotes, please feel free to contact our sales team—we're ready to help you find the perfect screening solution.
