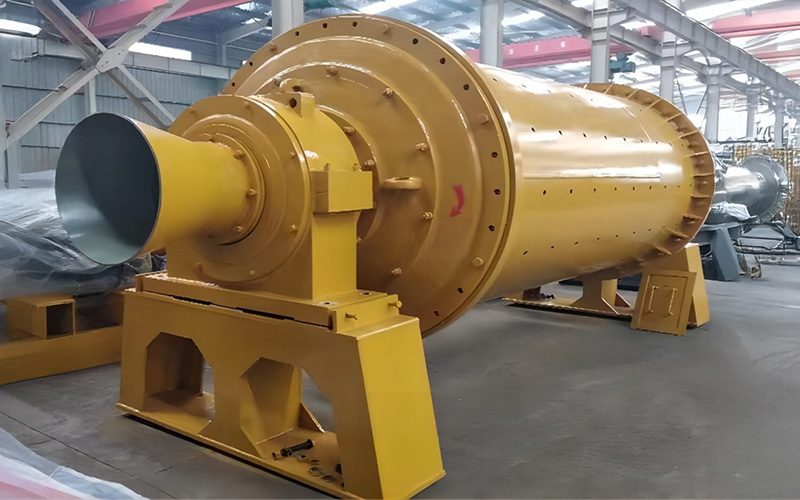

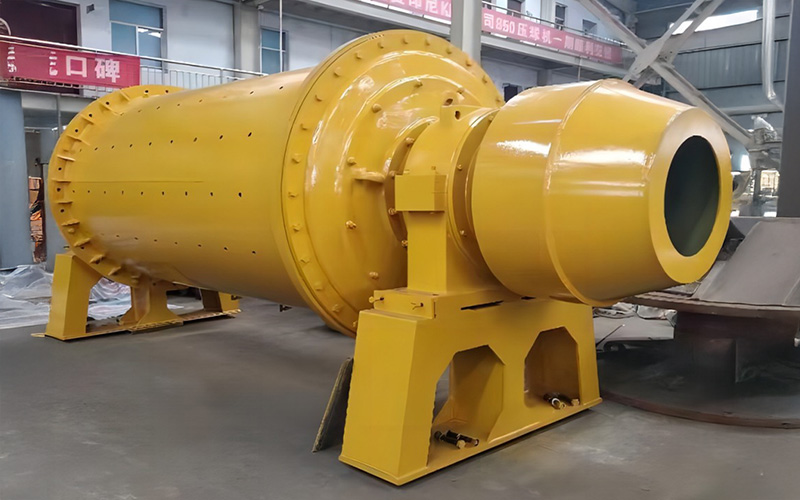

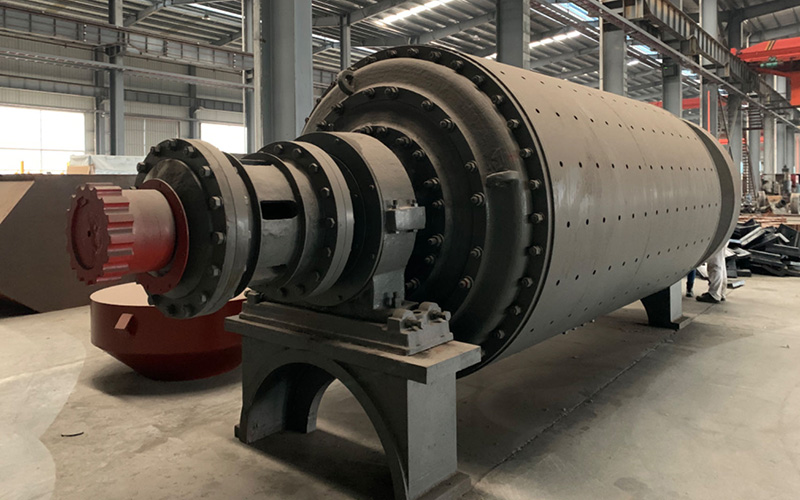

MQS Series Wet Grid Ball Mill

Grid Discharge System
Wet Grinding Specialized
Corrosion Resistant Design
Enhanced Slurry Management

MQS Series Wet Grid Ball Mill - Industrial Grinding Equipment

MQS Series Wet Grid Ball Mill

Specialized wet grinding solution for mineral processing applications

Product Overview

The MQS Series Wet Grid Ball Mill is engineered specifically for wet grinding operations in mineral processing plants. This specialized equipment features a grid discharge system that efficiently handles slurry materials, making it ideal for ore beneficiation, metal concentration, and industrial mineral processing applications.

Processing Capacity

2.0 - 353 t/h

Max Feeding Size

≤ 25mm

Operation Mode

Wet Grinding Specialized

Applications

Mineral Processing & Ore

Key Features

Grid Discharge System

Specialized grid design ensures efficient slurry discharge and prevents overgrinding in wet processing applications.

Optimized Wet Grinding

Specifically engineered for wet grinding operations with enhanced slurry handling capabilities and processing efficiency.

Corrosion Resistance

Advanced material selection and protective coatings ensure durability in wet and corrosive processing environments.

Slurry Management

Superior slurry handling with optimized viscosity control and efficient material flow throughout the grinding process.

Mineral Processing Focus

Designed specifically for mineral beneficiation with features tailored to ore concentration and metal recovery processes.

Enhanced Throughput

Grid discharge mechanism allows for higher processing capacity and improved material flow in wet grinding applications.

Technical Specifications

Model	Feeding Size(mm)	Effective Volume(m³)	Weight(t)	Power(KW)	MQS Balls Weight(t)	Capacity(t/h)
Φ900×1800	≤25	1	4.2	15	2	2-3.7
Φ900×2100	≤25	1.1	4.9	18.5	2.3	2.3-4.3
Φ900×3000	≤25	1.6	7.6	22	3.3	3.3-6.2
Φ1200×2400	≤25	2.4	8.7	30	4.9	5-9.2
Φ1200×3000	≤25	3	13	37	6.2	6.2-12
Φ1200×4500	≤25	4.4	14	45	9.3	9.3-17
Φ1500×3000	≤25	4.8	15	75	10	10-18
Φ1500×4500	≤25	7.1	20	115	15	15-28
Φ1500×5700	≤25	9	24	135	19	19-35
Φ1830×3000	≤25	7.1	28	115	15	15-28
Φ1830×4500	≤25	10.6	32	155	22	22-41
Φ1830×6500	≤25	15.3	35	210	32	32-60
Φ1830×7000	≤25	16.5	37	210	34	35-64
Φ2100×3000	≤25	9.4	42	180	20	20-37
Φ2100×3600	≤25	11.3	48	210	24	24-44
Φ2100×4000	≤25	12.6	50	210	26	26-49
Φ2100×4500	≤25	14.1	52	210	30	30-55
Φ2100×7000	≤25	22	57	280	46	46-86
Φ2200×3600	≤25	12.5	52	210	26	26-49
Φ2200×4500	≤25	15.6	54	245	33	33-61
Φ2200×6500	≤25	22.5	60	320	47	47-88
Φ2200×7000	≤25	24.2	63	320	51	51-95
Φ2200×8000	≤25	27.8	67	380	57	57-104
Φ2400×3600	≤25	15	60	245	31	31-58
Φ2400×4500	≤25	18.7	71	320	39	39-73
Φ2400×6000	≤25	24.9	84	400	52	52-97
Φ2400×7000	≤25	29.1	92	400	61	61-113
Φ2700×3600	≤25	18.8	82	400	39	40-73
Φ2700×4500	≤25	23.5	90	450	49	49-92
Φ2700×6000	≤25	31.4	105	560	66	66-122
Φ2700×7000	≤25	36.6	110	630	77	77-143
Φ3200×4500	≤25	33.5	137	800	70	70-131
Φ3200×6000	≤25	44.7	160	1000	94	94-174
Φ3200×7000	≤25	52.2	185	1250	109	110-203
Φ3600×4500	≤25	42.8	200	1000	90	90-167
Φ3600×6000	≤25	57.1	220	1250	119	120-223
Φ3600×7000	≤25	66.6	245	1400	139	140-260
Φ3600×8000	≤25	76.1	270	1800	159	160-297
Φ3600×9000	≤25	85.6	285	1800	179	180-334
Φ3800×6500	≤25	69.1	277	1400	145	145-270
Φ3800×8500	≤25	90.4	300	1800	189	190-353

Request a Quote

Working Principle

The MQS Wet Grid Ball Mill operates with material entering through the feed inlet into the first grinding compartment. Specially designed grid liners and grinding media work in conjunction to efficiently process slurry materials. The grid discharge system at the mill outlet ensures controlled particle size distribution while preventing overgrinding, making it particularly effective for mineral concentration processes where precise particle size control is crucial for optimal recovery rates.
