MQY Series Overflow Ball Mill

High Capacity Processing
Dry & Wet Grinding
Dust-Free Operation
Robust & Durable Design

MQY Series Overflow Ball Mill - Complete Specifications

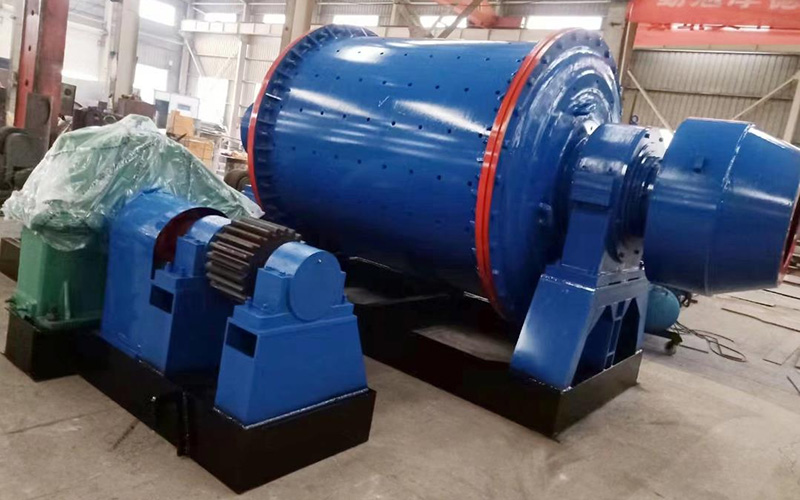

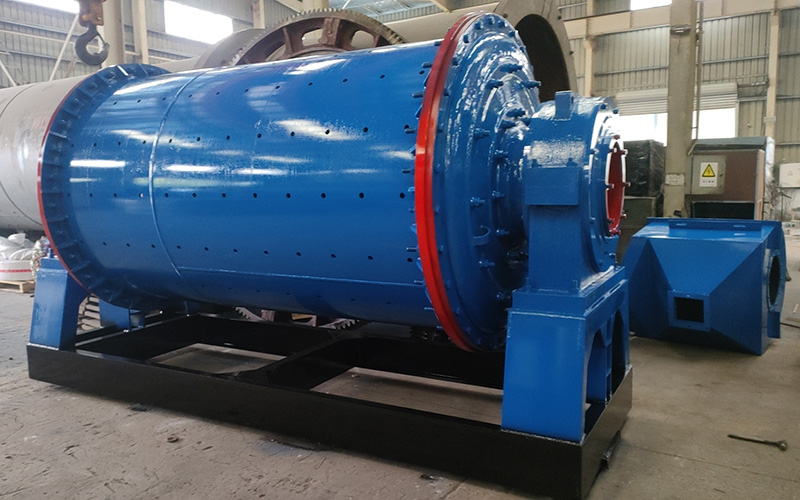

MQY Series Overflow Ball Mill

Advanced grinding solution for mining and industrial applications

Product Overview

The MQY Series Overflow Ball Mill is a critical equipment for material grinding after the crushing process. It is extensively used in various industries including cement production, silicate products, new building materials, refractories, fertilizers, ferrous and non-ferrous metal beneficiation, and glass ceramics.

Processing Capacity

0.65 - 615 t/h

Max Feeding Size

≤ 25mm

Operation Modes

Dry & Wet Grinding

Applications

Ores, Cement, Fertilizers, etc.

Key Features

High Efficiency

Designed for continuous operation with high throughput, meeting demands of large-scale industrial production.

Dual Operation Modes

Supports both dry and wet grinding methods, offering flexibility for diverse production requirements.

Excellent Sealing

Effective sealing system enables negative pressure operation, preventing dust emission for cleaner workplace.

Robust Construction

Simple and solid structure ensures stable operation, reliable performance, and long service life.

Wide Material Compatibility

Capable of processing various ores, cement, fertilizers, silicates, refractories, and more.

Cost-Effective

High cost-performance ratio with economical operation and maintenance requirements.

Technical Specifications

Model	Feeding Size(mm)	Effective Volume(m³)	Weight(t)	Power(KW)	MQY Balls Weight(t)	Capacity(t/h)
Φ900×1800	≤25	1	4.2	15	1.7	1.7-3.2
Φ900×2100	≤25	1.1	4.9	18.5	1.9	2-3.7
Φ900×3000	≤25	1.6	7.6	22	2.8	2.9-5.4
Φ1200×2400	≤25	2.4	8.7	30	4.1	4.3-8
Φ1200×3000	≤25	3	13	37	5.2	5.4-10
Φ1200×4500	≤25	4.4	14	45	7.7	8.1-15
Φ1500×3000	≤25	4.8	15	75	8.3	8.6-16
Φ1500×4500	≤25	7.1	20	115	12	13-24
Φ1500×5700	≤25	9	24	135	16	16-31
Φ1830×3000	≤25	7.1	28	115	12	13-24
Φ1830×4500	≤25	10.6	32	155	18	19-36
Φ1830×6500	≤25	15.3	35	210	27	28-52
Φ1830×7000	≤25	16.5	37	210	29	30-56
Φ2100×3000	≤25	9.4	42	180	16	17-32
Φ2100×3600	≤25	11.3	48	210	20	21-38
Φ2100×4000	≤25	12.6	50	210	22	23-42
Φ2100×4500	≤25	14.1	52	210	25	26-48
Φ2100×7000	≤25	22	57	280	38	40-74
Φ2200×3600	≤25	12.5	52	210	22	23-42
Φ2200×4500	≤25	15.6	54	245	27	28-53
Φ2200×6500	≤25	22.5	60	320	39	41-76
Φ2200×7000	≤25	24.2	63	320	42	44-82
Φ2200×8000	≤25	27.8	67	380	48	49-90
Φ2400×3600	≤25	15	60	245	26	27-51
Φ2400×4500	≤25	18.7	71	320	33	34-63
Φ2400×6000	≤25	24.9	84	400	43	45-84
Φ2400×7000	≤25	29.1	92	400	51	53-98
Φ2700×3600	≤25	18.8	82	400	33	34-64
Φ2700×4500	≤25	23.5	90	450	41	43-80
Φ2700×6000	≤25	31.4	105	560	55	57-106
Φ2700×7000	≤25	36.6	110	630	64	67-124
Φ3200×4500	≤25	33.5	137	800	58	61-113
Φ3200×6000	≤25	44.7	160	1000	78	81-151
Φ3200×7000	≤25	52.2	185	1250	91	95-176
Φ3600×4500	≤25	42.8	200	1000	75	78-145
Φ3600×6000	≤25	57.1	220	1250	100	104-193
Φ3600×7000	≤25	66.6	245	1400	116	121-225
Φ3600×8000	≤25	76.1	270	1800	133	138-257
Φ3600×9000	≤25	85.6	285	1800	149	156-289
Φ3800×6500	≤25	69.1	277	1400	121	126-234
Φ3800×8500	≤25	90.4	300	1800	158	165-306

Request a Quote

Working Principle

Material is uniformly fed into the first grinding chamber through the feeding device and hollow shaft. This chamber contains step or wave liners and steel balls of various sizes. As the cylinder rotates, centrifugal force lifts the balls to a certain height before they cascade down, impacting and grinding the material. After preliminary grinding, material passes into the second chamber for further fine grinding. The final product is discharged through the discharge grate.
