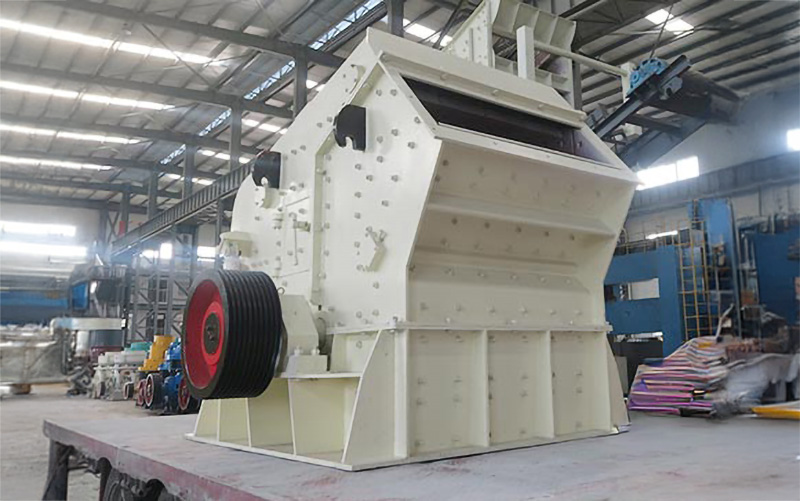

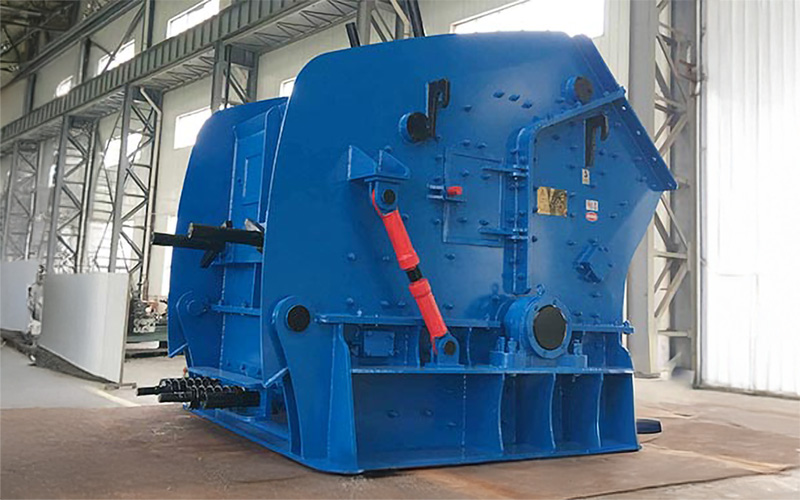

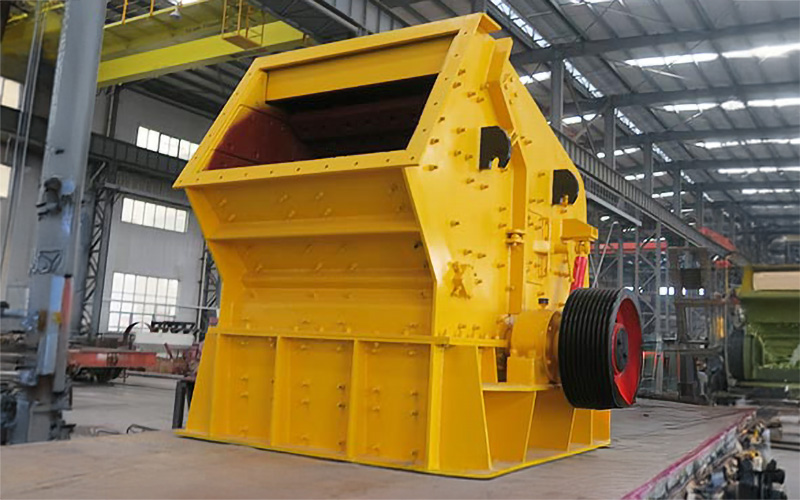

PF Series Impact Crusher
High-Efficiency Crushing Equipment for Multiple Industries
The PF Impact Crusher is a robust and versatile crushing solution engineered for high-performance processing across multiple sectors. With a production capacity range of 15–850 T/H and a maximum feed size of up to 1000 mm, it efficiently handles various materials with exceptional efficiency.
Key Features
Multi-Cavity Uniform Crushing
Ensures consistent performance in hard rock applications, delivering uniform particle size and stable operation.
Optimized Plate Structure
Generates smaller, well-shaped cubic particles with no internal cracks, improving material quality.
Large Low-Profile Feed Inlet
Simplifies production line design and accommodates bulkier materials, enhancing feeding efficiency.
Full Hydraulic Opening System
Enables quick and safe access for maintenance and replacement of wear parts, minimizing downtime.
High-Wear-Resistant Components
Hammers, impact plates, and liners extend service life and reduce long-term operating expenses.
Adjustable Discharge Setting
Allows flexible customization to meet various operational requirements and product specifications.
Applications
Mining Railway Construction Highway Engineering Energy Sector Cement Production Chemical Industry Construction
Suitable Materials
Cobblestone Basalt Iron Ore Granite Limestone Concrete Quicklime Gypsum Slaked Lime
Technical Specifications
| Model | Rotor Spec (mm) | Feed Opening (mm) | Max Feed Edge (mm) | Capacity (t/h) | Motor Power (kw) | Weight (t) | Dimension (L*W*H)mm |
|---|---|---|---|---|---|---|---|
| PF-1007 | 1000×700 | 400×730 | 300 | 30-50 | 37-55 | 9.5 | 2400×1558×2660 |
| PF-1010 | 1000×1050 | 400×1080 | 350 | 50-80 | 55-75 | 12.2 | 2400×2250×2620 |
| PF-1210 | 1250×1050 | 400×1080 | 350 | 70-120 | 110-132 | 14.9 | 2690×2338×2890 |
| PF-1214 | 1250×1400 | 400×1430 | 350 | 110-180 | 132-160 | 18.6 | 2690×2688×2890 |
| PF-1315 | 1320×1500 | 550×1530 | 500 | 160-250 | 180-260 | 21.3 | 3096×3273×2667 |
| PF-1320 | 1320×2000 | 860×2030 | 500 | 160-350 | 300-375 | 28 | 3096×3560×3185 |
| PF-1520 | 1500×2000 | 830×2050 | 700 | 300-500 | 400-450 | 38.6 | 3890×3560×3220 |
| PF-2022 | 2000×2200 | 2360×1350 | 450 | 800-1000 | 710-900 | 83 | 4712×3270×4058 |
