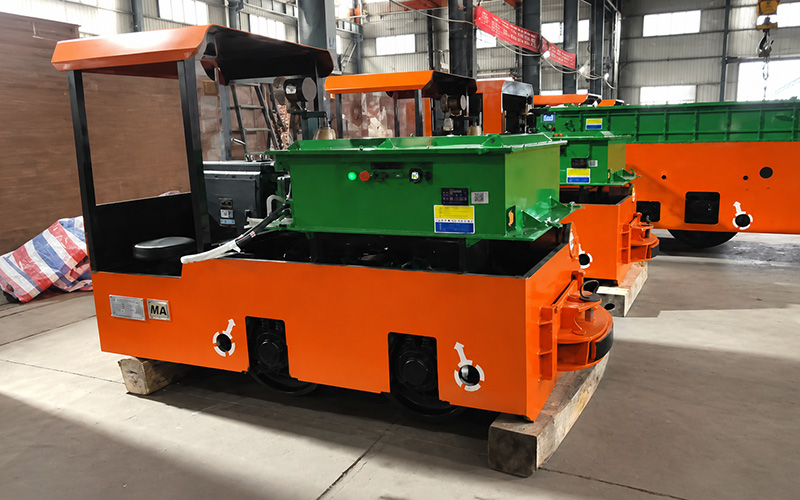

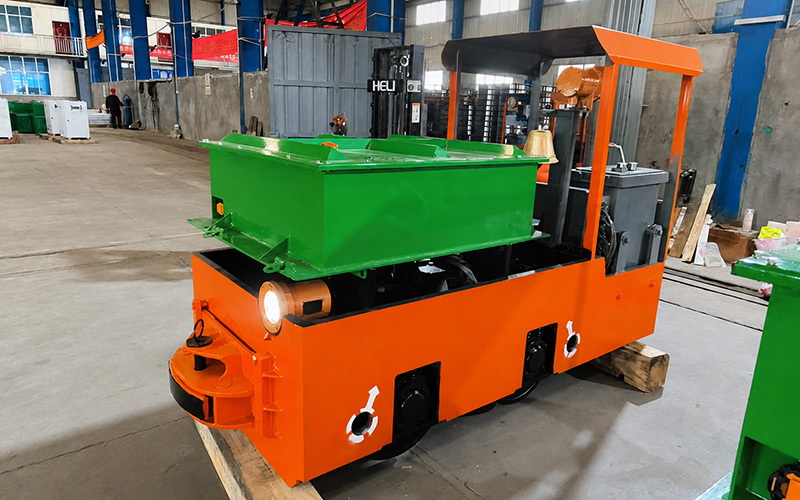

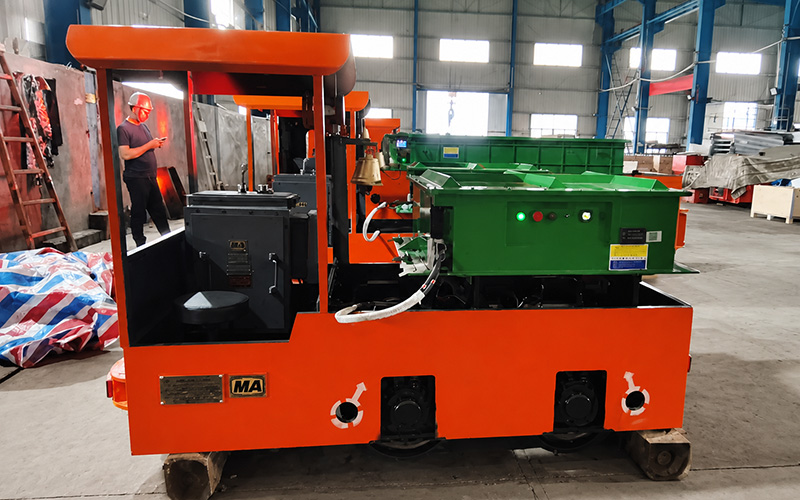

2.5-ton Lithium Battery Mining Locomotive
- Li-Ion Explosion-Proof Power
- Chopper Speed Control System
- 600/762/900mm Adjustable Gauge
- 2.55kN Tractive Effort
The CBY2.5/6, 7, 9GB series is a highly efficient 2.5-ton lithium-ion battery mining locomotive designed for rigorous industrial and mining operations. Built with a robust box-type steel frame and powered by an advanced lithium-ion battery system, it delivers excellent traction and zero emissions for underground transportation.
Equipped with a chopper speed control system, explosion-proof DC traction motor, and a reliable mechanical braking system, this locomotive ensures smooth operation, safety, and energy efficiency. It is perfectly suited for use in environments governed by coal mine safety regulations, operating efficiently at altitudes up to 1000m.
Technical Specifications

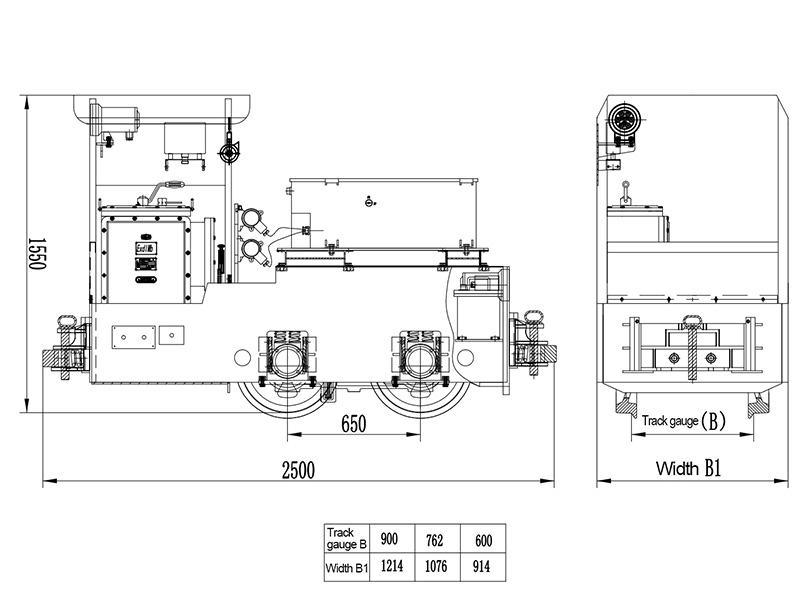

Dimensions & Layout
| Specification | Value | Unit |
|---|---|---|
| Track Gauge | 600 / 762 / 900 | mm |
| Wheelbase | 650 | mm |
| Total Length | 2500 | mm |
| Wheel Rolling Diameter | 460 | mm |
| Height (Rail to Cabin Top) | 1550 | mm |
| Frame Width | 934 / 1096 / 1234 | mm |
| Minimum Curve Radius | 6 | m |
Performance & Electrical Data
| Parameter | Value |
|---|---|
| Adhesion Weight | 2.5 t |
| Hourly Traction Force | 2.55 kN |
| Hourly Speed | 4.54 km/h |
| Maximum Speed | 10 km/h |
| Maximum Traction Force | 6.13 kN |
| Motor Rated Power (Hourly) | 3.5 kW (Model: ZBQ-4, 42V, 105A) |
| Rated Voltage | 51.2 V (DC) |
| Speed Control Method | Chopper Control (Model: ZBT2-140/48) |
| Braking Method | Mechanical Braking |
Frequently Asked Questions
What are the environmental operating conditions for this locomotive?
This locomotive is designed to operate at altitudes not exceeding 1000m. The ambient operating temperature range is between 0°C and +40°C. Additionally, it can withstand a maximum relative humidity of up to 95% (when the average minimum temperature of the wettest month is not greater than 25°C).
What kind of battery and electrical components are used?
It utilizes a general mining lithium-ion battery power source (Model: DXL15360/51.2CA). Key electrical components include an explosion-proof chopper speed controller, an explosion-proof 3.5kW DC traction motor, and explosion-proof LED mining signal lights.
How does the mechanical braking and sanding system work?
The mechanical braking system consists of an operating handle in the cabin and brake shoes on the running gear, allowing the driver to control braking force by applying brake bands to the brake drum. The locomotive also features a sanding system to improve the adhesion coefficient; by pulling a handle, sand flows directly between the wheels and rails to prevent slipping.
What type of transmission and lubrication does the running gear use?
The locomotive uses a two-stage reduction gear (cylindrical and bevel gears) housed in a cast steel reduction box. It utilizes a splash lubrication method, requiring 3kg of general gear oil in the gearbox.
