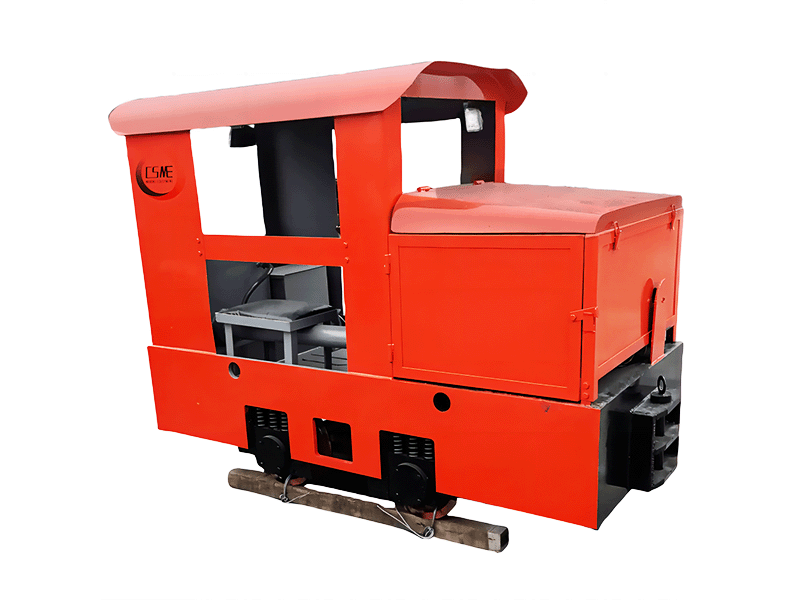

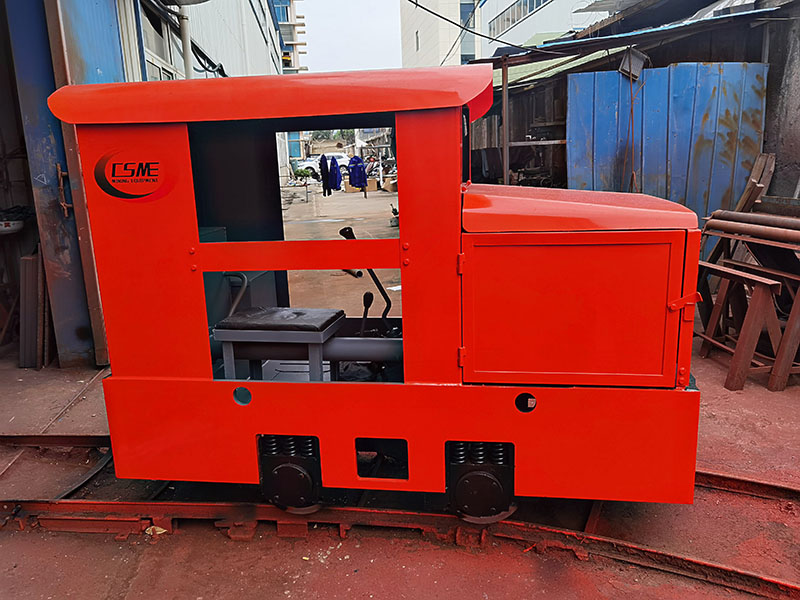

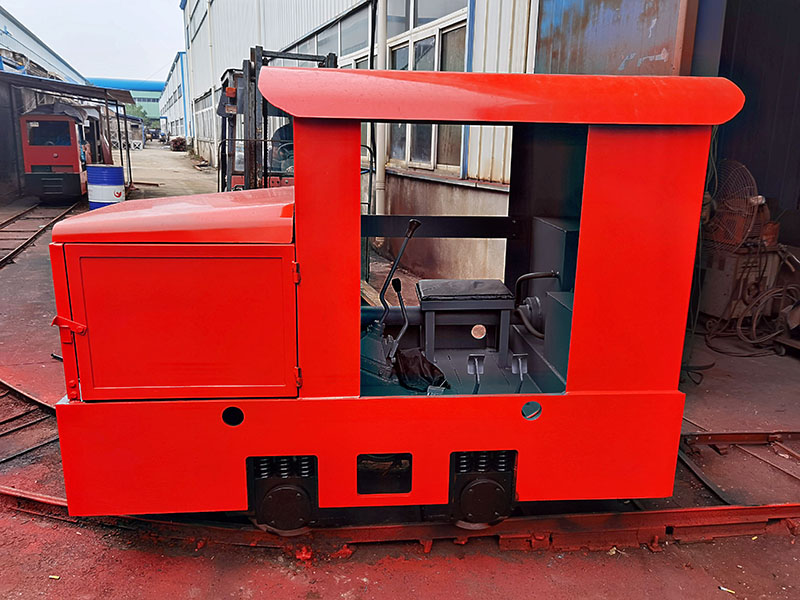

CCG2.5 Diesel Locomotive
- Application Scope: Explosive Hazard Zones
- Main Features: Simplified Operational Design
- High Transport Efficiency
- Eco-Friendly Exhaust Purification
CCG2.5 Diesel Mining Locomotive
Compact & Versatile 2.5-Ton Solution for Underground Mining
Overview
The CCG2.5 Diesel Mining Locomotive is a compact and highly versatile 2.5-ton solution designed for efficient transportation in confined underground environments, including areas with gas and coal dust hazards. Its small footprint and minimal turning radius allow for exceptional maneuverability in tight spaces, making it ideal for auxiliary transport, material supply, and personnel carriage in various mining and tunneling scenarios.
Key Features
Robust & Simple Design
Engineered for reliability with straightforward mechanical structure, ensuring easy operation and low maintenance costs.
Safe for Hazardous Areas
Equipped with certified flameproof diesel engine and advanced exhaust gas purification system.
High Maneuverability
Features a very small turning radius for excellent agility in sharp curves and narrow tunnels.
Proven Braking Safety
Reliable mechanical braking system guarantees short stopping distance for enhanced operational safety.
Technical Specifications
| Model | CCG2.5 |
| Dimension (L×W×H) | 2550 × 950 × 1550 mm |
| Cohesive Weight | 2.5 Ton |
| Traction | 3.8 KN |
| Loading Capacity | 15 ton (slope ≤ 5%) |
| Max. Speed with No Load | 10.3 km/h |
| Rated Motor Power | 11 KW |
| Min. Curve Radius | 5 m |
| Braking Type | Mechanical Type |
| Braking Distance | ≤ 10 m |
| Noise | ≤ 90 dB |
| Gear System | Forward, Backwards, Running Gearing Setting |
