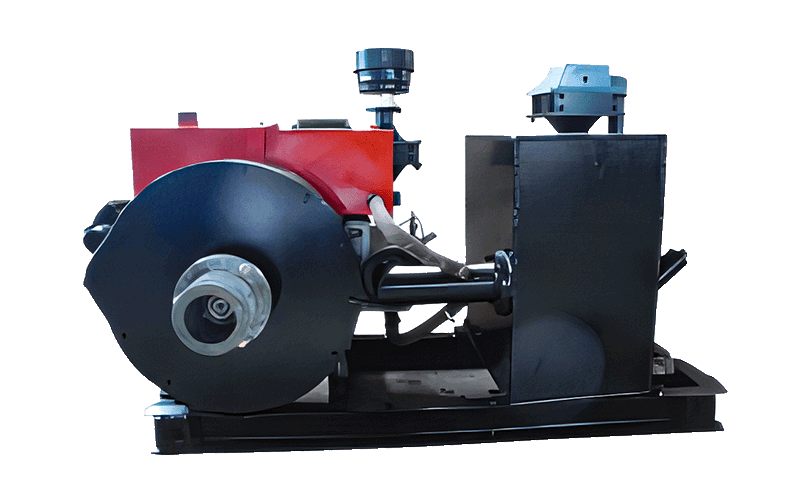

CCG3 Diesel Locomotive

Application Scope: Explosive Hazard Zones
Main Features: Simplified Operational Design
High Transport Efficiency
Eco-Friendly Exhaust Purification

CCG3 Diesel Mining Locomotive | Mining Equipment

CCG3 Diesel Mining Locomotive

Reliable and Efficient Underground Transport Solution

NEW MODEL

Product Overview

The CCG3 Diesel Mining Locomotive is a robust 3-ton solution engineered for versatile material haulage in confined underground environments, including gas and coal dust hazard areas. Its compact design and minimal turning radius provide exceptional maneuverability through tight tunnels and sharp curves, making it ideal for auxiliary transport, supply logistics, and personnel carriage in various mining and tunneling operations.

This locomotive delivers dependable performance with a mechanical gear system offering forward, backward, and running settings for simple, intuitive control. The CCG3 is designed to maximize productivity with low operational costs and minimal maintenance requirements.

Key Features

Enhanced Traction Power

Delivers 4.5 kN of traction, enabling a substantial 20-ton loading capacity on gradients, ensuring high transport efficiency.

Hazard Zone Certification

Equipped with a flameproof diesel engine and advanced exhaust purification system for safe operation in explosive atmospheres.

Superior Maneuverability

Compact chassis with a minimal 5-meter curve radius allows easy navigation in restricted underground spaces.

Proven Safety & Reliability

Features a dependable mechanical brake system and robust design for long-term reliability with low maintenance.

Technical Specifications

Model	CCG3
Dimension (LxWxH)	2550x950x1550mm
Track Gauge	600/762/900 mm
Cohesive Weight	3 Ton
Traction	4.5 KN
Loading Capacity	20 ton (slope≤5%)
Max. Speed with No Load	10.3 km/h
Rated Motor Power	12KW
Min. Curve Radius	5m
Braking Type	Mechanical Type
Braking Distance	≤10m
Noise	≤90
Gear System	Forward, Backwards, Running Gearing Setting
