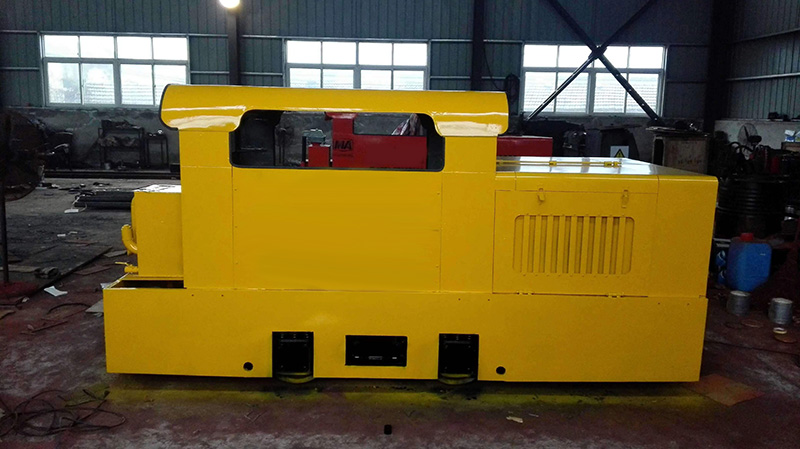

CCG5 Diesel Locomotive with Double Cylinder
- Main Features: Simplified Operational Design
- High Transport Efficiency
- Eco-Friendly Exhaust Purification
- Dual Brake & Sand System
CCG5 Diesel Mining Locomotive
Double Cylinder | Enhanced Power for Demanding Operations
Certified for Heavy-Duty Operations
Product Overview
The CCG5 (Double Cylinder) Diesel Mining Locomotive represents a significant upgrade in performance, delivering superior haulage capability for the most demanding underground environments. This enhanced model generates substantially greater traction power, enabling it to handle significantly heavier loads with exceptional efficiency on challenging gradients.
Its robust double-cylinder design provides the reliable muscle needed for continuous material transport in confined mining tunnels. Engineered for both power and precision, this locomotive maintains excellent maneuverability through tight spaces and sharp curves, while its advanced exhaust purification system ensures clean, safe operation even in gas-prone hazardous areas.
Enhanced Performance: The combination of increased power and compact dimensions makes it an incredibly versatile performer for heavy-duty logistics.
Key Features
Superior Tractive Power
Enhanced double-cylinder configuration delivers stronger pulling capability for heavy-load operations.
Expanded Payload Capacity
Designed to handle substantially larger loads on inclined pathways.
Certified Hazardous Area Operation
Integrated exhaust treatment system ensures safe performance in explosive atmospheres.
Optimized Space Efficiency
Compact footprint with excellent turning capability for navigating restricted underground layouts.
Technical Specifications
| Model | CCG5 (Double Cylinder) |
| Dimension (L×W×H) | 3400 × 1000 × 1550 mm |
| Track Gauge | 600 / 762 / 900 mm |
| Cohesive Weight | 5 Ton |
| Traction | 7.2 KN |
| Loading Capacity | 40 ton (slope ≤ 5%) |
| Max. Speed with No Load | 10.3 km/h |
| Rated Motor Power | 18 KW |
| Min. Curve Radius | 6 m |
| Braking Type | Mechanical Type |
| Braking Distance | ≤ 10 m |
| Noise | ≤ 90 dB |
| Gear System | Forward, Backwards, Running Gearing Setting |
