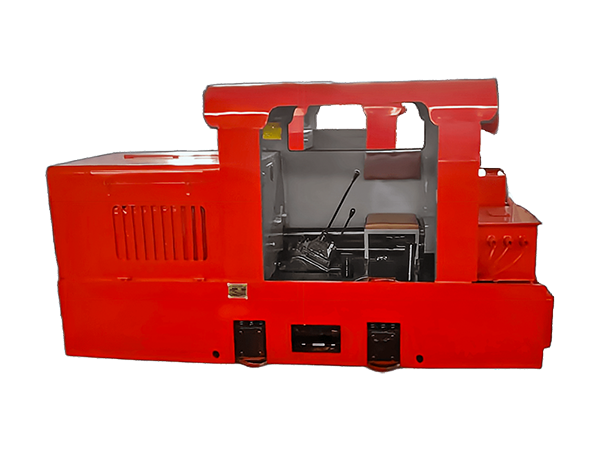

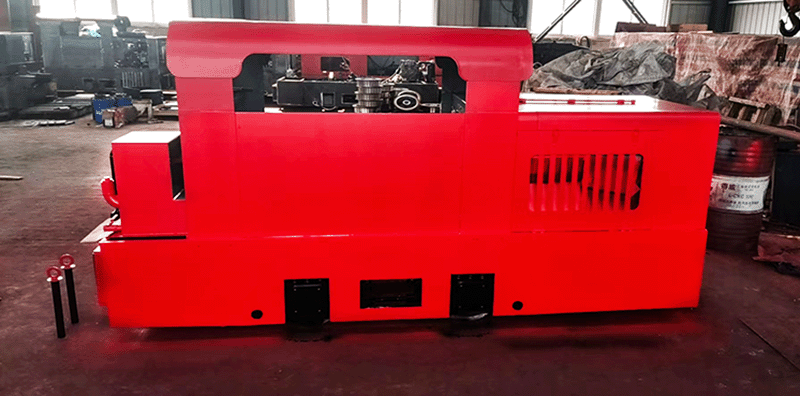

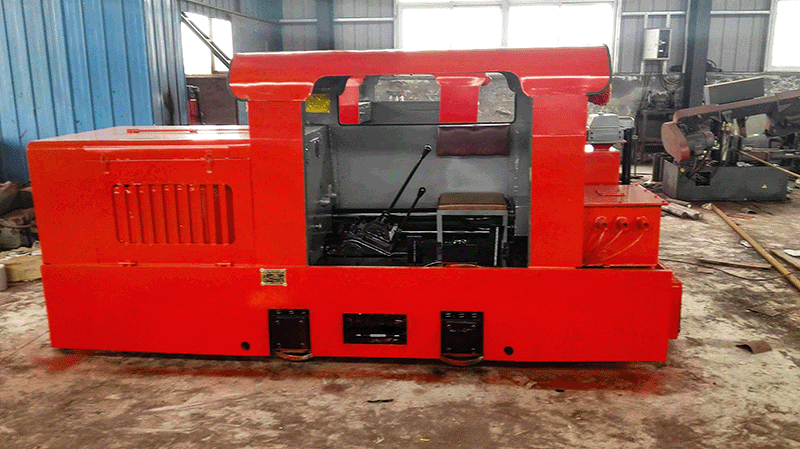

CCG5 Diesel Locomotive with Single Cylinder

CCG5 Diesel Locomotive with Single Cylinder

Application Scope: Explosive Hazard Zones
Main Features: Simplified Operational Design
High Transport Efficiency
Eco-Friendly Exhaust Purification

CCG5 Diesel Mining Locomotive with Single Cylinder | Mining Equipment

CCG5 Diesel Mining Locomotive

Single Cylinder | Underground Haulage Solution

Certified for Hazardous Environments

Product Overview

The CCG5 (Single Cylinder) Diesel Mining Locomotive is a robust and versatile haulage solution engineered for challenging underground environments. This compact workhorse delivers exceptional performance in confined spaces where larger equipment cannot operate.

Built with a focus on durability and operational simplicity, the CCG5 combines raw pulling power with outstanding maneuverability. Its specially designed exhaust treatment system ensures clean operation by effectively eliminating harmful emissions, creating a safer working atmosphere for personnel.

Ideal for: Transporting materials through narrow tunnels and sharp curves in hazardous areas, including gas-prone coal mines.

Key Features

Certified Safe Operation

Engineered with advanced explosion-proof technology for reliable performance in hazardous mining environments.

Eco-Friendly Performance

Features an efficient exhaust purification system that eliminates smoke and dust emissions.

Superior Maneuverability

Compact design with excellent turning capability for navigating tight underground spaces.

Low Maintenance Design

Simple mechanical structure ensures reliable operation with minimal maintenance needs.

Technical Specifications

Model	CCG5 (Single Cylinder)
Dimension (L×W×H)	3100 × 1000 × 1550 mm
Track Gauge	600 / 762 / 900 mm
Cohesive Weight	5 Ton
Traction	6.5 KN
Loading Capacity	30 ton (slope ≤ 5%)
Max. Speed with No Load	10.3 km/h
Rated Motor Power	13 KW
Min. Curve Radius	6 m
Braking Type	Mechanical Type
Braking Distance	≤ 10 m
Noise	≤ 90 dB
Gear System	Forward, Backwards, Running Gearing Setting
