CJY1.5 Electric Trolley Locomotive with 6.5kW motor
- Chassis: Welded Steel Spring Suspension
- Speed control: High-Reliability ESC Control
- Brakes: Mechanical Coupler Brake
- Sanders: Mechanical Rail Sanders
- Buffers: Spring Shock Absorber Buffers

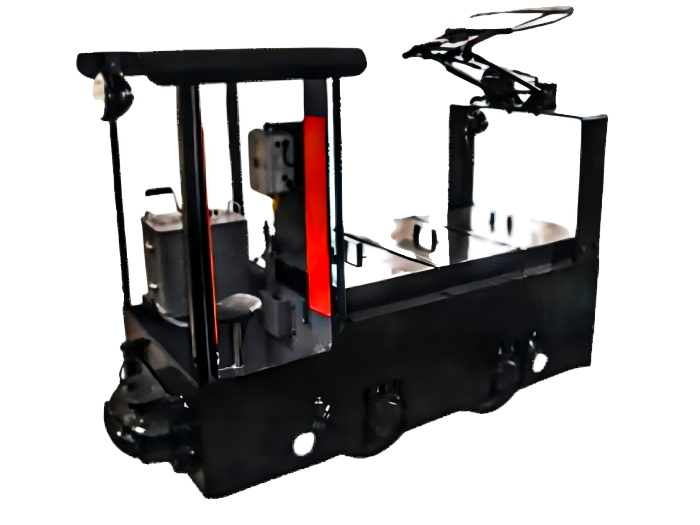

CJY1.5 ELECTRIC TROLLEY LOCOMOTIVE
Model: CJY1.5
6.5kW Motor
The CJY1.5 Electric Trolley Locomotive with 6.5kW motor delivers superior performance for underground mining operations. Designed for heavy-duty material transport, this locomotive features enhanced power and speed capabilities while maintaining the reliability and durability expected from professional mining equipment.
Performance Upgrade
Power
3.5kW → 6.5kW
Speed
4.54km/h → 6.6km/h
Traction
2.55kN → 3.24kN
Voltage
250V Only
Key Features
Robust Frame Construction
Constructed in welded steel and suspended by spring on grease bearing seats with tapered roller bearings for enhanced durability and vibration absorption.
Advanced Speed Control
Electronic speed controller provides continuous and stepless speed regulation with high reliability for precise operation in variable conditions.
Reliable Braking System
Equipped with a mechanical drum brake to the coupler, ensuring responsive and reliable stopping power in critical situations.
Enhanced Traction System
Mechanical sanding system to the rails enhances traction on slippery or inclined surfaces, maintaining operational efficiency in challenging conditions.
Impact Protection
Two buffers with spring shock absorbers achieve complete shock absorption against collisions, protecting both equipment and operators.
Dual Controller Options

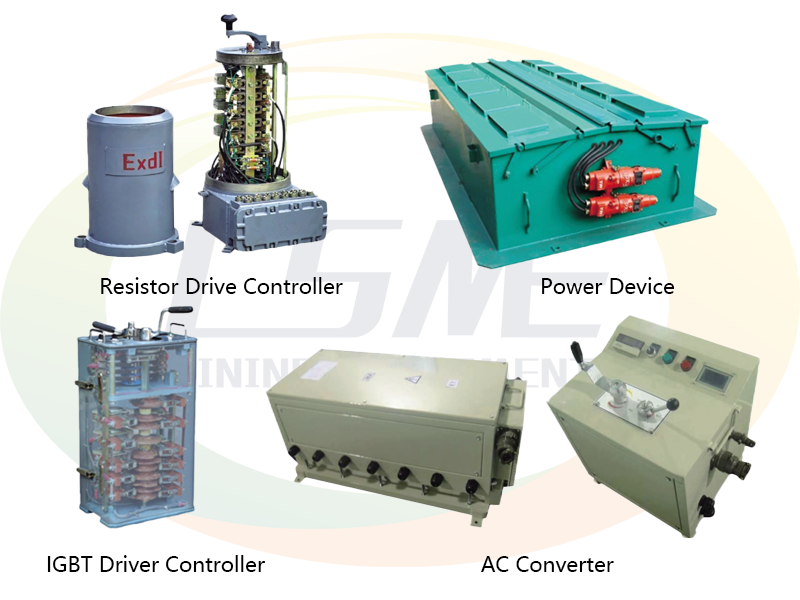

Available with resistance or IGBT controller options, providing flexibility for different operational requirements and power conditions.
Technical Specifications
1.5 tons
Adhesive Weight
6.5kW
Power
6.6 km/h
Speed
3.68kN
Max. Traction
| Detailed Specifications | |
|---|---|
| Model | CJY1.5 |
| Adhesive Weight | 1.5 tons |
| Track Gauge | 600, 762 or 900mm |
| Traction | 2.55kN | 3.24kN |
| Max. Traction | 3.68kN |
| Speed | 6.6km/h |
| DC Voltage | 250V |
| Power | 6.5kW * 1 |
| Length | 2370mm |
| Width | 950, 1076 or 1100mm |
| Height | 1550mm |
| Wheelbase | 650mm |
| Wheel Diameter | Φ460mm |
| Pantograph | 1800~2000mm |
| Min. Turning Radius | 5m |
| Controller | Resistance or IGBT |
| Brake Model | Mechanical Brake |
