CJY10 Electric Trolley Locomotive
- Chassis : Welded Steel Leaf-Spring Chassis & Tapered Bearing Suspension
- Speed control : Step less Electronic Speed Controller & AC Converter-Driven Regulation
- AC motor : Brush less 3-Phase Motors
- Brakes : Pneumatic/Manual Braking System
- Sanders : Rail Sanding Pneumatic
- Buffers and motor suspension : Spring-Damped Buffers & Spring-Braced Motor Mount

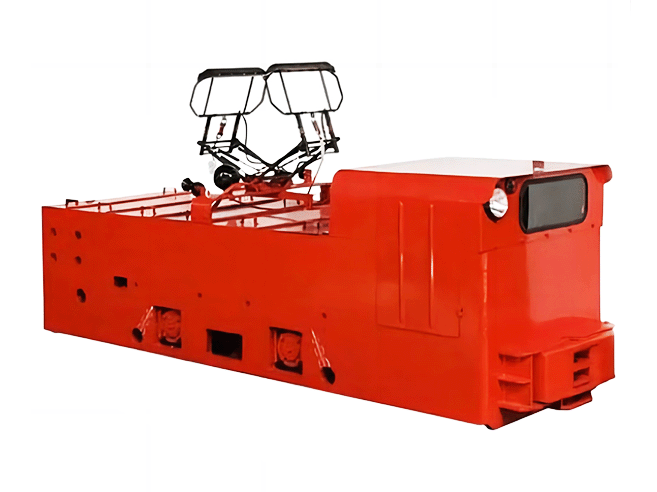

CJY10 Electric Trolley Mining Locomotive
10-Ton Heavy-Duty Underground Transport Solution
Product Overview
The CJY10 Electric Trolley Mining Locomotive is a robust 10-ton workhorse engineered for demanding underground mining operations. Designed to deliver superior traction power, it efficiently hauls heavy loads of coal, ore, and supplies through main transportation tunnels.
By utilizing clean overhead line power, the CJY10 provides continuous operation without the emissions of diesel locomotives or the downtime required for battery charging. This results in enhanced productivity and a significantly improved underground environment.
Technical Specifications
| Model | CJY10 |
|---|---|
| Adhesive Weight | 10 tons |
| Track Gauge | 600, 762 or 900mm |
| Traction | 13.05kN | 18.93kN |
| Max. Traction | 24.5kN |
| Speed | 11km/h | 10.5km/h |
| DC Voltage | 250V | 550V |
| Power | 21kW*2 | 24kW*2 |
| Dimensions (L×W×H) | 4456mm × 1054/1212/1350mm × 1550mm |
| Wheelbase | 1100mm | 1220mm |
| Wheel Diameter | Φ680mm |
| Pantograph | 1800~2200mm |
| Min. Turning Radius | 7m | 10m |

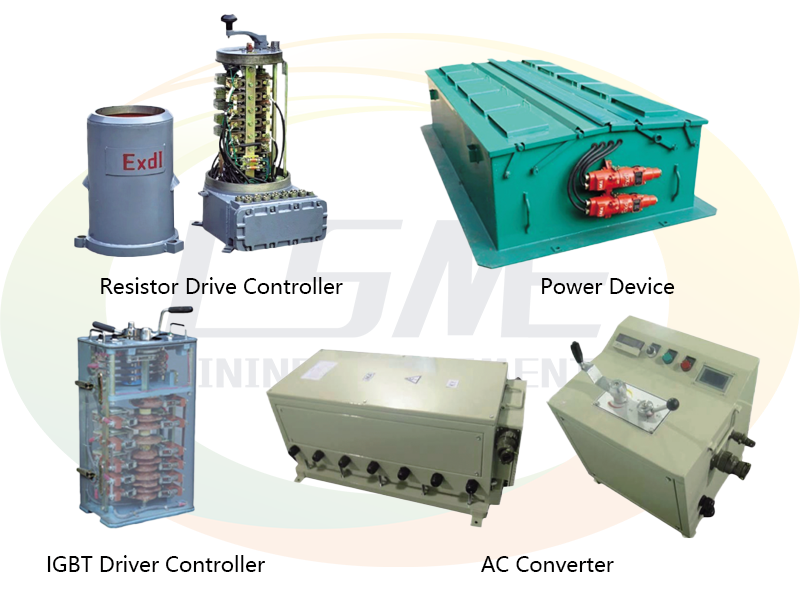

| Controller | Resistance, IGBT or AC converter |
| Brake Model | Mechanical Brake and Pneumatic Brake |
Key Features
Robust Frame Construction
Welded steel frame suspended by leaf spring or rubber studs on grease bearing seats with tapered roller bearings.
Advanced Speed Control
Electronic speed controller with high reliability for continuous and stepless speed regulation.
Efficient AC Motor
3-phase AC motors without carbon brushes or quick-wear parts for enhanced durability.
Dual Cab Design
Double cabs provide better field of vision for operators, enhancing safety and operational efficiency.
Reliable Braking System
Pneumatic brake to all four wheels with manual mechanical brake for enhanced safety.
Shock Absorption
Buffers with spring shock absorbers and spring-braced motor suspension for complete shock absorption.
