CJY3 Electric Trolley Locomotive with 12kW motor
- Chassis: Welded Steel Spring Suspension
- Speed control: High-Reliability ESC Control
- Brakes: Mechanical Coupler Brake
- Sanders: Mechanical Rail Sanders
- Buffers: Spring Shock Absorber Buffers

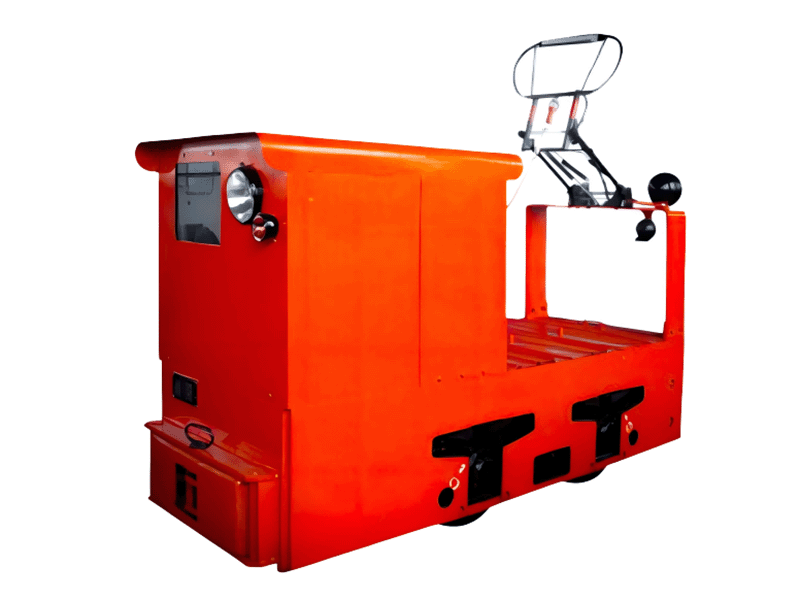

CJY3 Electric Trolley Mining Locomotive
With 12kW Motor for Efficient Mining Operations
Model: CJY3
Product Overview
The CJY3 Electric Trolley Mining Locomotive is engineered for reliable performance in demanding mining environments. With its robust construction and advanced control systems, it delivers exceptional traction and operational efficiency.
Key Features
Durable Frame Construction
Constructed in welded steel and suspended by leaf spring on grease bearing seats with tapered roller bearings for enhanced durability and stability.
Advanced Speed Control
Features an electronic speed controller with high reliability for continuous and stepless speed regulation, ensuring smooth operation.
Reliable Braking System
Equipped with mechanical brakes to the four wheels by brake shoes for secure and responsive stopping power.
Pneumatic Sanding System
Includes a pneumatic sanding system to the rails for improved traction in various conditions.
Shock Absorption
The locomotive has two buffers with spring shock absorbers to achieve complete shock absorption against collisions. The motor is suspended from the chassis by a spring brace for additional protection.
Power & Performance
With a powerful 12kW motor and 250V DC power system, the CJY3 delivers 6.1kN traction (7.36kN maximum) at speeds up to 10.6km/h, making it ideal for various mining applications.
Technical Specifications
Adhesive Weight
3 tons
Track Gauge
600, 762 or 900mm
Traction
6.1kN
Max. Traction
7.36kN
Speed
10.6km/h
DC Voltage
250V
Power
12kW × 1
Length
2700mm
Width
940, 1082 or 1220mm
Height
1550mm
Wheelbase
816mm
Wheel Diameter
Ø650mm
Pantograph
1800~2000mm
Min. Turning Radius
5.7m

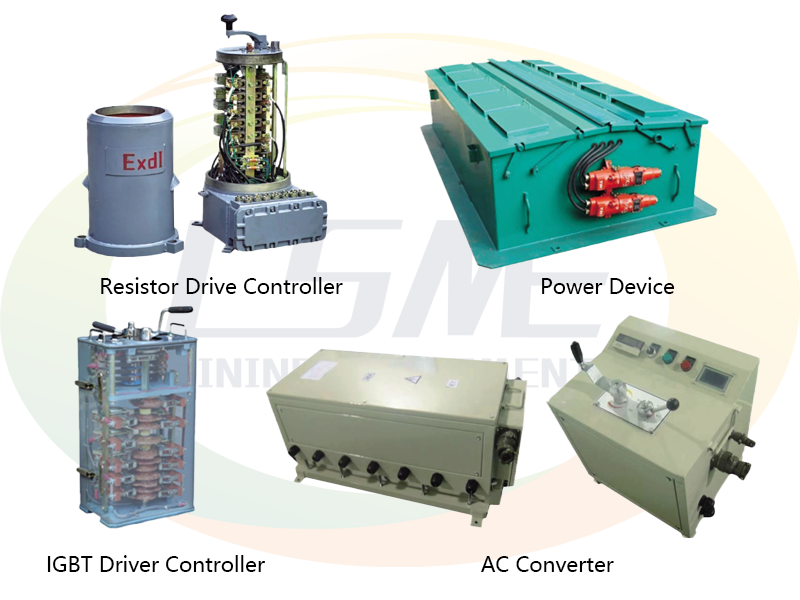

Controller
Resistance or IGBT
Brake Model
Mechanical Brake
