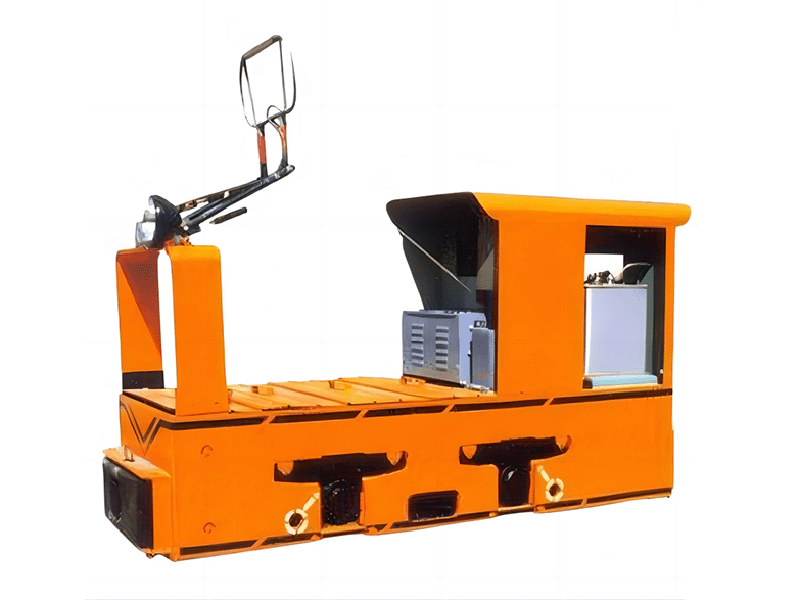

CJY3 Electric Trolley Locomotive with 6.5kW motor
- Chassis: Welded Steel Spring Suspension
- Speed control: High-Reliability ESC Control
- Brakes: Mechanical Coupler Brake
- Sanders: Mechanical Rail Sanders
- Buffers: Spring Shock Absorber Buffers
CJY3 ELECTRIC TROLLEY LOCOMOTIVE
Model: CJY3
Robust and Efficient Mining Locomotive for Underground Operations
Product Overview
The CJY3 Electric Trolley Locomotive is engineered for optimal performance in demanding mining environments. With its 6.5kW dual motor system and robust construction, this locomotive delivers reliable power and exceptional durability for underground transportation needs.
Designed for efficiency and safety, the CJY3 features advanced speed control, reliable braking systems, and a sturdy frame that withstands the toughest mining conditions. Its adaptable design accommodates various track gauges, making it suitable for diverse mining operations worldwide.
Key Features
Robust Frame Construction
Constructed in welded steel and suspended by leaf spring on grease bearing seats with tapered roller bearings for superior durability and shock absorption.
Advanced Speed Control
Electronic speed controller with high reliability enables continuous and stepless speed regulation for precise operation.
Reliable Braking System
Mechanical brake to the four wheels by brake shoes ensures safe and efficient stopping power in all conditions.
Enhanced Traction
Pneumatic sanding system to the rails provides additional traction when navigating steep inclines or slippery surfaces.
Shock Absorption
Two buffers with spring shock absorbers achieve complete shock absorption against collisions. The motor is suspended from the chassis by a spring brace for added protection.
Flexible Configuration

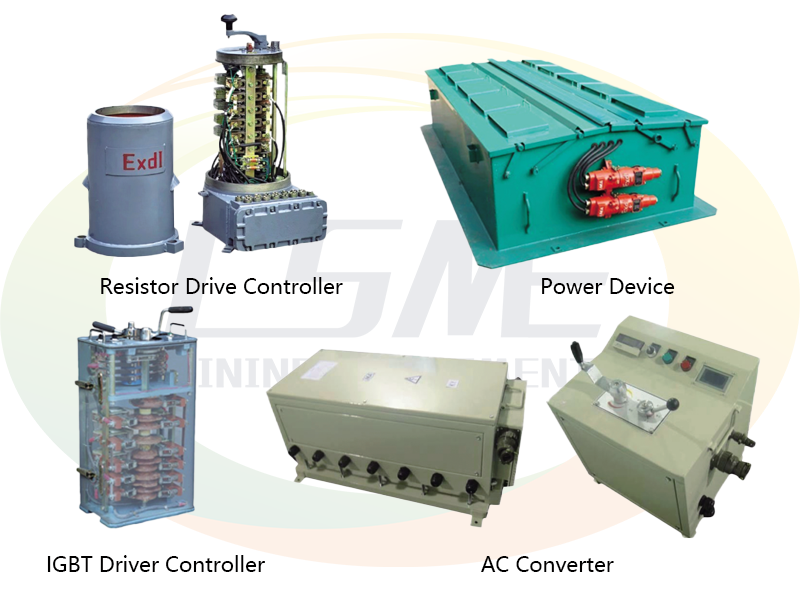

Available with resistance or IGBT controller options to meet specific operational requirements and preferences.
Technical Specifications
Adhesive Weight 3 tons
Track Gauge 600, 762 or 900mm
Traction 5.74kN
Max. Traction 7.36kN
Speed 7.5km/h
DC Voltage 250V
Power 6.5kW × 2
Brake Model Mechanical Brake
Length 2750mm
Width 940, 1082 or 1220mm
Height 1550mm
Wheelbase 850mm
Wheel Diameter Φ520mm
Pantograph Height 1800~2000mm
Min. Tuning Radius 6m
Controller Options Resistance or IGBT
