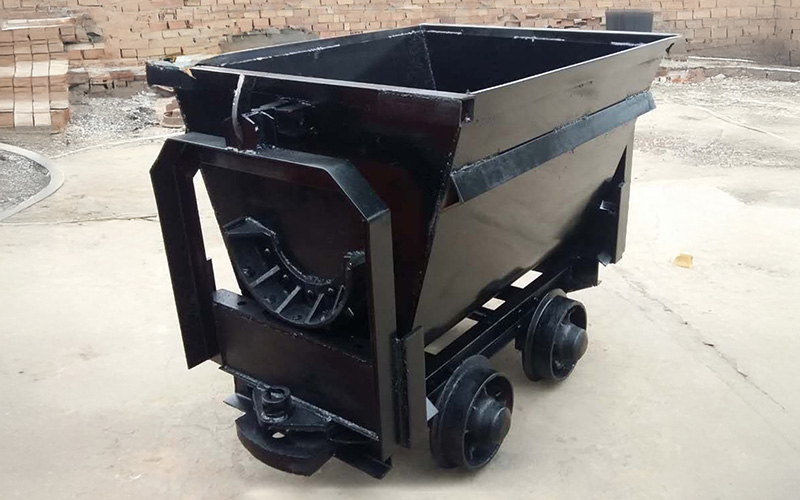

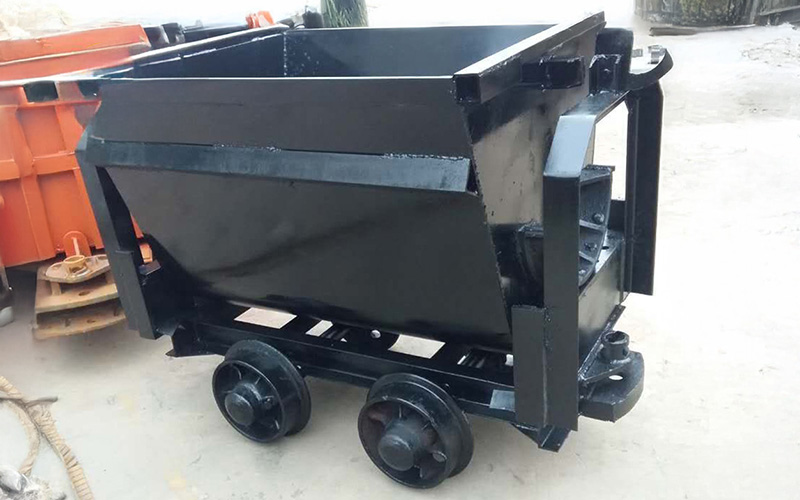

KFU Series Bucket-Tipping Mining Wagon
- Durable Steel Construction
- Effortless Side-Dumping
- Low Maintenance Design
- 600mm Gauge Compatibility
KFU Series Bucket-Tipping Mining Wagon: Durable and Efficient Material Handling for Underground Mines
The KFU Series Bucket-Tipping Mining Wagon is a robust and reliable haulage solution designed for the rigorous demands of underground mining operations. Engineered for efficient transportation and effortless discharge of ores, rocks, and other bulk materials in confined spaces, it features a sturdy construction and a convenient side-dumping mechanism that significantly enhances productivity and reduces manual labor. Available in multiple capacity models (from 0.55 to 1.2 cubic meters), this series offers a versatile solution to meet various production needs within 600mm gauge track systems.
Key Features & Advantages
Durable & Long-Lasting Construction
Built with high-strength steel plates and reinforced welding, our mining wagons withstand heavy loads and impact. A heavy-duty coating provides superior corrosion resistance for extended service life in harsh mining environments.
Effortless Side-Dumping Operation
The innovative side-dumping mechanism allows for quick and safe material discharge with a simple locking device. This design significantly improves unloading efficiency and reduces worker fatigue and operational downtime.
Excellent Maneuverability
With a compact wheelbase and optimized wheel diameter designed specifically for 600mm gauge tracks, the KFU series offers exceptional maneuverability through narrow and curved tunnels while maintaining stable operation.
Low Maintenance Design
Featuring sealed bearings to minimize dust ingress and easily accessible components, our mining wagons are designed for minimal maintenance requirements and extended service intervals, reducing your total cost of ownership.
Technical Specifications
| Model | KFU0.55-6 | KFU0.75-6 | KFU1.0-6 | KFU1.2-6 |
|---|---|---|---|---|
| Bucket Capacity (m³) | 0.55 | 0.75 | 1.0 | 1.2 |
| Rated Load (Ton) | 1.3 | 1.88 | 2.0 | 3.0 |
| Gauge (mm) | 600 | 600 | 600 | 600 |
| Wheel Base (mm) | 500 | 600 | 600 | 700 |
| Wheel Diameter (mm) | 300 | 300 | 300 | 300 |
| Traction (KN) | 60 | 60 | 60 | 60 |
| Traction Height (mm) | 320 | 320 | 320 | 320 |
| Overall Size (LxWxH) (mm) | 1552×850×1150 | 1700×980×1250 | 1910×1070×1300 | 2228×1070×1320 |
Note: Specifications may be subject to change based on custom requirements.
Applications
The KFU Series Bucket-Tipping Wagon is ideally suited for a wide range of underground mining applications, including but not limited to:
Coal Mines
Metal Ore Mines (iron, copper, zinc)
Tunnel Construction
Quarry Operations
Industrial Material Handling
Development Headings
