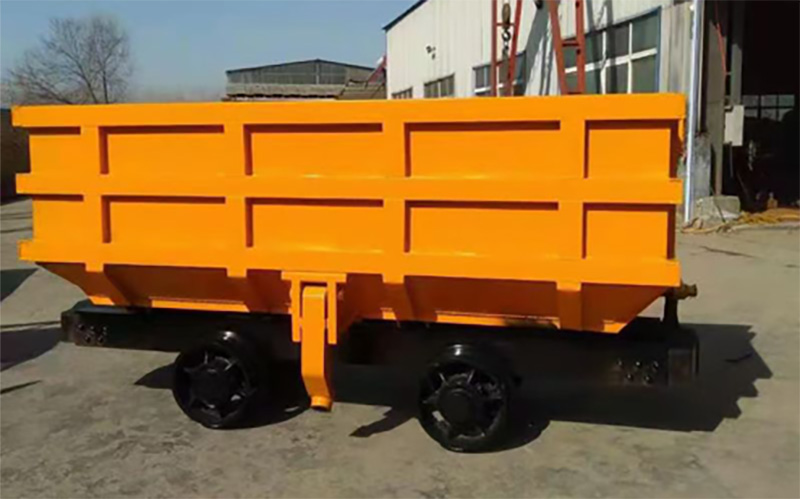

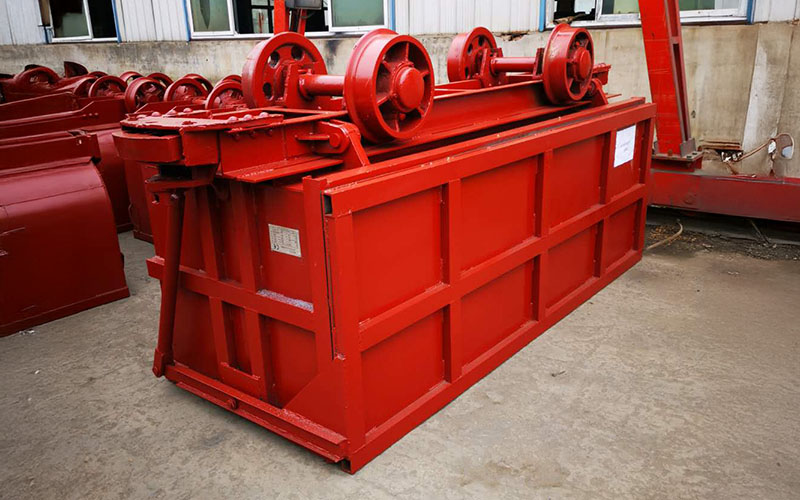

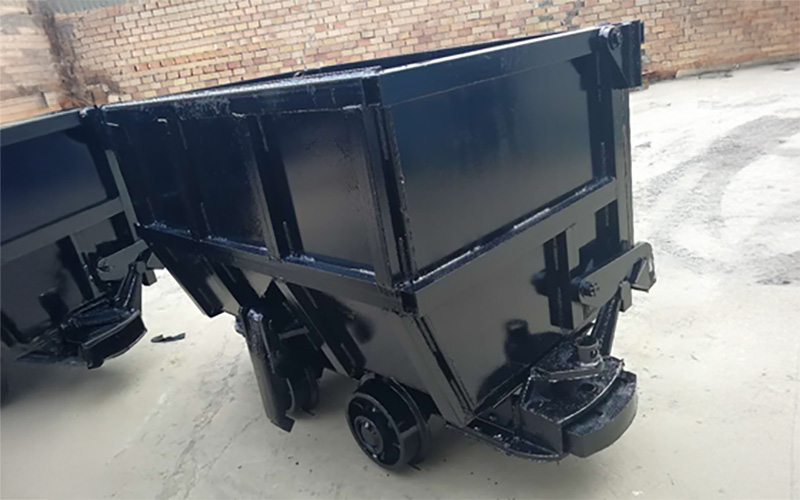

YCC Series Curved Rail Side Dump Mining Wagon
- Side Discharge Design
- Tight Turn Radius
- Robust Construction
- Customizable Configurations
YCC Series Curved Rail Side Dump Mining Wagons
Efficient & Safe Ore Haulage Solutions for Underground Mining Operations
Engineered for Performance & Durability
Product Overview
The YCC Series Curved Rail Side Dump Mining Wagon is a revolutionary haulage solution designed for high-efficiency and safety in underground mining operations. Unlike traditional fixed-body wagons, our side dump design allows for rapid, controlled discharge of materials directly to the side of the track. This eliminates the need for rotary dumpers or manual unloading, significantly boosting productivity and minimizing operational hazards in confined spaces.
Key Features & Benefits
Unmatched Unloading Efficiency
Features a 42°-45° side dumping angle for quick and complete material discharge in seconds. This drastically reduces cycle time and increases overall haulage capacity.
Superior Maneuverability
Specifically designed with a curved rail profile and optimized turn radius (from 8m to 18m), the YCC wagon navigates tight corners and complex tunnel layouts with ease.
Robust Construction
Built with high-strength steel and equipped with large-diameter wheels, our wagons withstand the toughest mining conditions and minimize downtime.
Enhanced Safety & Stability
The low center of gravity and wide wheelbase design ensure exceptional stability during both transit and dumping, preventing tip-overs.
Technical Specifications
| Parameter | 1.2㎥ Double side dump | 1.6㎥ Curved track | 2.5㎥ Curved track | 4㎥ Curved track | 6㎥ Curved track | 8㎥ Curved track |
|---|---|---|---|---|---|---|
| Volume(㎥) | 1.2 | 1.6 | 2.5 | 4 | 6 | 8 |
| Load(t) | 1.6 | 4 | 6.25 | 10 | 15 | 15 |
| Track spacing(mm) | 600 | 762 | 762/900 | 762/900 | 762/900 | 762/900 |
| Wheelbase(mm) | 620 | 800 | 1200 | 2000 | 2000 | 2600 |
| Wheel diameter(mm) | 300 | 350 | 400 | 350 | 350 | 350 |
| Coupler form | Latch chain | Latch chain | Latch chain | Latch chain | Latch chain | Latch chain type automatic hook |
| High traction(mm) | 335 | 320 | 320 | 430 | 500 | 500 |
| Traction Speed(kg/h) | 12 | 12 | 12 | 8 | 8 | 8 |
| Unloading angle(°) | - | 45° | 45° | 42° | 42° | 42° |
| Dimensions long(mm) | 2150 | 2500 | 3650 | 3650 | 5000 | 6350 |
| Dimensions width(mm) | 1450 | 1200 | 1250 | 1500 | 1800 | 1500 |
| Dimensions high(mm) | 1270 | 1300 | 1300 | 1586 | 1675 | 1634 |
| Weight(kg) | 1000 | 1363 | 2205 | 2980 | 3173 | 4750 |
| Turn radius(m) | 8 | 10 | 12 | 15 | 15 | 18 |
Applications
Underground metal mining
Coal mining operations
Tunnel construction
Confined space material transport
