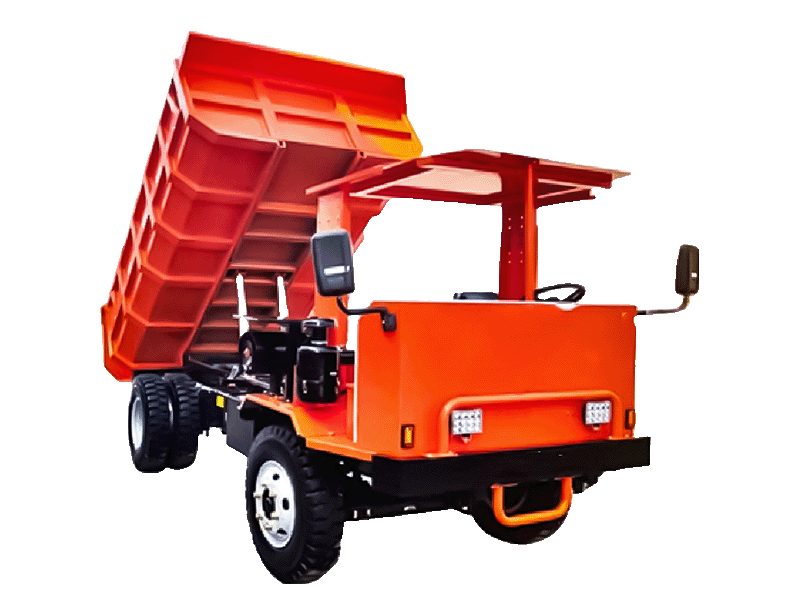

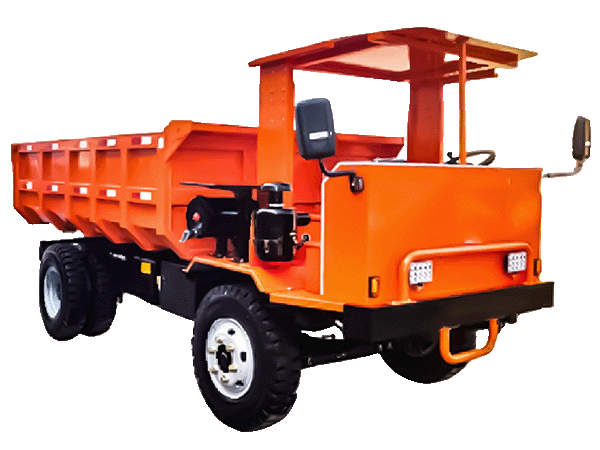

10ton Diesel Mining Dump Truck
- Reinforced 10mm Steel Cargo Box
- Selectable 4WD or 2WD
- Waterproof Automotive-Grade Wiring
- High-Torque Yunnei Turbo Engine

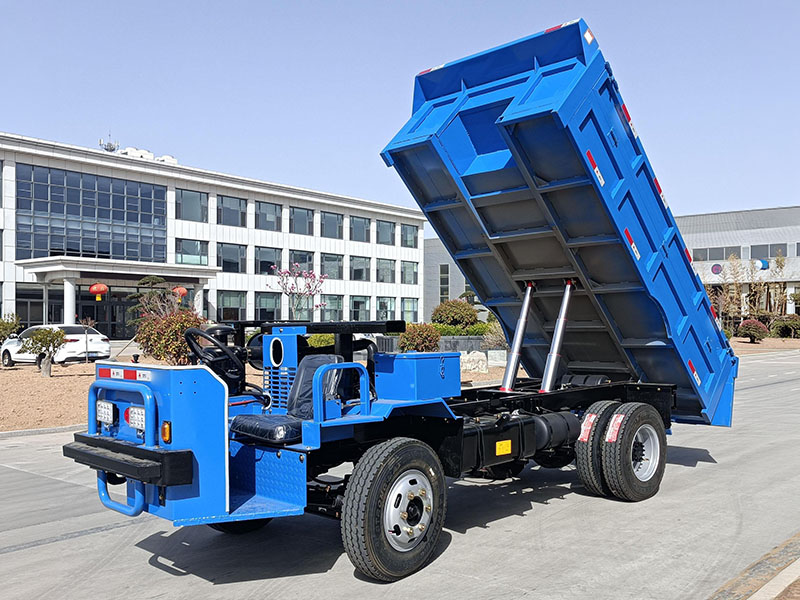

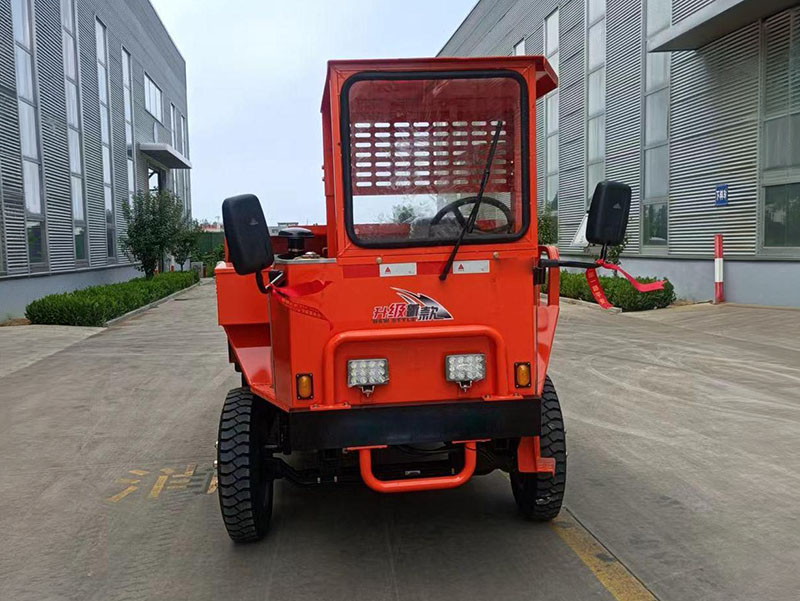

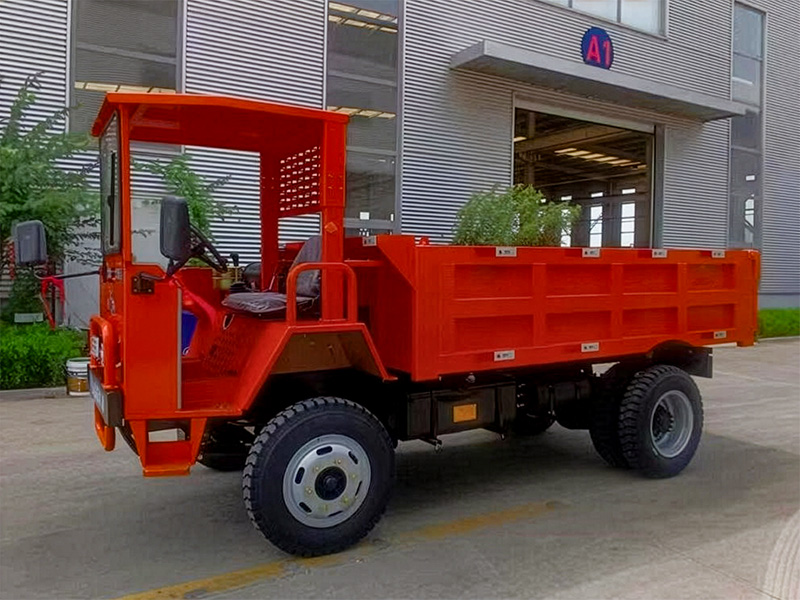

10 Ton Diesel Mining Dump Truck
Model 195TZP 195TZPS | Side‑drive | 4×2 or 4×4
| Parameter | Specification & Benefit |
|---|---|
| Fuel Type | Diesel High energy density, longer runtime |
| Engine | Yunnei 4102 Turbocharged 66 kW (90 HP) / 81 kW (110 HP) Strong low‑end torque for steep ramps |
| Payload | 10 metric tons Optimized for medium‑scale ore haulage |
| Drive Type | Rear‑drive (2WD) / 4‑wheel drive (4WD) Selectable to match terrain |
| Gradeability | 12° Handles steep underground ramps safely |
| Cargo Box Volume | 3.8 m³ Efficient per‑cycle material movement |
| Cargo Box Steel | Floor 10 mm / Side 5 mm Resists rock impact & extends service life |
| Brake System | Air‑off (spring brake) Failsafe parking on slopes |
| Dumping Mechanism | 110×950 dual hydraulic rear dump Fast, stable unloading |
| Exhaust Treatment | Exhaust purifier Reduces emissions for confined tunnels |
| Waterproof Design | Automotive‑grade sealed harness Prevents electrical faults in wet mines |
| Wheelbase / Track | 2620 mm / 1770 mm Customizable for narrow mine roads |
| Tires | 750‑16 mining tires (dual rear) Excellent grip & puncture resistance |
Scientific Customization
We adjust vehicle dimensions, axle position, and wheelbase to match your tunnel size and slope. Torque and transmission ratios are optimized — this ensures maximum traction and braking safety on your specific site, reducing slippage and improving cycle times.
Reinforced Heavy‑Duty Structure
Built for falling rock zones. Frame, cargo box (10 mm floor), and axles use thicker, high‑strength steel. Load‑bearing capacity is 1.4× that of standard road trucks, drastically cutting maintenance and downtime.
Waterproof & Safe Electrics
Sedan‑grade waterproof wiring harnesses prevent leakage and short circuits caused by standing water — essential for tunnels with high moisture, keeping operators safe and compliant.
Brand Engineering Engine
Yunnei, Yuchai, or Heavy Duty Truck engines deliver high torque at low RPM. Combined with cast steel axles, productivity climbs over 20% compared to similar power trucks, moving more material per shift.
⛏️ Ideal Applications
Underground metal/non‑metal mines
Tunnel construction & development
Narrow‑vein mining haulage
Quarry ramp transport
Coal mine auxiliary transport (with purifier)
Frequently Asked Questions
The truck is rated for 10 metric tons. The reinforced frame and cast steel axles support this load consistently in rough mining conditions.
Yes, the gradeability is 12 degrees. The powertrain (Yunnei turbo engine + optimized gear ratio) maintains traction even with a full load.
The 195TZP uses a 66 kW (90 HP) Yunnei 4102 turbo engine; the 195TZPS delivers 81 kW (110 HP). Both are known for reliability in dusty environments.
Yes, you can choose between rear‑drive (2WD) and four‑wheel drive (4WD) to suit your underground terrain.
All wiring uses sedan‑grade waterproof harnesses, preventing electrical leakage from standing water — a crucial safety feature for tunnels.
Internal dimensions: 3200×1750×750 mm (3.8 m³). The floor is 10 mm thick and sides 5 mm, specially designed to resist rock impact.
