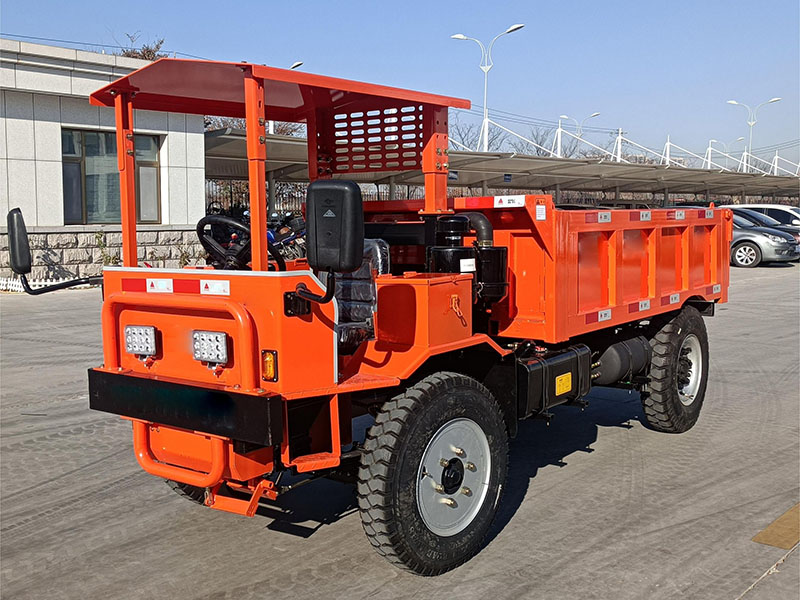

5ton Diesel Mining Dump Truck
- Yunnei diesel engine power
- Scientific customization fit
- Waterproof mining harness
- 20% higher production rate
5 Ton Diesel Mining Dump Truck
Heavy‑Duty Mining Grade
2WD / 4WD Options | Underground Optimized
5 TonPayload Capacity
46kW (63HP)Yunnei Engine
12°Climbing Ability
2.2 m³Max Volume
Why Choose This Dump Truck?
Scientific Customization – Adjust wheelbase, torque and transmission ratio according to tunnel slope & size. Benefit: Tailored fit for underground roadways, 25% better braking safety & climbing stability.
Thick & Solid Materials – 8mm bottom / 5mm side steel plates, reinforced frame for falling rocks impact. Benefit: Reduce damage & maintenance cost, industry-leading durability in harsh mines.
Waterproof Design – Sedan-grade waterproof wiring harness prevents leakage in wet roadways. Benefit: Zero electrical failures in waterlogged tunnels, higher uptime.
Brand Engine (Yunnei / Yuchai) – High-torque cast steel front/rear axles, 1.4x load capacity vs road dump trucks. Benefit: +20% productivity, superior torque on gradients.
Technical Specifications
| Parameters | 178TP / 178TZP (2WD) | 178TPS / 178TZPS (4WD) |
|---|---|---|
| Fuel Type | Diesel | |
| Driving Mode | Rear Drive (2WD) | 4WD |
| Engine Model | Yunnei 490 RB8388 / Turbocharged | |
| Engine Power | 46kW (63 HP) | |
| Transmission | 530 Gearbox | |
| Rear Axle | 1069 | |
| Front Axle | 179T | 2040 Heavy-Duty |
| Brake System | Air Brake (Spring Brake) | |
| Wheelbase | 2400 mm | |
| Front Track | 1650 mm | |

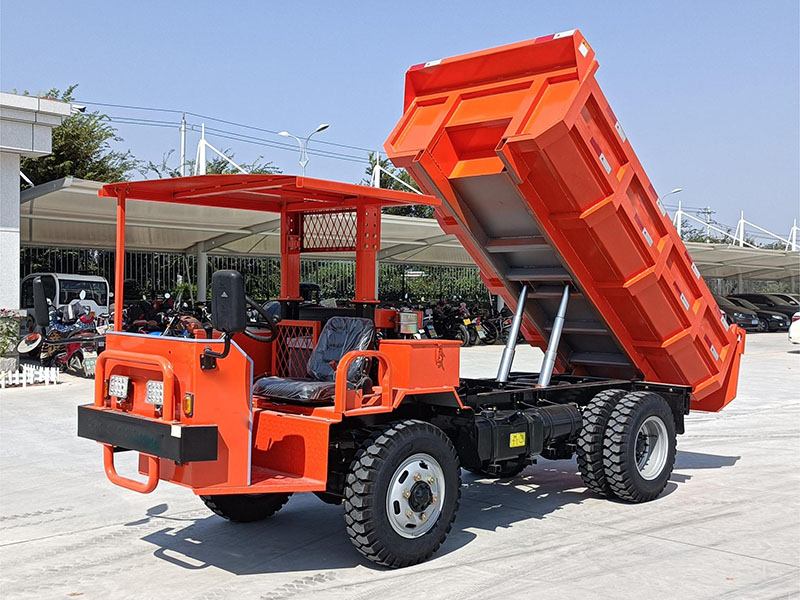

| Dumping Method | 90*800 Rear Double Ram | |
| Tires (Front/Rear) | 700-16 Mining (Dual rear) | 700-16 Qianjin Mining (Dual rear) |
| Vehicle Dimensions (L×W×H) | 4600×1650×1450 mm | |
| Cargo Box (L×W×H) | 2800×1600×500 mm | |
| Plate Thickness | Bottom 8mm / Side 5mm | |
| Steering | Hydraulic Power Steering | |
| Leaf Spring | Front & Rear 178 | Front & Rear 178T |
| Cargo Volume (m³) | 2.0 m³ | 2.2 m³ |
| Gradeability | 12° | |
| Payload | 5,000 kg (5 Tons) | |
| Exhaust Treatment | Purifier / Euro adapted | |
*Both models feature robust chassis, dual rear tires, and exhaust purifier for underground air quality.
Perfect For Your Mining Operations
✔ Ideal Application Scenarios:
Underground Metal & Coal Mines – 1650mm narrow width fits standard tunnels, 5T capacity for efficient material hauling.
Tunnel Construction & Hydropower Projects – Waterproof wiring + heavy-duty suspension for wet/muddy conditions.
Quarries & Aggregate Sites – Reinforced cargo box (8mm bottom) resists impact from large rocks.
Sloped Roadways – 12° climbing ability & high torque engine handles 5T load on gradients.
⭐ Up to 20% higher production rate – Scientific gearing & cast steel axles deliver 1.4x load capacity than standard road dump trucks.
Frequently Asked Questions
What is the maximum payload? Can it handle 5 tons on steep grades?
Yes, this mining dump truck is rated for 5 tons (5,000 kg) payload. With 46kW engine and optimized gear ratio, it maintains stable climbing on slopes up to 12°, proven in mining conditions. The Scientific Customization further adjusts torque to match site slope.
Is the truck suitable for underground mines with water seepage?
Absolutely. The entire wiring uses sedan-grade waterproof harness, effectively avoiding short circuits or leakage caused by water in roadways. All electrical components are sealed to ensure reliability in damp tunnels.
What is the difference between 178TP/178TZP and the 4WD version?
178TP/178TZP is rear-wheel drive (2WD) with front axle 179T and 2.0m³ cargo volume, while the 178TPS/178TZPS is 4WD with heavy-duty front axle 2040 and larger 2.2m³ volume. The 4WD offers enhanced traction on slippery/uneven underground roads.
What about exhaust emissions in enclosed spaces?
Both models are equipped with exhaust purifiers (tail gas purifier) that significantly reduce harmful emissions. Suitable for underground mines requiring cleaner air. Compliant with most mining ventilation standards.
Can the vehicle be customized for my specific mine roadway dimensions?
Yes, via Scientific Customization – we can adjust wheelbase, overall center of gravity, axle position and torque/transmission ratio based on your roadway slope and size, ensuring maximum safety and efficiency.
How durable is the cargo box for hauling sharp rocks?
The cargo box features 8mm bottom plate and 5mm side plates (thickened high-strength steel). We adopt impact-resistant design, effectively resisting falling rocks and abrasion, delivering longer service life compared to conventional dumpers.
