8ton Diesel Mining Dump Truck
- Scientific customization for mine safety
- Thick steel body anti-impact
- Sedan-grade waterproof wiring
- 1.4x higher load capacity

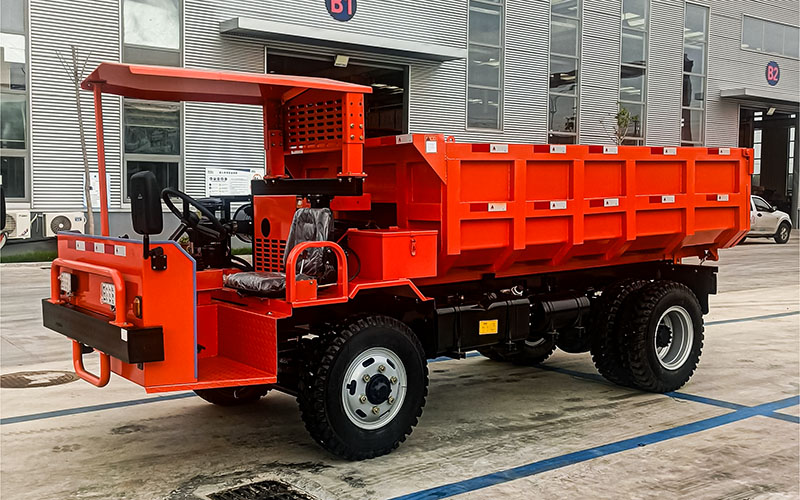

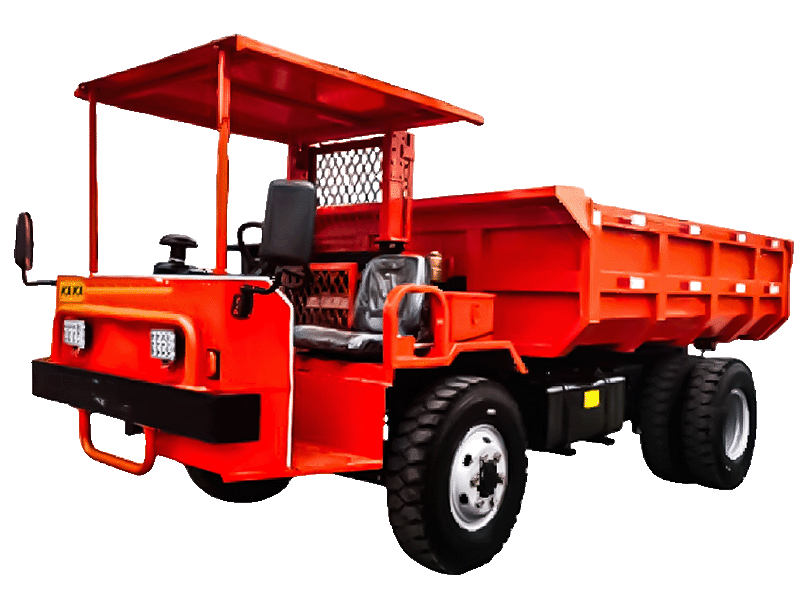

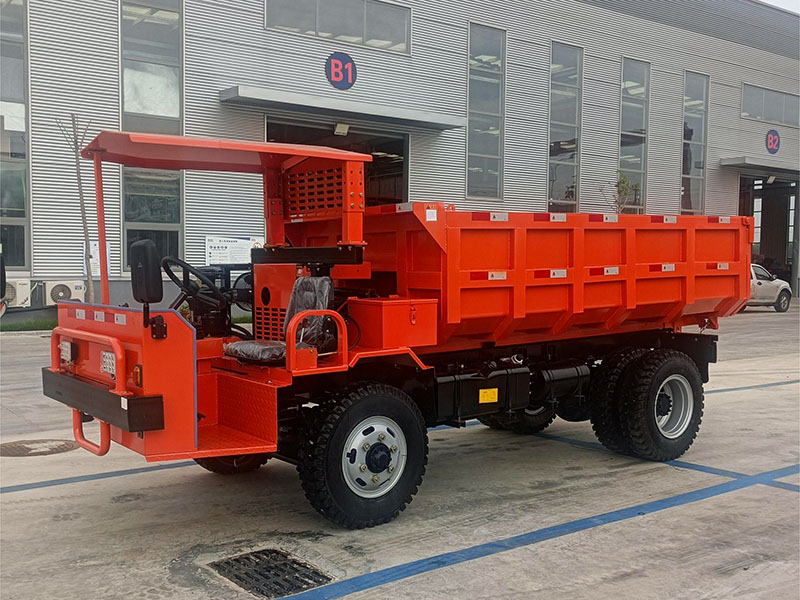

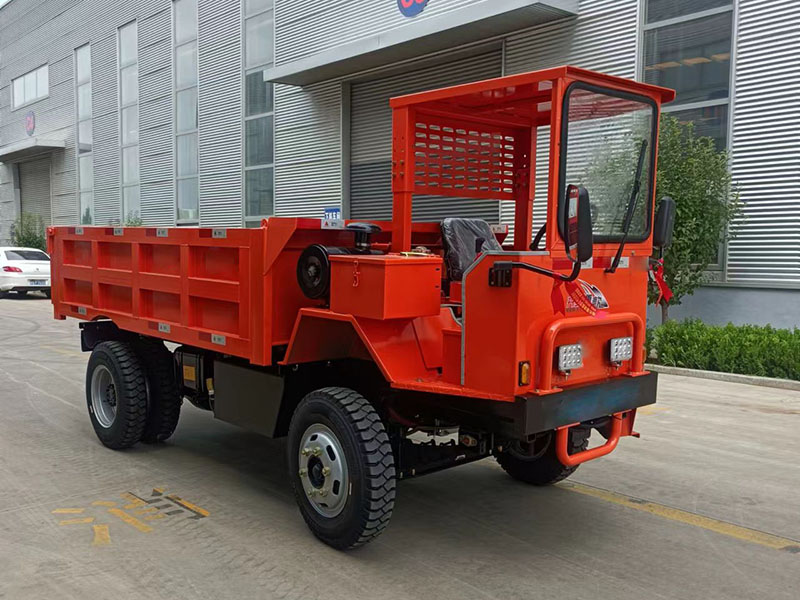

8 Ton Diesel Mining Dump Truck
Model 195TP / 195TPS • Heavy‑duty underground hauler with scientific flexibility
8 Ton
Payload
66 kW
Engine Power (90HP)
12°
Gradeability
3.8 m³
Heaped Capacity
🔧 Scientific Customization
Adjust vehicle size, wheelbase & center position to match site roadway slope. Optimized torque & transmission ratio ensures maximum braking safety and terrain adaptability, boosting productivity in narrow tunnels.
⛰️ Rock-Solid Durability
10mm bottom + 5mm side high-strength steel cargo box, reinforced frame. Superior impact resistance against falling rocks from high places — industry-leading material robustness extends service life.
💧 Full Waterproof Wiring
Sedan-grade waterproof harnesses effectively prevent short circuits & leakage in water-logged roadways. Safe operation even in extreme underground humidity or flooded drifts.
⚙️ High-Torque Brand Engine
Yunnei 4102 (Stage II) + cast steel front/rear axles. Load capacity 1.4x higher than road dumpers of same power, boosting production rate by >20%. Excellent fuel efficiency and low-end torque.

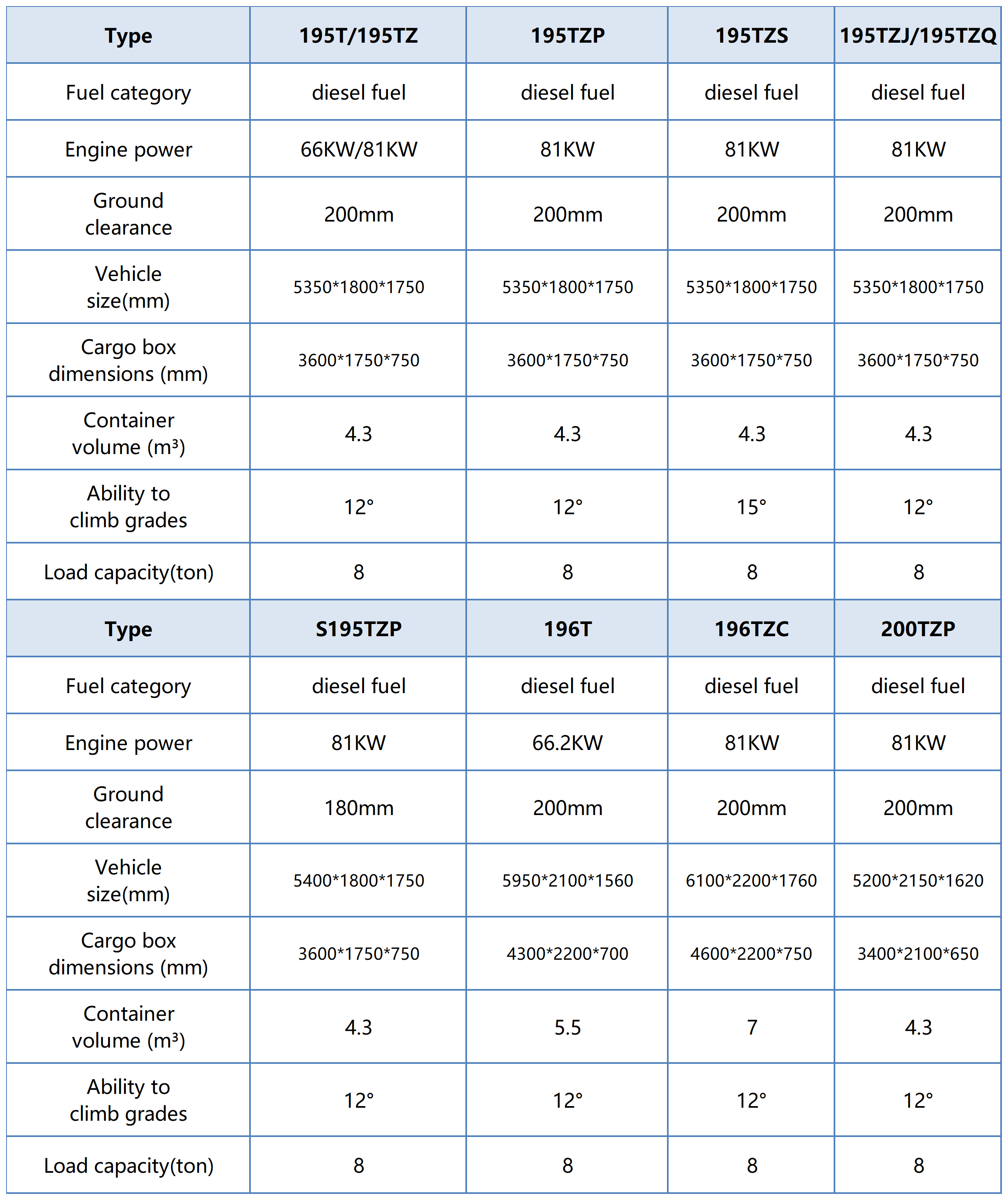

Technical Specifications
| Model | 195TP (Rear Drive) / 195TPS (4WD) |
| Fuel Type | Diesel |
| Cab Type | Side-seat driving, compact for narrow roadways |
| Engine Model | Yunnei 4102 (China Stage II) with exhaust purifier |
| Engine Power | 66 kW (90 HP) — high torque reserve for steep slopes |
| Transmission | 145 Manual, robust ratio for heavy load start |
| Rear Axle / Front Axle | 195 (heavy-duty) / 184 (reinforced cast steel) |
| Brake System | Spring brake (parking/emergency) — reliable downhill holding |
| Drive Type | Rear drive (195TP) / Part-time 4WD (195TPS) |
| Front Track | 1770 mm |
| Wheelbase | 2620 mm |

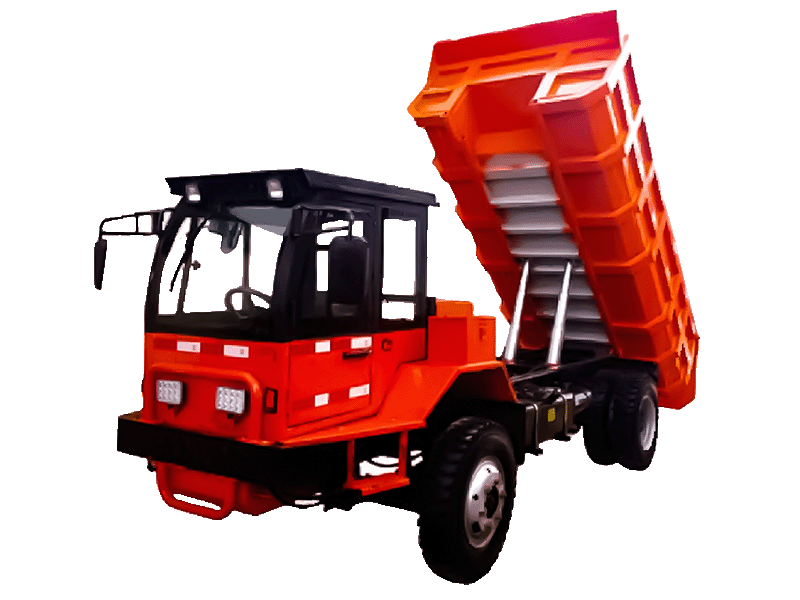

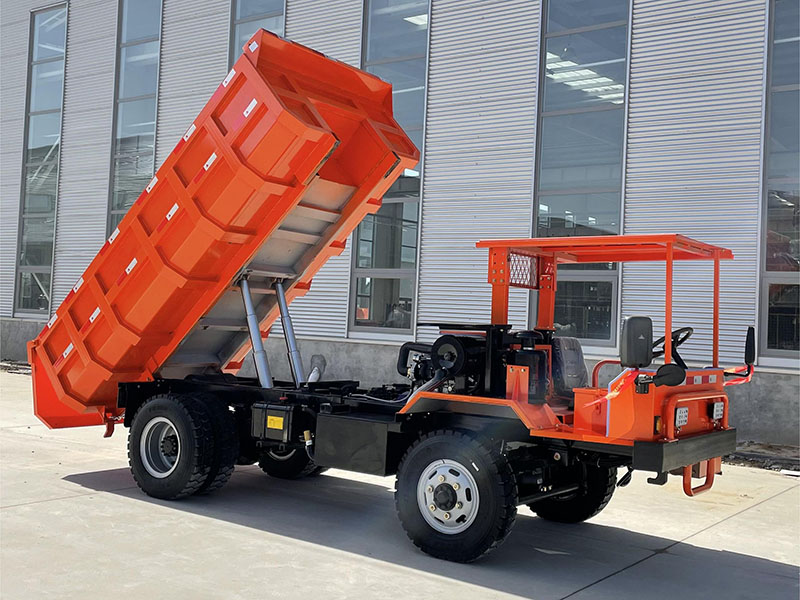

| Dumping Method | 110*950 rear double hydraulic cylinder (stable & strong) |
| Tires (Front / Rear) | 750-16 Qianjin mining tire (rear dual tires) — extreme traction |
| Overall Dimensions (L×W×H) | 5000 × 1770 × 1650 mm |
| Cargo Box (L×W×H) | 3200 × 1750 × 650 mm |
| Floor / Side Thickness | 10 mm / 5 mm — heavy-duty anti-impact |
| Steering | Hydraulic power steering (low effort, high precision) |
| Leaf Spring (Front/Rear) | 500T-1S / 195T-B — extra load stability |
| Struck Capacity | 3.8 m³ |
| Gradeability | 12° (21% slope) — ideal for underground ramps |
| Rated Payload | 8,000 kg (8 tons) |
| Emission Treatment | Exhaust purifier + diesel oxidation catalyst — reduced underground fumes |
📍 Ideal Applications & Proven Advantages
✔ Underground mining roadways: narrow 1770mm track + 2620mm wheelbase ensures maneuverability in drifts.
✔ Steep slopes & wet tunnels: spring brake plus 12° gradeability and 4WD option keep safety and control.
✔ High-impact rockfall zones: 10mm bottom plates + reinforced frame resist boulder impact — less downtime.
✔ Waterlogged paths & high humidity: waterproof wiring harness prevents electrical failures, reducing maintenance.
✔ Custom-fit geometry: Scientific customization adjusts center of gravity & torque curve — perfectly matches your mine's incline profile.
Frequently Asked Questions
What maximum payload can this truck handle in real mining conditions?
The truck is rated for 8 tons (7,500–8,000 kg) with structural safety margin. The reinforced cast steel axles and 10mm floor thickness allow continuous heavy loads in rugged terrain.
Can the vehicle be adapted to narrow or irregular mine roadways?
Yes — "Scientific Customization" enables adjustment of wheelbase, vehicle center position, and transmission torque ratio based on your site's roadway width and slope, ensuring braking safety and optimal traction.
Is the dump truck available with 4WD, and what are the benefits?
Model 195TPS offers part-time 4WD, extremely useful on wet or loose gradients. Combined with 750-16 dual rear tires, it provides superior grip and reduces wheel spin on muddy declines.
How does the waterproof design help in underground mines?
The entire wiring system uses sedan-grade waterproof harnesses, effectively avoiding leakage and corrosion caused by excessive water, puddles or high-pressure washing inside roadways — a major reliability boost in flood-prone mines.
What engine emission standard and aftertreatment are included?
The Yunnei 4102 meets China Stage II standards (comparable to Euro II) and is equipped with an exhaust purifier – reducing particulate and smoke, making it suitable for semi-enclosed underground environments.
Why is the load capacity claimed 1.4x higher than road dump trucks?
Thanks to heavy-duty cast steel front/rear axles, high-torque engineering engine, and reinforced frame & leaf springs, the truck's structural strength outperforms standard on-road dumpers of same power, improving productivity by over 20%.
📦 Get a Quote →
Tailored pricing, OEM options & delivery worldwide
* Specifications may vary with custom engineering. Contact sales for scientific configuration based on your mine roadway.
