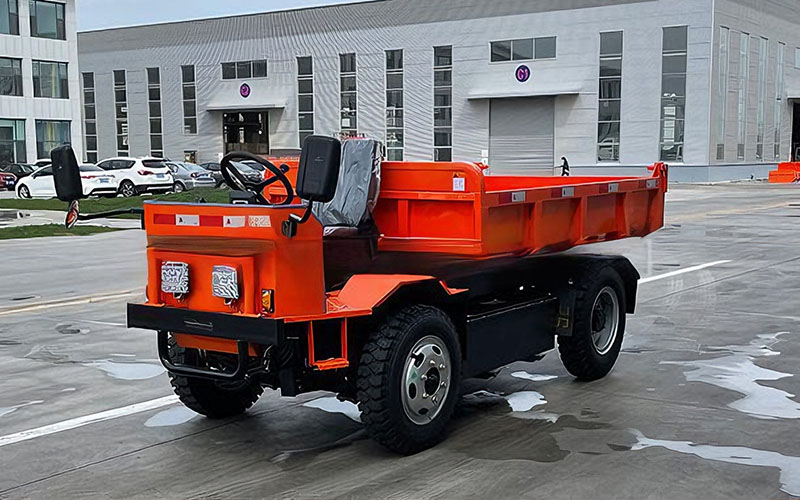

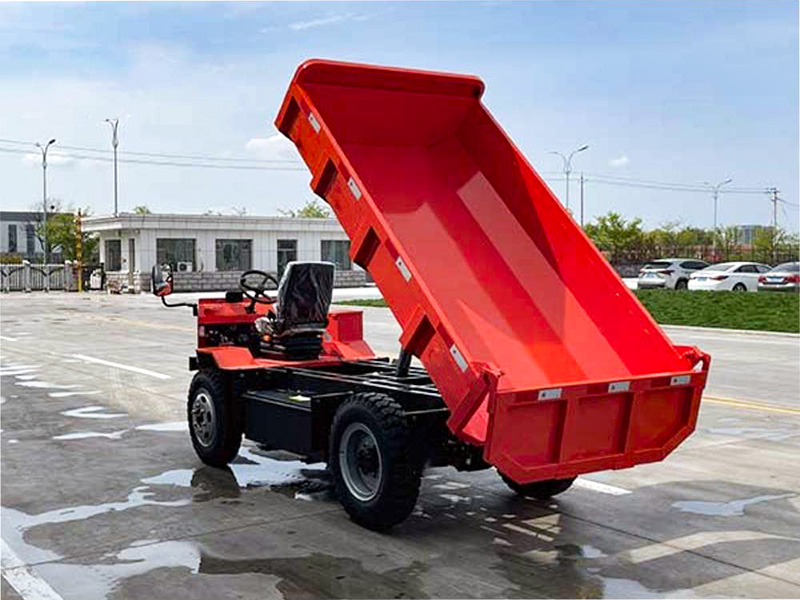

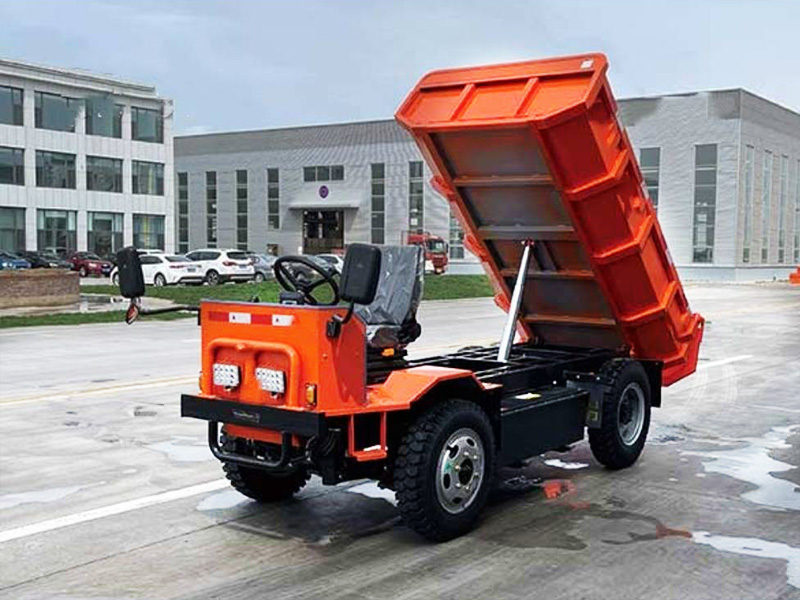

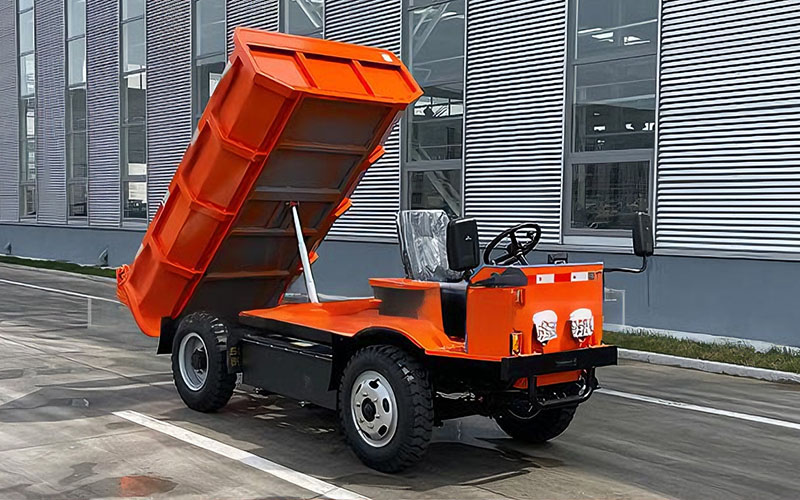

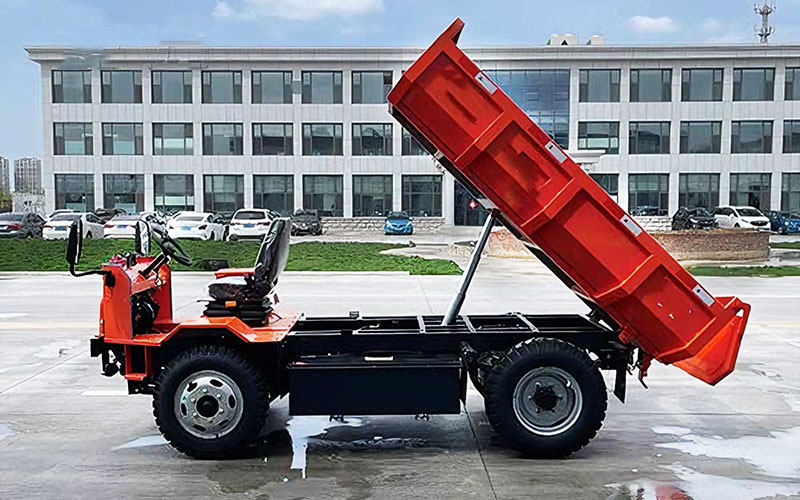

D40 Electric Mining Dump Truck
- Terrain-Optimized Engineering
- High-Impact Material Reinforcement
- Sedan-Grade Waterproof Systems
- Heavy-Duty Engineered Powertrain
D40 Mining Electric 4-Wheeler
Model D40
4-ton lead-acid battery powered hauler for underground mining operations
Industrial-Grade Lead-Acid Power System
12×6V/200Ah Maintenance-Free Batteries | 72V DC System | 10kW AC Drive Motor
Technical Specifications
Battery System
12×6V/200Ah Lead-Acid Batteries (Maintenance-Free)
Motor Configuration
10kW AC Motor (Rear-Wheel Drive)
Operating Voltage
72V DC System
Drive System
Rear-Wheel Drive
Braking System
Hydraulic Oil Brakes
Compartment Volume
1.6m³ Material Capacity
Load Capacity
4,000kg (4 Tons)
Wheel Base
1,520mm
Tire Configuration
Front:650-16 / Rear:700-16 (Mine Mountain Tires)
Control System
Intelligent Controllers
Lead-Acid Battery Advantages
Extreme Temperature Adaptation
-20℃~50℃ operational range maintains 85% capacity in mining environments where lithium batteries suffer performance degradation
Reduced Maintenance Complexity
Integrated water-refilling ports and accessible cells enable on-site maintenance without specialized tools or training
Cost-Effective Power Solution
40% lower initial investment vs lithium systems with 2,000+ charge cycles at 70% capacity retention
Safety-Enhanced Design
Zero thermal runaway risk with lead-acid chemistry, certified for use in methane-rich mining environments
Dimensions & Capacities
Overall Vehicle Size
3,900 × 1,520 × 1,300 mm
(L × W × H)
Cargo Box Dimensions
2,600 × 1,500 × 450 mm
(L × W × H)
Cargo Box Volume
1.6m³
Material Transport Capacity
Steel Thickness
Bottom: 5mm / Side: 3mm
Reinforced Construction
Mining Operation Features
Narrow Drift Compatibility
1.52m width enables operation in narrow mine drifts down to 2m clearance, with 4.5m turning radius
Tiered Load Distribution
700-16 rear tires + 650-16 front tires configuration provides optimal weight distribution for 4-ton payloads on 15% inclines
Rapid Deployment Charging
Battery trays support hot-swap replacement in 15 minutes, enabling 24/7 continuous operation
Impact-Resistant Structure
5mm steel floor + triple-welded side supports withstand 6G impact loads in rockfall zones
Optimized for Medium-Duty Mining Transport
The D40 delivers reliable 4-ton payload capacity in confined spaces where larger vehicles cannot operate
✓ 1.3m low-profile design clears underground ventilation systems
✓ 10kW AC motor provides 25% torque boost at low RPM
✓ Hydraulic oil brakes maintain stopping power in wet shafts
✓ Tiered tire system reduces rear wheel slippage on inclines
✓ 2,000+ battery cycles with proper maintenance
