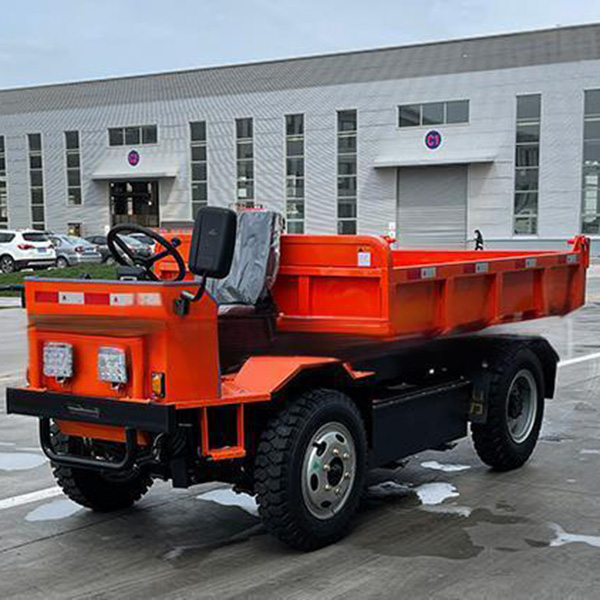

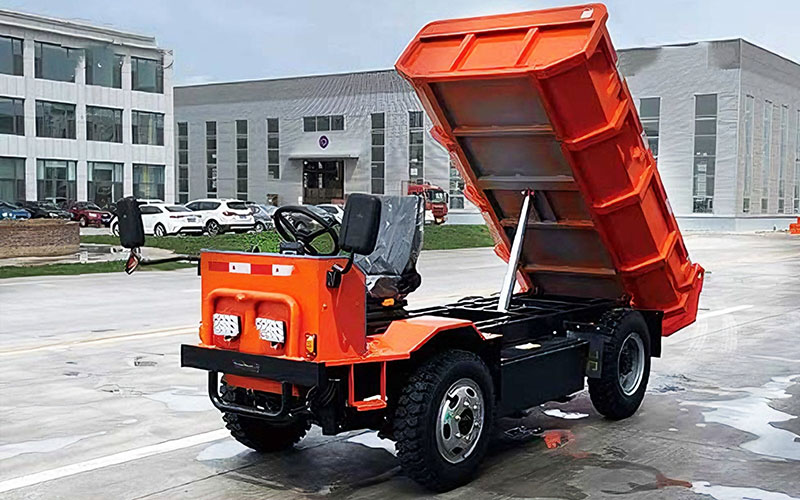

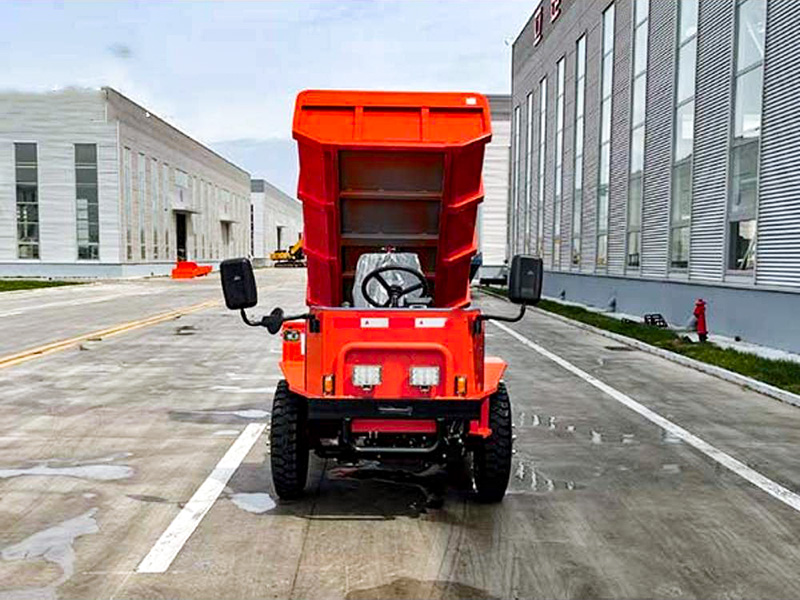

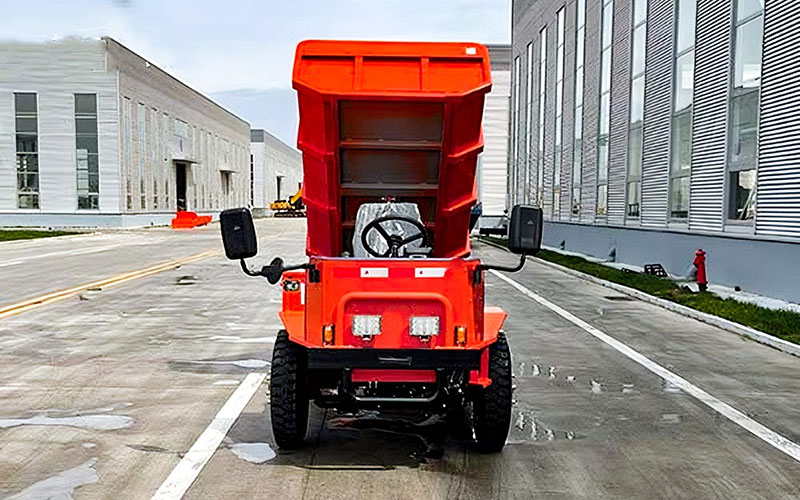

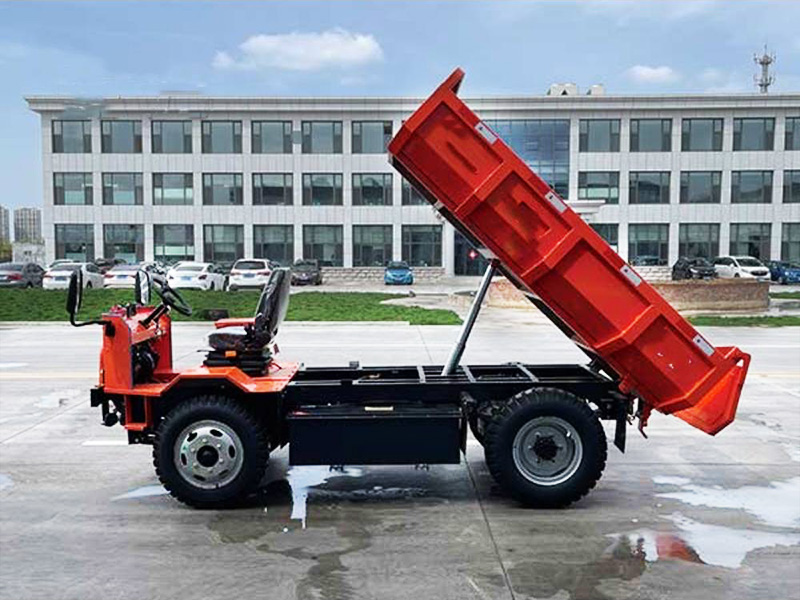

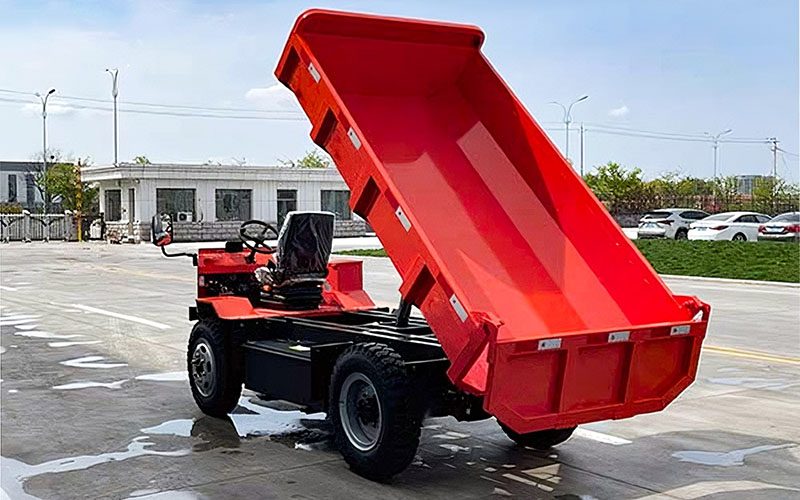

D40L Electric Mining Dump Truck
- Terrain-Optimized Engineering
- High-Impact Material Reinforcement
- Sedan-Grade Waterproof Systems
- Heavy-Duty Engineered Powertrain
D40L Heavy-Duty Mining Electric 4-Wheeler
Model D40L
Advanced 4-ton electric transport solution for underground mining operations
Technical Specifications
Battery System
CATL 400Ah Lithium Battery (Maintenance-Free)
Motor Power
10KW AC Motor
Operating Voltage
72V DC System
Drive System
Rear-Wheel Drive
Braking System
Pneumatic Brakes
Compartment Volume
1.6m³ Capacity
Load Capacity
4,000kg (4 Tons)
Wheel Base
1,520mm
Tire Configuration
Front: 650-16 / Rear: 700-16 (Mine Mountain Tires)
Control System
Intelligent Controllers
Performance Features
Efficient Rear-Wheel Drive
Optimized rear-wheel drive system delivers exceptional traction while reducing mechanical complexity and maintenance requirements for mining operations.
Advanced Pneumatic Braking
Industrial-grade pneumatic brakes provide reliable stopping power even with full 4-ton loads on steep declines, ensuring operational safety.
Compact Tunnel Navigation
With a 1,520mm wheelbase and compact dimensions (3900×1520×1420mm), this vehicle excels in narrow mining tunnels and confined spaces.
Reinforced Cargo Design
Heavy-duty cargo box with 5mm thick bottom plate and 3mm side panels withstands harsh mining impacts, ensuring long-term durability.
Dimensions & Capacities
Overall Vehicle Size
3,900 × 1,520 × 1,420 mm
(L × W × H)
Cargo Box Dimensions
2,600 × 1,500 × 450 mm
(L × W × H)
Cargo Box Volume
1.6m³
Material Transport Capacity
Cargo Box Thickness
Bottom: 5mm / Side: 3mm
Reinforced Construction
Mining Environment Advantages
Cost-Effective Operation
Rear-wheel drive design reduces maintenance costs while lithium battery technology offers energy costs 75% lower than diesel alternatives.
Enhanced Traction Control
700-16 rear tires combined with optimized weight distribution provide superior traction on steep gradients and uneven surfaces.
Zero Underground Emissions
Electric operation eliminates harmful exhaust, improving air quality in confined mining spaces and reducing ventilation requirements.
Intelligent Control System
Advanced controllers optimize power delivery, extend battery life, and provide real-time performance monitoring for mining operations.
Optimized Mining Transport Solution
The D40L electric 4-wheeler delivers efficient 4-ton transport capabilities with specialized mining features for challenging underground environments.
✓ 4-ton payload capacity with optimized weight distribution
✓ Rear-wheel drive system for simplified maintenance
✓ Compact dimensions for navigating narrow mine tunnels
✓ CATL 400Ah lithium battery for extended operation
✓ Mine-specific tires (650-16 front / 700-16 rear) for rugged terrain
