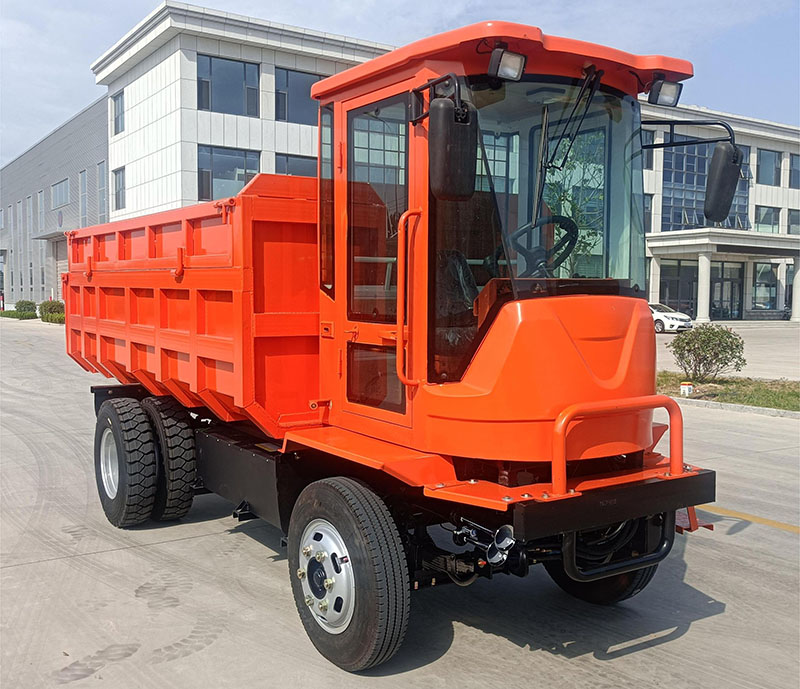

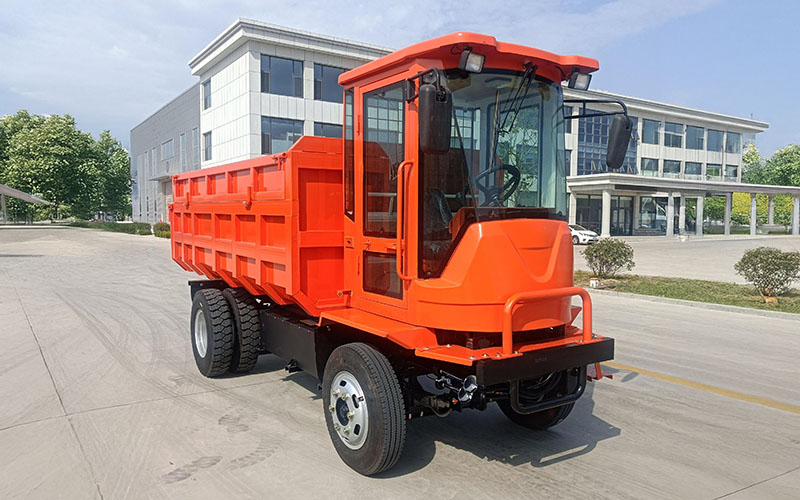

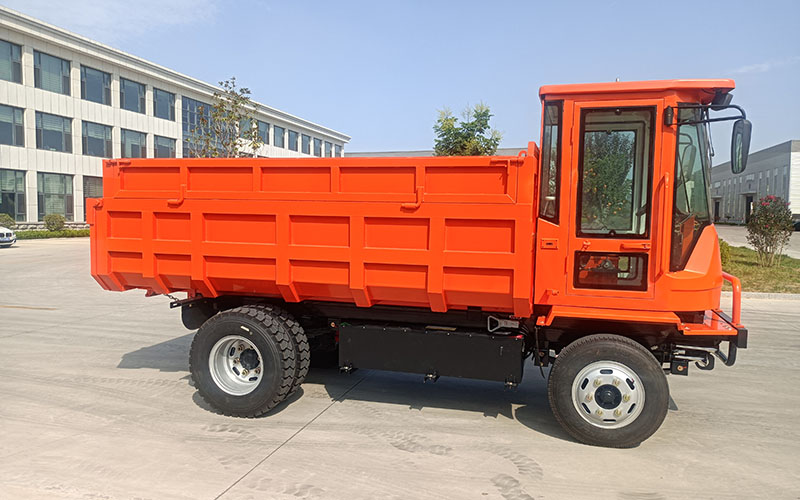

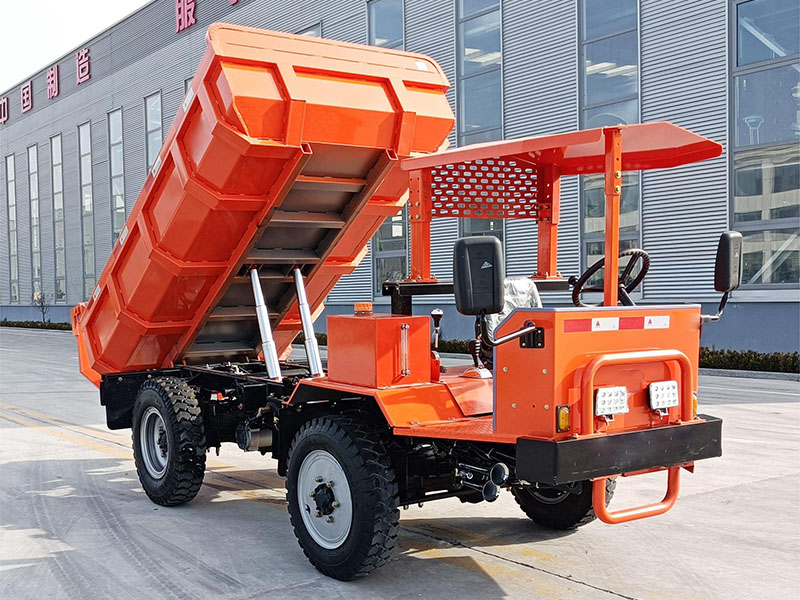

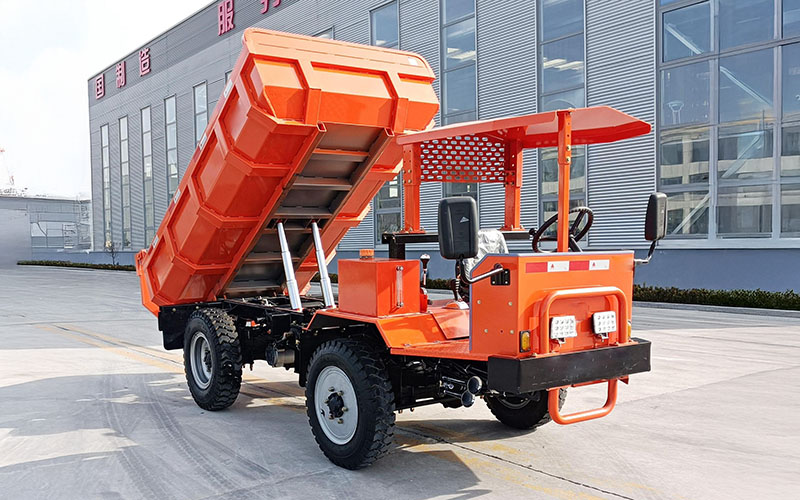

D50LS Electric Mining Dumper
- Terrain-Optimized Engineering
- High-Impact Material Reinforcement
- Sedan-Grade Waterproof Systems
- Heavy-Duty Engineered Powertrain
D50LS Heavy-Duty Mining Electric 4-Wheeler
Model D50LS
Advanced 5-ton electric transport solution for underground mining operations
Technical Specifications
Battery System
CATL 600Ah Lithium Battery (Maintenance-Free)
Motor Power
7.5kW / 10kW (Double Motor System)
Operating Voltage
72V DC System
Drive System
Four-Wheel Drive
Braking System
Pneumatic Brakes
Compartment Volume
2m³ Capacity
Load Capacity
5,000kg (5 Tons)
Wheel Base
1,600mm
Tire Configuration
Front: 650-16 / Rear: 750-16 (Mine Mountain Tires)
Control System
Intelligent Controllers
Performance Features
Exceptional Power & Efficiency
The dual motor system (7.5kW + 10kW) delivers robust power for steep gradients while the 72V system ensures optimal energy efficiency in demanding mining conditions.
Advanced Braking Safety
Pneumatic braking system provides reliable stopping power even with full 5-ton loads on steep declines, significantly enhancing operational safety.
Optimal Maneuverability
With a compact 1,600mm wheelbase and four-wheel drive system, this vehicle navigates narrow mining tunnels and challenging terrain with exceptional agility.
Durable Construction
Heavy-duty cargo box with 5mm thick bottom/side panels withstands harsh mining conditions, ensuring long-term durability and reduced maintenance costs.
Dimensions & Capacities
Overall Vehicle Size
4,280 × 1,600 × 1,970 mm
(L × W × H)
Cargo Box Dimensions
2,800 × 1,600 × 470 mm
(L × W × H)
Cargo Box Volume
2m³
Material Transport Capacity
Cargo Box Thickness
Bottom: 5mm / Side: 5mm
Reinforced Construction
Mining Environment Advantages
Zero-Emission Operation
Lithium-powered electric system eliminates harmful emissions, maintaining air quality in confined mining spaces and reducing ventilation requirements.
Robust Terrain Capability
Four-wheel drive configuration and specialized mine mountain tires provide superior traction on uneven, wet, or steep underground surfaces.
Reduced Operational Costs
Electric propulsion offers significant savings compared to diesel alternatives, with lower energy costs and minimal maintenance requirements.
Enhanced Operator Comfort
Intelligent controllers and optimized suspension reduce operator fatigue during extended shifts in challenging mining environments.
The Ultimate Mining Transport Solution
The D50LS electric 4-wheeler combines heavy-duty performance with advanced electric technology for superior productivity in demanding mining operations.
✓ 5-ton payload capacity for maximum productivity
✓ Zero emissions for improved underground air quality
✓ Exceptional maneuverability in confined mining spaces
✓ Reduced operating costs compared to diesel alternatives
✓ Low-maintenance design for maximum uptime
