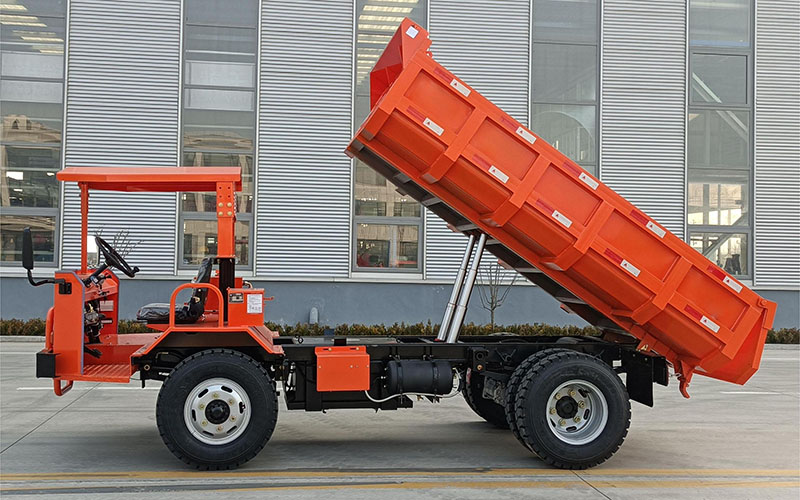

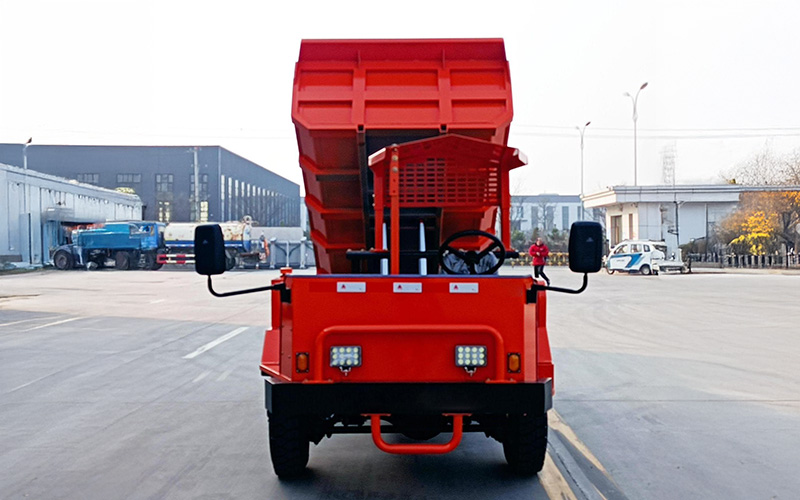

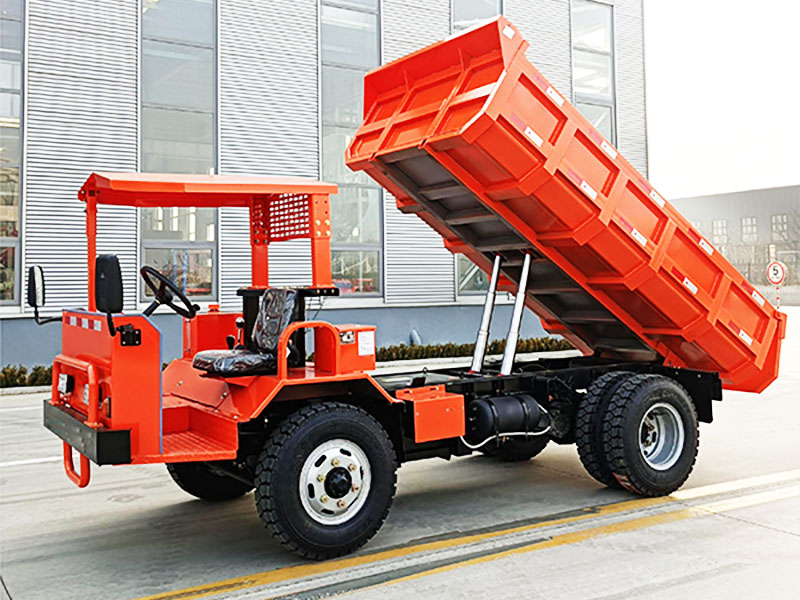

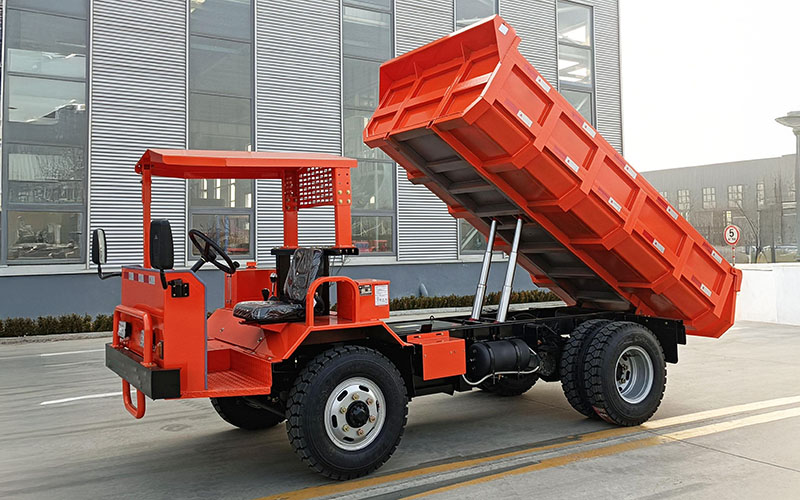

D80LS Electric Mining Dump Truck
- Terrain-Optimized Engineering
- High-Impact Material Reinforcement
- Sedan-Grade Waterproof Systems
- Heavy-Duty Engineered Powertrain
D80LS Heavy-Duty Mining Electric 4-Wheeler
Model D80LS
Industrial 8-ton electric transport solution for high-capacity mining operations
Technical Specifications
Battery System
CATL 600Ah Lithium Battery (Maintenance-Free)
Motor Configuration
10kW × 2 (Dual Motor System)
Operating Voltage
72V DC High-Efficiency System
Drive System
Four-Wheel Drive
Braking System
Industrial Pneumatic Brakes
Compartment Volume
3.0m³ Material Capacity
Load Capacity
8,000kg (8 Tons)
Wheel Base
1,600mm
Tire Configuration
750-16 × 4 (Mine Mountain Tires)
Control System
Intelligent Controllers
Heavy-Duty Performance Features
Dual-Motor Traction System
Dual 10kW motors deliver combined 20kW power output with intelligent torque distribution, enabling 25° grade climbing capability with full 8-ton loads.
Industrial Pneumatic Braking
Four-wheel pneumatic brakes with overload protection provide immediate stopping power even on 15% declines with maximum payload.
Optimized Weight Distribution
1,600mm wheelbase and 750-16 heavy-duty tires on all wheels ensure superior stability and reduced ground pressure in uneven mining terrain.
Reinforced Cargo Structure
8mm bottom plate + 5mm side panels withstand 10-ton impact loads, featuring full perimeter steel reinforcement for extended service life.
Dimensions & Capacities
Overall Vehicle Size
4,900 × 1,800 × 2,000 mm
(L × W × H)
Cargo Box Dimensions
3,200 × 1,800 × 600 mm
(L × W × H)
Cargo Box Volume
3.0m³
Material Transport Capacity
Steel Thickness
Bottom: 8mm / Side: 5mm
Heavy-Duty Construction
Mining Operation Advantages
High-Density Energy Storage
600Ah CATL lithium battery delivers 10-hour continuous operation with rapid swap capability, minimizing downtime during shift changes.
Four-Wheel Drive Superiority
Full-time 4WD with electronic traction control maintains propulsion even when two wheels lose contact in extreme terrain.
Zero Emission Operation
Eliminates diesel particulate matter in confined spaces, reducing ventilation costs by 30% compared to combustion engines.
Intelligent Power Management
Regenerative braking system recovers 15% of energy during descent, extending battery cycle life to 2,000+ charges.
The Ultimate 8-Ton Mining Hauler
The D80LS sets the new standard for heavy-duty electric transport in underground mining operations with uncompromised payload capacity.
✓ 8,000kg certified load capacity with 25% safety margin
✓ 3m³ cargo volume optimized for high-density ores
✓ Four-wheel drive with terrain-adaptive traction control
✓ 600Ah CATL lithium battery with 2,000+ cycle life
✓ 8mm reinforced steel floor for impact resistance
