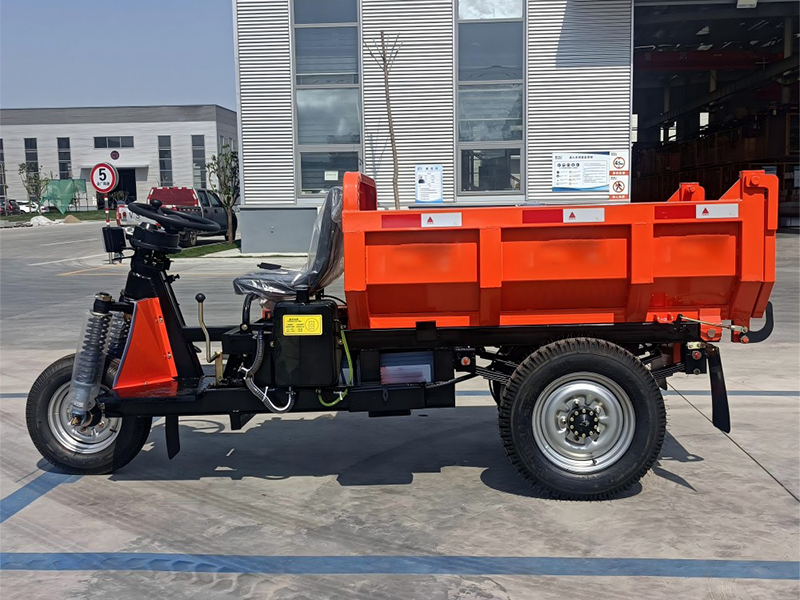

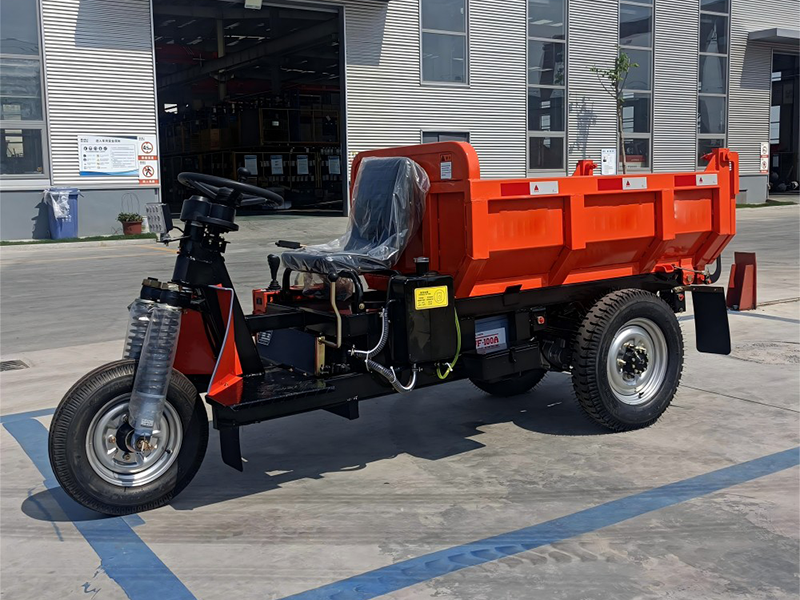

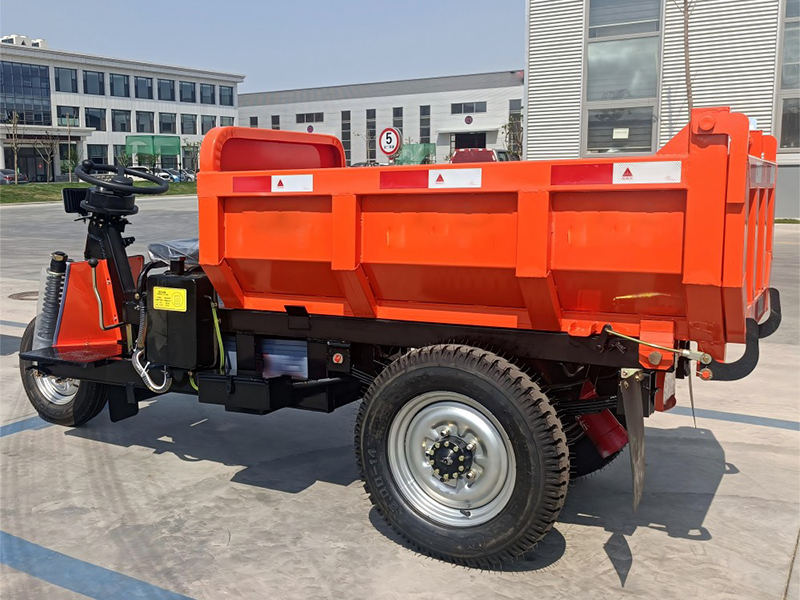

D10 Electric Mining Tricycle
- Scientific Customization: Roadway-Optimized Vehicle Tuning
- Thick and Solid Materials: Mining-Reinforced Structural Build
- Waterproof Design: Sedan-Grade Water-Proof Wiring
- Brand Engine: High-Torque Engineered Powertrains
1-TON MINING ELECTRIC TRICYCLE
Compact Powerhouse for Efficient Underground Material Handling
Product Overview
Engineered for confined mining environments, our 1-ton electric tricycle delivers exceptional maneuverability and zero-emission operation. With optimized dimensions and robust construction, it's the ideal solution for narrow tunnels and restricted spaces while maintaining industrial-grade durability.
Technical Specifications
| Model | D10 |
| Trunk volume | 0.5m³ |
| Rated load capacity | 1000kg |
| Unloading height | 2100mm |
| Loading height | 1200mm |
| Ground clearance | ≥240mm |
| Turning radius | ≤4200mm |
| Gradeability (Heavy Load) | ≤6° |
| Maximum lifting angle | 45±2° |
| Top speed | 25km/h |
| Motor power | AC 3KW |
| Voltage | 72V |
| Dimensions (L×W×H) | 3100×1150×1200mm |
| Wheelbase | 1350mm |
| Machine weight | 860kg |
| Cargo box sheet thickness | 3mm |
| Container size (outer) | 1600×1000×400mm |
Key Features
Compact Tunnel Navigation
With only 3100mm length and ≤4200mm turning radius, excels in narrow mining tunnels where larger vehicles cannot operate. 1350mm wheelbase ensures superior stability on uneven terrain.
Optimized Load Handling
1200mm loading height reduces worker fatigue, while 2100mm unloading height fits standard mine carts. 45° hydraulic tipping enables complete material discharge without residue.
Enhanced Terrain Capability
≥240mm ground clearance tackles rough mining terrain, while ≤6° heavy-load gradeability handles underground inclines. 3KW AC motor provides instant torque for start-stop operations.
Eco-Efficient Operation
Zero emissions eliminate tunnel air pollution, 72V system delivers 60-80km range per charge. Energy costs only 25% of diesel alternatives, with 8-12 hour continuous operation.
Operational Benefits
860kg lightweight design reduces energy consumption while maintaining structural integrity with 3mm steel construction
IP67 waterproof system operates reliably in high-humidity mining environments and waterlogged tunnels
Overload protection and brake-cutoff systems prevent motor burnout during heavy-load operations
Standard container compatibility simplifies integration with existing mine logistics systems
Maintenance-free operation with no engine oil changes and simplified electrical components
Contact our engineers for custom configurations including tire upgrades and cabin options
