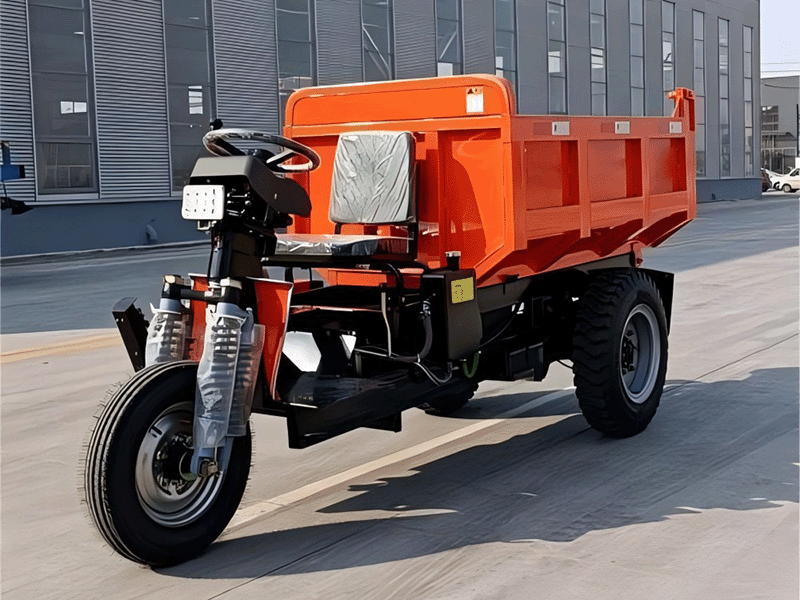

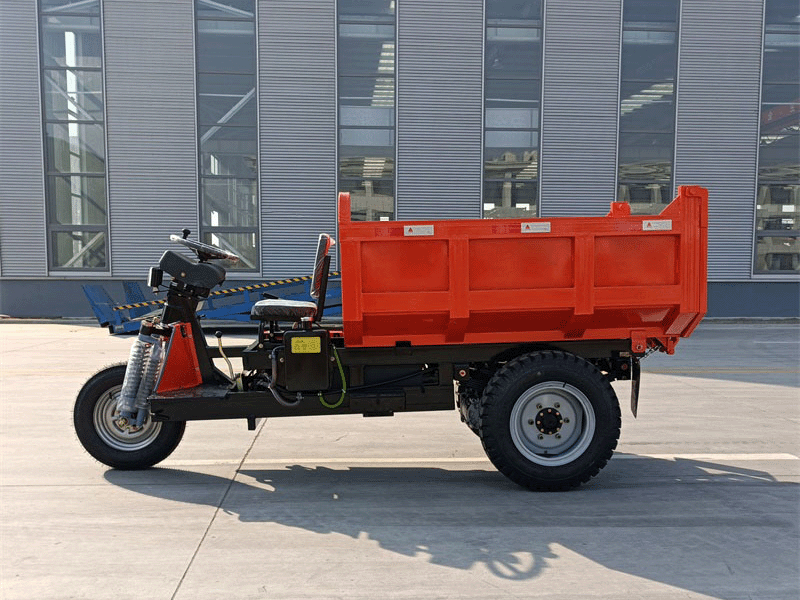

D20 Electric Mining Tricycle
- Scientific Customization: Roadway-Optimized Vehicle Tuning
- Thick and Solid Materials: Mining-Reinforced Structural Build
- Waterproof Design: Sedan-Grade Water-Proof Wiring
- Brand Engine: High-Torque Engineered Powertrains
2-TON MINING ELECTRIC TRICYCLE
Industrial-Grade Hauler for Heavy Material Transport in Confined Spaces
Product Overview
Engineered for maximum payload efficiency in mining operations, our D20 model delivers 2000kg rated capacity with optimized 3500×1380×1250mm dimensions. Featuring advanced 72V/5KW AC powertrain and reinforced chassis, it operates 10-12 hours per charge while eliminating tunnel air pollution.
Technical Specifications
| Model | D20 |
| Trunk volume | 1.1m³ |
| Rated load capacity | 2000kg |
| Unloading height | 2250mm |
| Loading height | 1250mm |
| Ground clearance | ≥240mm |
| Turning radius | ≤4800mm |
| Gradeability (Heavy Load) | ≤6° |
| Maximum lifting angle | 45±2° |
| Top speed | 25km/h |
| Motor power | AC 5KW |
| Voltage | 72V |
| Battery configuration | 9×8V/150Ah maintenance-free |
| Dimensions (L×W×H) | 3500×1380×1250mm |
| Wheelbase | 1350mm |
| Machine weight | 1160kg |
| Cargo box thickness | 3mm reinforced steel |
| Container compatibility | 2000×1380×450mm |
Key Features
Heavy-Duty Construction
3mm reinforced steel cargo box with double-layer chassis frame, 9-layer main leaf springs, and 1160kg counterweight design ensure structural integrity under 2000kg payloads.
Optimized Tunnel Navigation
4800mm turning radius and 1380mm narrow width enable operation in 2.2m wide mine tunnels. 240mm ground clearance handles uneven terrain while hydraulic steering reduces operator effort.
Intelligent Power System
5KW AC motor delivers 180N·m torque for 6° slope climbing with full load. Battery protection system prevents over-discharge during continuous operation, extending battery life by 30%.
Ergonomic Material Handling

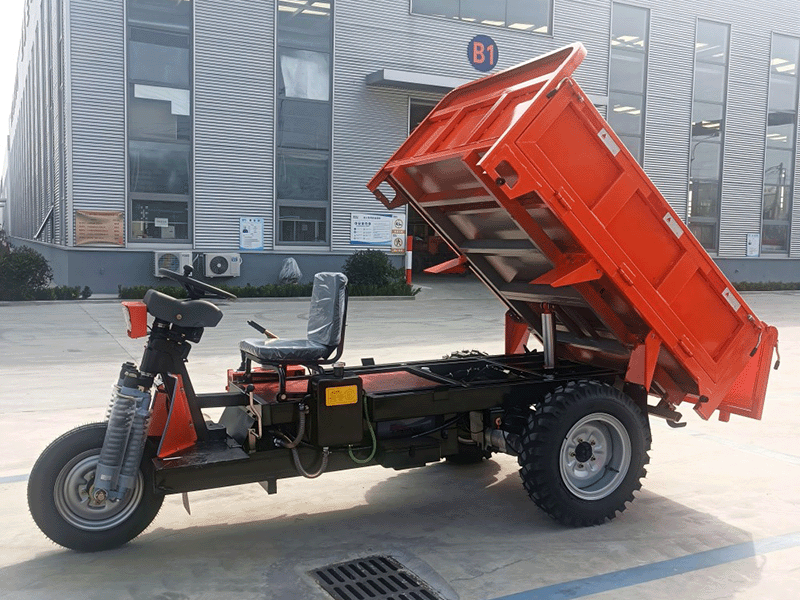

1250mm loading height reduces worker fatigue, 45° hydraulic tipping enables complete discharge in 18 seconds. 2250mm unloading height matches standard mine carts.
Operational Benefits
IP67 waterproof system operates reliably in flooded tunnels and 95% humidity environments with automatic moisture drainage
Regenerative braking recovers 15-20% energy during descent, extending operating range to 70-90km per charge
Dual safety systems: automatic brake engagement on slopes >5° + emergency hydraulic lock for cargo box
Standardized container interfaces reduce loading time by 40% compared to manual handling
Maintenance-free design: sealed bearings + brushless motor eliminate lubrication needs for 10,000+ hour service life
Custom configurations available: lithium battery upgrade, cabin options, and special terrain tires
