Welcome to Changsha Mining Equipment Co., Ltd.

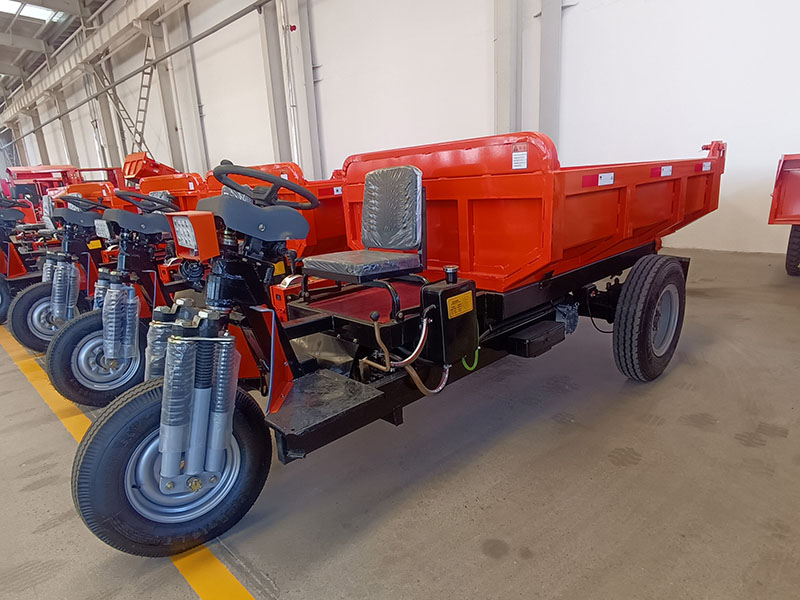

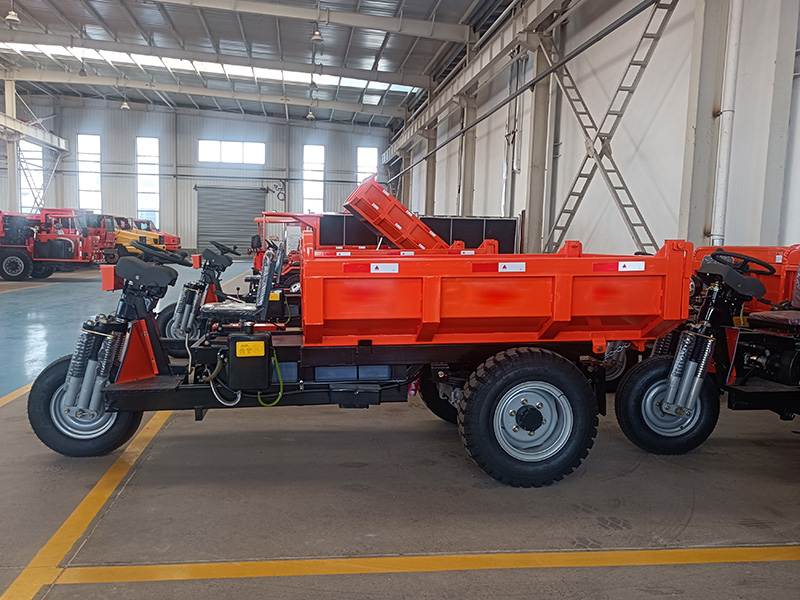

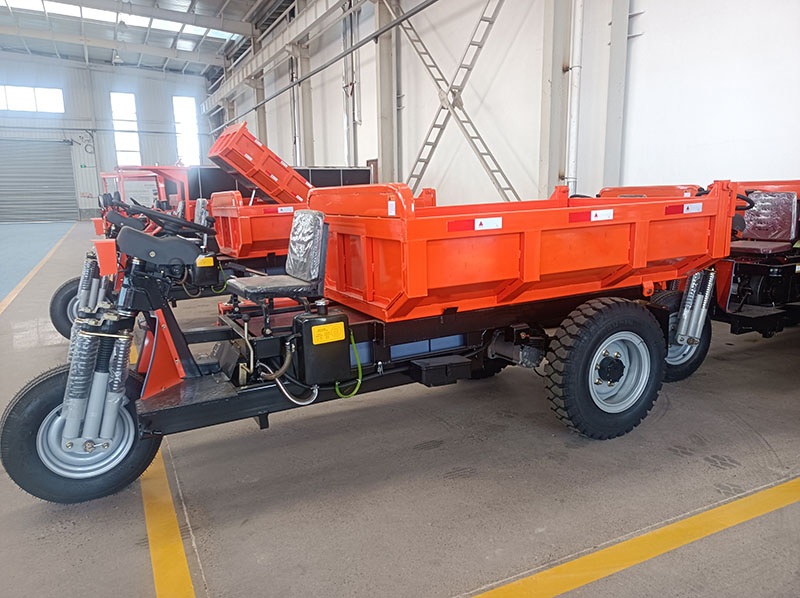

D30 Electric Mining Tricycle
- Scientific Customization: Roadway-Optimized Vehicle Tuning
- Thick and Solid Materials: Mining-Reinforced Structural Build
- Waterproof Design: Sedan-Grade Water-Proof Wiring
- Brand Engine: High-Torque Engineered Powertrains
3-TON MINING ELECTRIC TRICYCLE
Premium Electric Hauler Designed for Tough Mining Environments
Product Overview
Our industrial-grade 3-ton mining electric tricycle is engineered for maximum payload capacity, exceptional durability, and unmatched maneuverability in challenging mining conditions. With zero emissions and superior performance, it's the sustainable solution for modern mining operations.
Technical Specifications
| Model | D30 |
| Trunk volume | 1.2m³ |
| Rated load capacity | 3000kg |
| Unloading height | 2350mm |
| Loading height | 1250mm |
| Ground clearance | ≥240mm |
| Turning radius | ≤4900mm |
| Gradeability (Heavy Load) | ≤6° |
| Maximum lifting angle | 45±2° |
| Top speed | 25km/h |
| Motor power | AC 10KW |
| Voltage | 72V |
| Dimensions (L×W×H) | 3700×1380×1250mm |
| Wheelbase | 1380mm |
| Machine weight | 1320kg |
| Cargo box sheet thickness | 3mm |
Key Features
Robust Construction
Built with reinforced 3mm steel cargo box and heavy-duty frame to withstand harsh mining environments. Industrial-grade components ensure longevity under demanding conditions.
Exceptional Load Handling
With a rated capacity of 3000kg and optimal loading/unloading heights, this tricycle offers efficient material transport. 45° maximum tipping angle ensures complete material discharge.
Enhanced Maneuverability
Compact wheelbase of 1380mm and tight turning radius (≤4900mm) allow navigation through narrow mine passages. High ground clearance (≥240mm) tackles rough terrain with ease.
Powerful Electric Motor
Equipped with an efficient 10KW AC motor operating at 72V, providing ample torque for inclines (6° gradeability) while offering emission-free operation in underground environments.
Operational Benefits
Cost-efficient operation with no fuel expenses and minimal maintenance requirements
Silent operation enhances work environment and safety communication
Excellent stability with low center of gravity design and 1320kg base weight
Standard container compatibility with outer dimensions of 2200×1380×450mm
Ergonomic controls and 25km/h top speed provide efficient material transport
Contact our mining equipment specialists for customized solutions
