JK2.5 Single Rope Winding Shaft Hoist
- Vertical Shaft Hoisting
- Personnel Material Transport
- Motor-Reducer Power Transmission
- Electrical Speed Control
PREMIUM MODEL
JK2.5 Single Rope Winding Shaft Hoist
Heavy-Duty Hoisting Solution for Industrial Mining
Application Scope
The JK(B) Type Single Rope Winding Hoist is engineered for demanding applications in coal, metal, and non-metal mines. Specifically designed for vertical and inclined shafts, it efficiently handles lifting of coal materials, personnel transport, and lowering of heavy equipment and materials with exceptional reliability.
Working Principle
Utilizing a robust motor-transmission system, power is efficiently transferred to the wire rope-wound reel, enabling precise container movement. The JK2.5 features advanced electrical speed control and hydraulic disc braking systems. Its integrated machine-electrical-hydraulic control system incorporates multiple sensors and components for comprehensive monitoring and protection. Real-time data transmission is facilitated through cutting-edge computer networking technology, ensuring operational excellence.
Enhanced Features
Heavy-Duty Capacity
Engineered for 90kN maximum static tension and heavy-load operations.
Optimized Speed Control
Precision speed adjustment with multiple options (3.1-4.9 m/s).
Industrial Safety
Advanced hydraulic disc brakes and redundant safety systems.
Smart Diagnostics
Integrated sensors for real-time performance monitoring and predictive maintenance.
Main Shaft Device

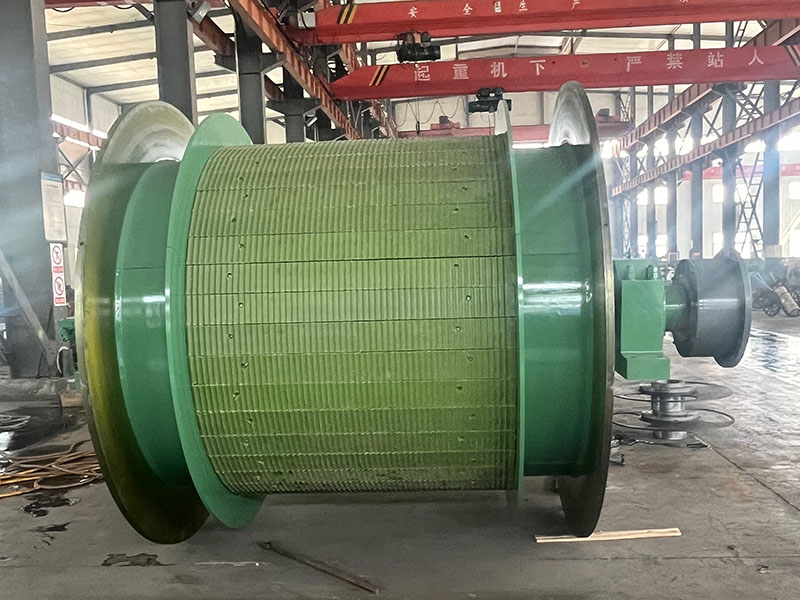

The reinforced main shaft assembly serves as the operational core and primary load-bearing structure of the JK2.5 hoist. Designed to withstand extreme operational stresses, it efficiently manages torque distribution and wire rope winding under heavy loads. Precision-engineered components include:
2500mm
Drum Diameter
31mm
Wire Rope
500kW
Max Power
Additional high-performance elements include reinforced bearings, specialized support wheels, wear-resistant liners, and military-grade bolt assemblies for maximum durability.
Technical Specifications
| Parameter | Model JK-2.5×2.0 / JK-2.5×2.0P | Model JK-2.5×2.3 / JK-2.5×2.3P |
|---|---|---|
| Drum | Number: 1 pcs Diameter: 2500 mm | |
| Drum Width (mm) | 2000 | 2300 |
| Maximum Static Tension (kN) | 90 | |
| Lifting Height/Transport Length - One Layer (m) | 447 | 518 |
| Lifting Height/Transport Length - Two Layer (m) | 911 | 1054 |
| Lifting Height/Transport Length - Three Layer (m) | 1384 | 1600 |
| Steel Wire Rope Diameter (mm) | 31 | |
| Speed (m/s) | 3.1, 3.5, 3.8, 4.9 | |
| Speed Ratio (i) | 20, 25, 28, 31.5 | |
| Motor Power (kW) | 320, 400, 400, 500 | |
| Motor Speed (r/min) | ≤750 | |
| Overall Dimensions (m) | 10.3×9.0×3.0 | 10.6×9.0×3.0 |
| Weight (kg) | 38000 | 39700 |
Advanced Engineering
High-Torque Transmission Hydraulic Disc Brakes Precision Control System Remote Monitoring Heavy-Duty Construction
The JK2.5 series incorporates our latest engineering innovations including vibration-dampening reel technology, thermal monitoring systems, and corrosion-resistant coatings for extended service life in harsh mining environments.
