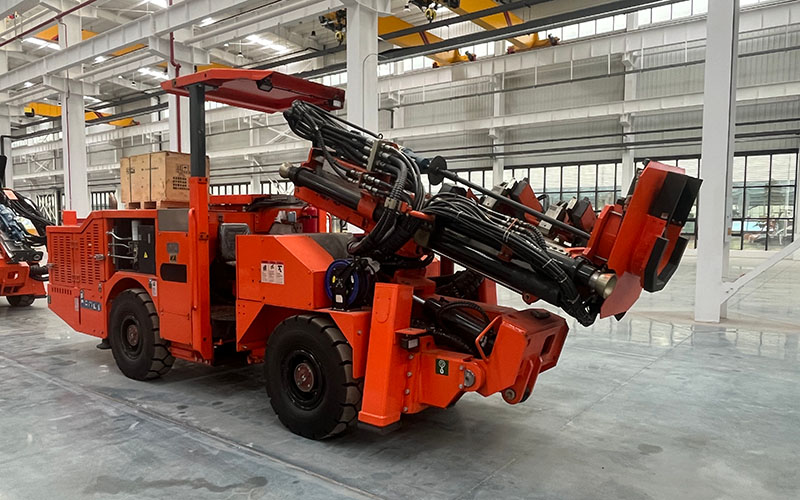

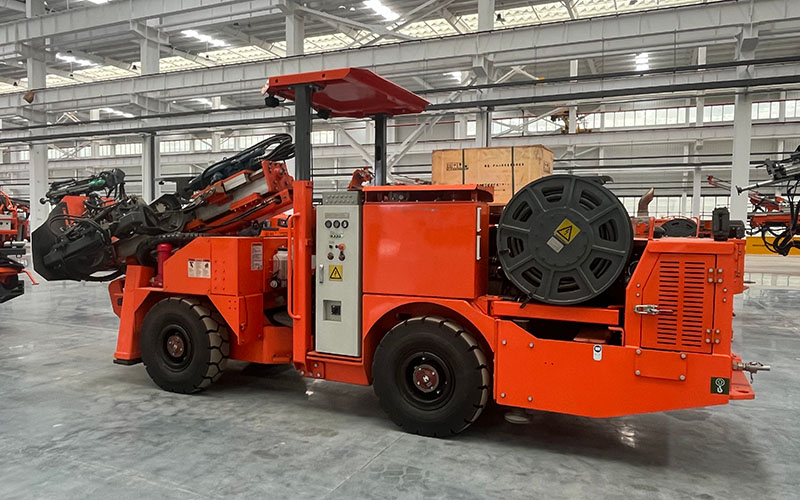

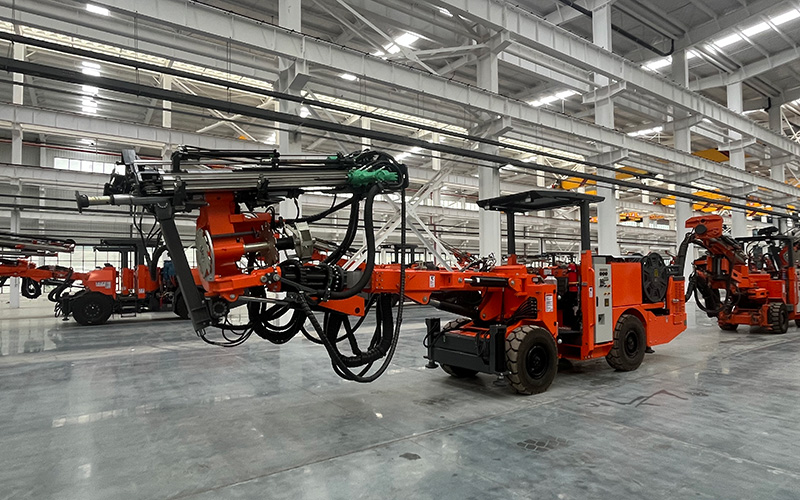

DD2 Hydraulic Drill Jumbo
- Extended boom for wider reach
- High-performance 22kW rock drill
- Agile four-wheel drive system

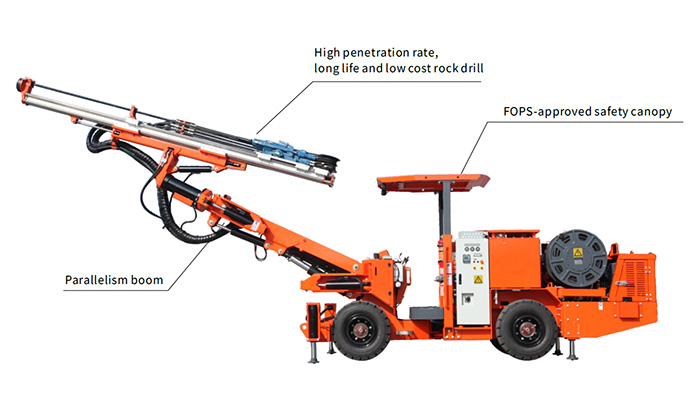

- Precision hydraulic parallel motion
MODEL DD2
Hydraulic Drill Jumbo
Advanced Performance • Extended Boom • Superior Versatility
Product Overview
The DD2 hydraulic drill jumbo is an upgraded model based on our standard design, featuring an extended boom structure. With its narrow body and telescopic boom, the machine is capable of working efficiently in both confined tunnels of 2.6–3 meters and larger mining chambers of 3–6 meters. This versatility makes it ideal for a wide range of underground mining applications.
Equipped with a high-performance 22kW Swedish rock drill, the DD2 delivers a drilling speed of 0.8–2m/min, ensuring reliable performance under various rock conditions. Its diesel engine, four-wheel drive system, and articulated chassis allow smooth operation and excellent maneuverability, even in narrow turns and complex tunnel layouts.
Compact Design
Narrow body for confined spaces and tight turns
Telescopic Boom
Extended reach for versatile applications
High Performance
22kW rock drill with 0.8-2m/min drilling speed
Advanced Control
Hydraulic parallel motion for precision drilling
Technical Specifications
| Dimensions | |
|---|---|

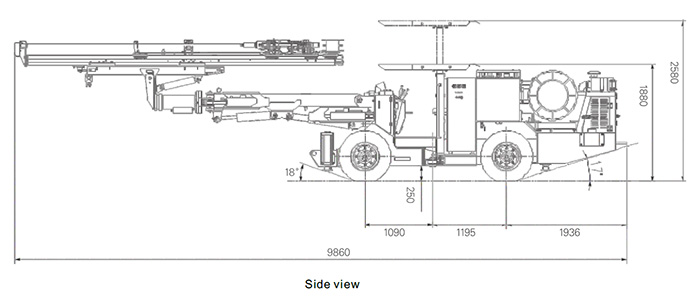

| L*W*H(mm) | 9860 * 1390 * 1880/2580 |
| Ground Clearance(mm) | 250 |
| Total Weight(kg) | 8600 |

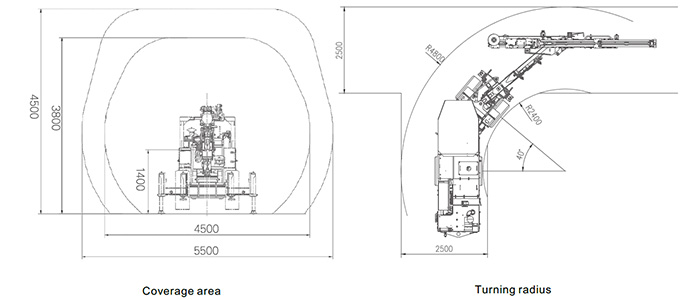

| Turning Radius(mm) | 2400/4800 |
| Traveling Speed(km/h) | 10 |
| Rock Drill | |
| Model | A18D/L - S20D/L |
| Shank | T38 - T38 |
| Hole Diameter(mm) | 33-76 - 43-64 |
| Max Impact Power(kw) | 18 - 20 |
| Impact Frequency(Hz) | 60 - 67 |
| System Pressure(Bar) | 230 - 220 |
| Feed | |
| Model | TF-14R - TF-12R |
| Total Length(mm) | 6158 - 5558 |
| Drill Rod Length(mm) | 4305 - 3700 |
| Drill Depth(mm) | 4000 - 3400 |
| Total Weight(Kg) | 600 - 575 |
| Propulsion(kN) | 15 - 15 |
| Systems | |
| Air Compressor Type | Screw |
| Water System Type | Centrifugal |
| Hydraulic System Pressure | 230bar |
Applications
The DD2 Drill Jumbo excels in various demanding environments and applications:
Underground mining operations
Narrow vein mining applications
Tunnel construction and development
Hydropower project construction
Mining chamber excavation
Key Advantages
Choosing our DD2 Drill Jumbo means opting for superior performance and value:
Enhanced Productivity
Higher drilling speeds reduce project timelines
Cost Efficiency
Lower operating costs and energy consumption
Operational Safety
Advanced controls and safety features
Exceptional Versatility
Adapts to both confined and large spaces
