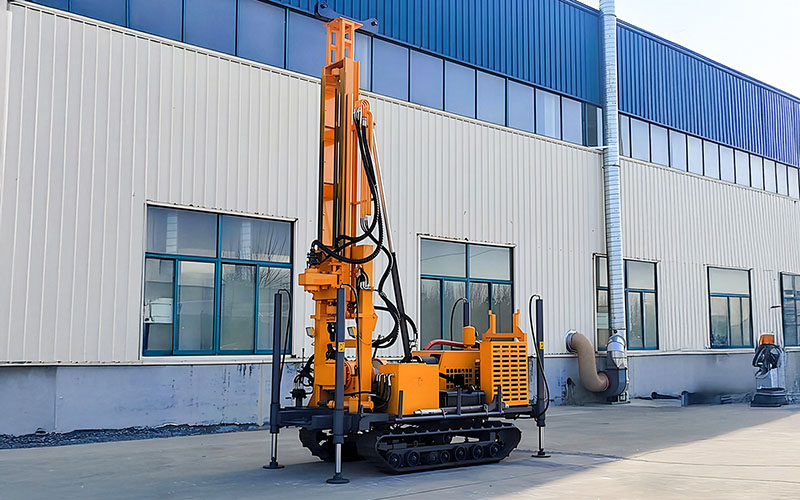

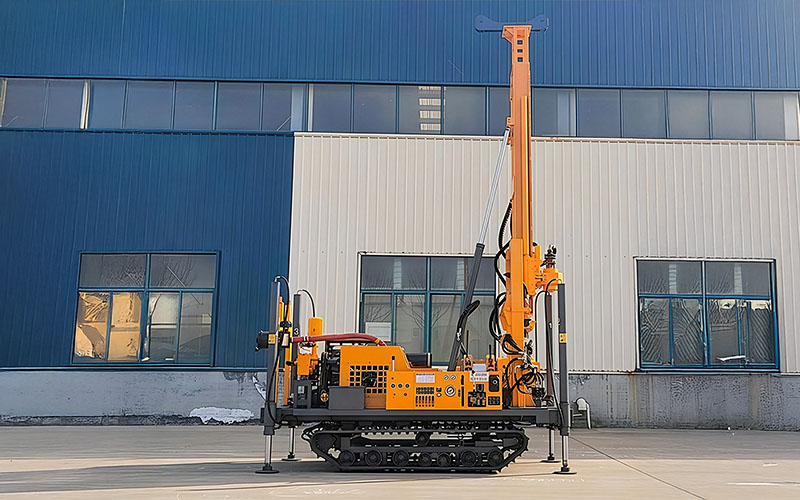

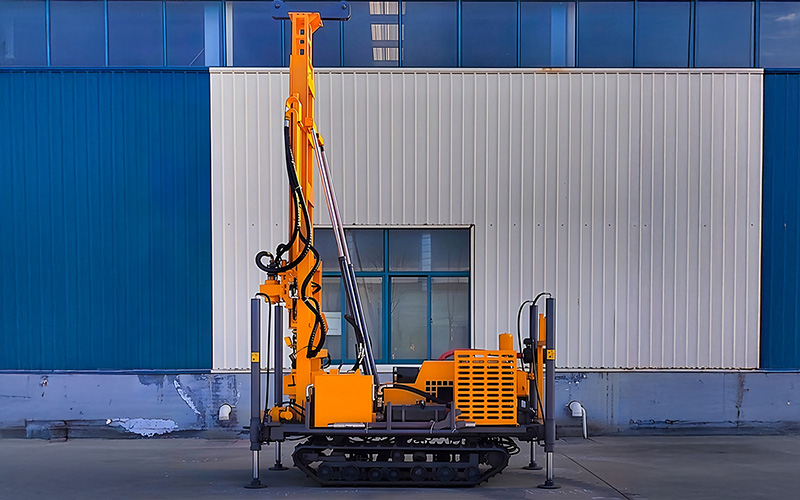

TRD-280 Top-drive Rotary‑Percussive Water‑Air Dual‑Use Drill Rig
- Water-air dual-use drilling
- 9800 N·m power head torque
- Rubber crawler with 4 legs
- 450m mud, 280m DTH depth
TRD-280 Top-drive Rotary‑Percussive
Water‑Air Dual‑Use Drill Rig
Mechanical top‑drive · mud & DTH · for loose soil & bedrock (F6‑20)
⚡ TRD-280 integrates mud rotary and DTH air hammer drilling in one mechanical top‑drive system. It overcomes the difficulty of air DTH in loose overburden and low efficiency of mud drilling in hard rock, gravel and boulders. Ideal for water well drilling, geotechnical investigation and core extraction with high efficiency.
Key features
▸Rubber steel crawler chassis — strong off‑road, no pavement damage
▸4 hydraulic high‑legs — self‑loading/unloading, easy leveling
▸Drill rod rack — integrated, ergonomic design
▸Auxiliary breakout cylinder — effortless rod loosening
▸Direct universal shaft drive — better climbing & traction
▸Automotive transmission + hydraulic release — smooth shifting, high reliability
Technical specifications
Drill model & capacity
core specsModelTRD-280
Hole diameter75 – 350 mm
Mud drilling depth450 m
Pneumatic (DTH) depth280 m
NQ wireline coring500 m
Drilling angle— (vertical)
Working formationLoose soil & bedrock (F6–20)
Drilling methodTop‑drive mechanical rotary + hydraulic thrust; mud / DTH
Power unit
Engine modelYN27
Rated power42 kW
Rated speed2400 r/min
Power head
Rotary speed33 – 1120 r/min
Torque9800 N·m
Stroke2300 mm
Feed system
Lifting force100 kN
Thrust force50 kN
Winch & drill rod
Mechanical winch (single rope)4.5 T
Rod diameter optionsφ50 / φ60 / φ76 / φ89 mm
Rod length2000 mm
Crawler chassis
Travel speed0 – 2 km/h
Climbing ability25° – 30°
Dimensions & weight
Transport
L×W×H4600×1900×2540 mm
Working
L×W×H3800×2200×5700 mm
Machine weight3500 kg
Matching air compressor
Total air consumption16 – 35 m³/min
Working air pressure10.5 – 24.6 bar
📋 Request a Quote
⚡ Quick response · global shipping
FAQ — TRD-280
What is the maximum drilling depth with mud circulation?
Up to 450 meters for mud drilling. For pneumatic DTH hammer the depth is 280 m. NQ wireline coring reaches 500 m.
What formations can the TRD-280 handle?
Loose soil and bedrock with hardness F6 to F20. The dual‑use design works efficiently in overburden, gravel, boulders and hard rock.
What air compressor is required?
Total air consumption 16–35 m³/min at working pressure 10.5–24.6 bar. Compressor should match DTH hammer size.
What is the torque and lifting capacity?
Power head torque: 9800 N·m. Feed lifting force 100 kN, thrust 50 kN. Mechanical winch rated 4.5 ton.
Which drill rod diameters are compatible?
φ50, φ60, φ76, φ89 mm rods, all with 2000 mm length. The rig includes an auxiliary breakout cylinder for rod handling.
What are the transport dimensions and weight?
Transport: 4600×1900×2540 mm. Working: 3800×2200×5700 mm. Machine weight 3500 kg. Rubber crawler chassis, 25°–30° climbing.
