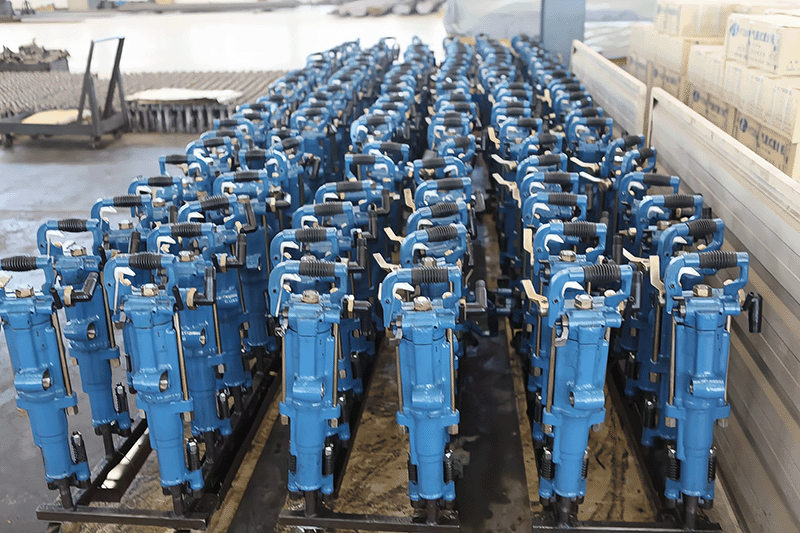

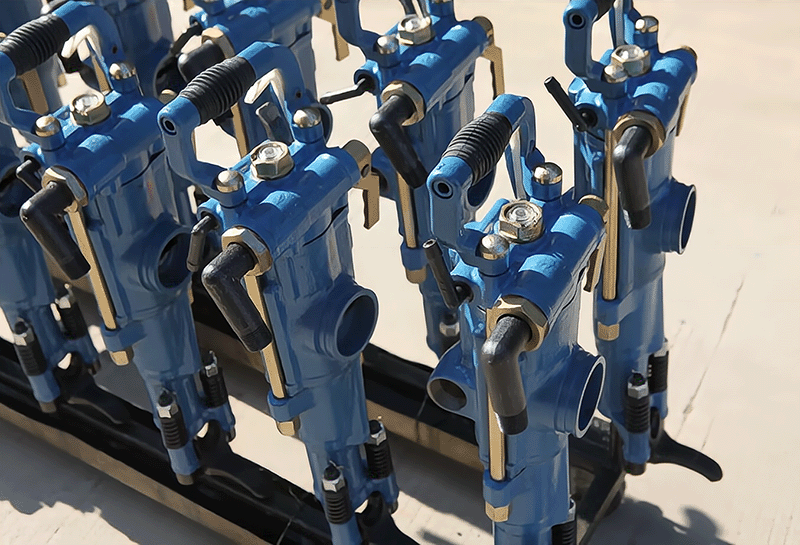

YT23D Rock Drill
- High-efficiency drilling machinery
- 34-42mm blast hole & 5m depth
- FT160BD/BC air leg compatibility
- Transparent oil reservoir lubrication
YT23D Air Leg Rock Drill
The most energy-efficient model in the YT Series for cost-effective soft rock excavation
Product Overview
The YT23D Air-Leg Rock Drill represents the pinnacle of energy efficiency in the YT Series, engineered specifically for soft rock formations and operations where compressor capacity is limited. With an exceptionally low air consumption of just ≤38 L/S - less than half of many comparable models - this specialized drill delivers reliable performance while significantly reducing operational costs. Weighing only 24 kg and maintaining the standard 5-meter drilling depth, the YT23D is the ideal solution for mining operations, tunnel development, and construction projects in softer geological conditions where energy efficiency is a critical factor.
Key Features & Performance
Unmatched Energy Efficiency
Features the lowest air consumption in the entire YT Series at ≤38 L/S - less than half of standard models - dramatically reducing operational costs and making it compatible with smaller compressors.
Specialized for Soft Rock Formations
Optimized with ≥45 J impact energy and ≥28 Hz impact frequency for efficient drilling in soft-to-medium rock formations (hardness coefficient: f=3-8), where excessive power would be wasteful.
Cost-Saving Operation
Reduced air consumption translates directly to lower energy costs - potentially saving thousands in operational expenses over the equipment's lifetime, especially in continuous operation environments.
Compact & Maneuverable Design
At just 24 kg with a 668mm length, it offers excellent maneuverability for confined spaces and overhead work while maintaining the durability expected from the YT Series.
Universal Compatibility
Maintains standard 34-42 mm drill diameter and 5 meter depth capability, ensuring compatibility with existing accessories and operational procedures across the YT Series.
Reliable Performance
Despite its efficiency focus, features the same hardened components and precision engineering as other YT Series models, ensuring dependable operation and extended service life in appropriate applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | YT23D |
| Weight (kg) | 24 |
| Length (mm) | 668 |
| Cylinder Dia*Stroke (mm) | 70 * 70 |
| Working Pressure (Mpa) | 0.4-0.63 |
| Impact Energy (J) | ≥45 |
| Impact Frequency (Hz) | ≥28 |
| Air Consumption (L/S) | ≤38 MOST EFFICIENT |
| Hose Size (mm) | 25 |
| Rock Drill Hose Diameter (mm) | 34-42 |
| Rock Drill Hose Depth (m) | 5 |
| Shank Size (mm) | 22×108 |
Ideal Applications
The YT23D is specifically engineered for applications where energy efficiency and cost-effectiveness are paramount. Its optimized power profile makes it the perfect choice for soft rock formations where higher-power models would consume unnecessary energy and create excessive wear.
≤38 L/S
Lowest Air Consumption
40-50%
Energy Savings
5 m
Effective Depth
f=3-8
Optimal Rock Hardness
Perfect For These Scenarios
Soft Rock Mining
Coal, limestone, and other soft formations
Cost-Sensitive Operations
Reduced energy costs for better ROI
Small Compressor Setups
Compatible with limited air supply systems
Sustainable Operations
Lower carbon footprint for eco-conscious sites
Maximize Your Operational Efficiency
The YT23D delivers exceptional value for soft rock excavation with unmatched energy efficiency.
