YT24 Rock Drill
- High-efficiency drilling machinery
- 34-42mm blast hole & 5m depth

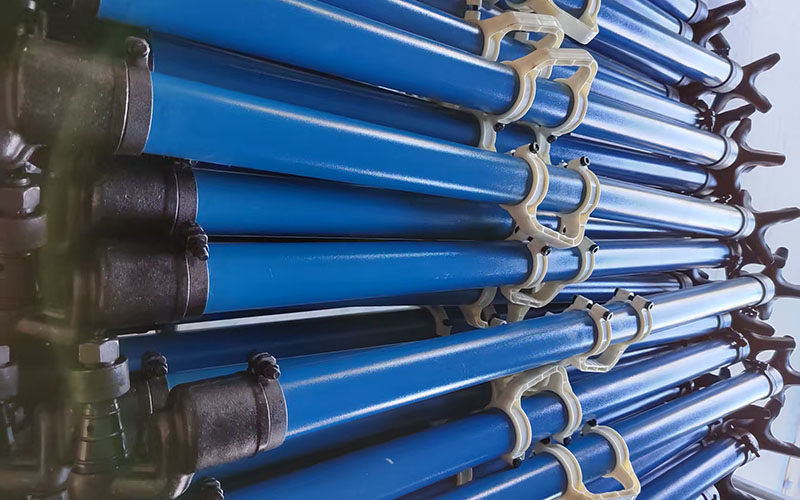

- FT160BD/BC air leg compatibility

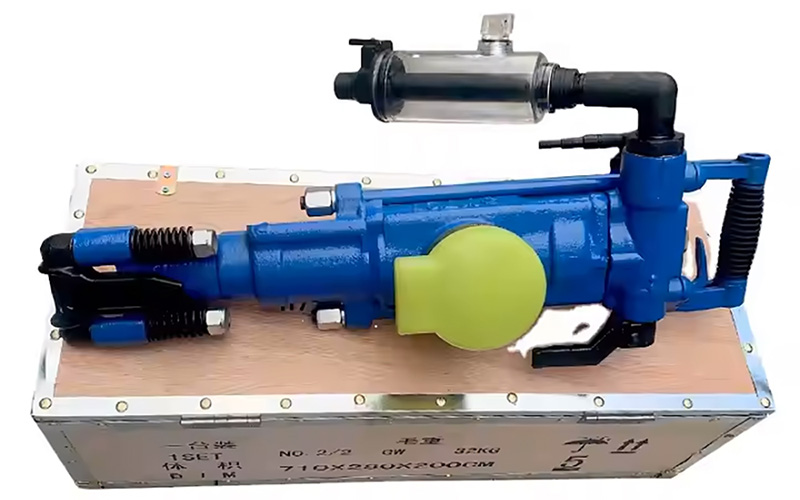

- Transparent oil reservoir lubrication

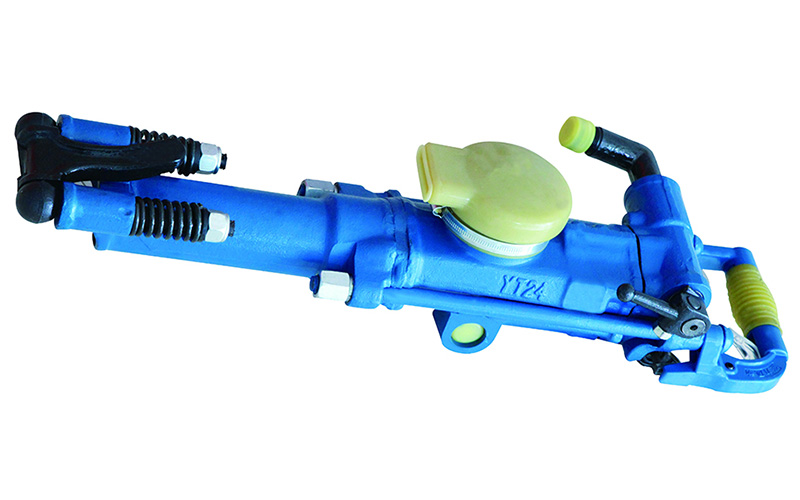

YT24 Air Leg Rock Drill
The lightest model in the YT Series for superior maneuverability and reduced operator fatigue
Product Overview
The YT24 Air-Leg Rock Drill is the most maneuverable and operator-friendly model in the acclaimed YT Series, engineered specifically for applications where portability and reduced operator fatigue are critical considerations. Weighing in at just 24 kg - the lightest in the series - this compact powerhouse delivers reliable performance for medium-hard rock formations while offering exceptional ease of use in confined spaces and extended operation scenarios. The YT24 is the ideal solution for mining operations, tunnel development, and construction projects where agility and operator comfort are as important as drilling performance.
Key Features & Performance
Unmatched Portability
At just 24 kg, it's the lightest model in the YT Series, reducing operator fatigue during extended shifts and making it ideal for overhead and confined space operations where maneuverability is critical.
Optimized for Medium Rock Formations
Engineered with a 70×70 mm cylinder configuration to deliver optimal performance in medium-hard rock formations (hardness coefficient: f=6-12), balancing power with precision.
Energy Efficient Operation
Features the lowest air consumption in the series at ≤67 L/S, making it ideal for operations with limited compressor capacity or where energy efficiency is a priority.
Extended Service Life
Despite its compact size, features hardened components and precision engineering that ensure reliable performance and extended service life even in demanding operational environments.
Universal Compatibility
Maintains standard 34-42 mm drill diameter and 5 meter depth capability, ensuring compatibility with existing accessories and operational procedures across the YT Series.
Operator-Centric Design
Ergonomic layout with balanced weight distribution reduces vibration transmission and operator fatigue, enabling longer productive shifts with improved safety and precision.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | YT24 |
| Weight (kg) | 24 LIGHTEST IN SERIES |
| Length (mm) | 678 |
| Cylinder Dia*Stroke (mm) | 70 * 70 |
| Working Pressure (Mpa) | 0.4-0.63 |
| Impact Energy (J) | ≥65 |
| Impact Frequency (Hz) | ≥31 |
| Air Consumption (L/S) | ≤67 |
| Hose Size (mm) | 25 |
| Rock Drill Hose Diameter (mm) | 34-42 |
| Rock Drill Hose Depth (m) | 5 |
| Shank Size (mm) | 22×108 |
Ideal Applications
The YT24 is specifically engineered for applications where operator comfort, maneuverability, and energy efficiency are paramount. Its optimized power profile makes it the perfect choice for medium-hard rock formations where the full power of larger models would be unnecessary.
24 kg
Lightest Model
5 m
Effective Depth
≤67 L/S
Lowest Air Consumption
f=6-12
Optimal Rock Hardness
Perfect For These Scenarios
Confined Spaces
Narrow tunnels & restricted access areas
Extended Operations
Reduced fatigue for longer productive shifts
Energy-Conscious Sites
Lower air consumption for cost efficiency
Medium Rock Formations
Optimized for f=6-12 rock hardness
Experience Unmatched Maneuverability
The YT24 delivers the perfect balance of power and portability for medium rock excavation challenges.
