YT27 Air Leg Rock Drill
- High-Efficiency Drilling
- Durable Construction & Easy Maintenance
- Versatile Applications
- Certified Quality & Safety

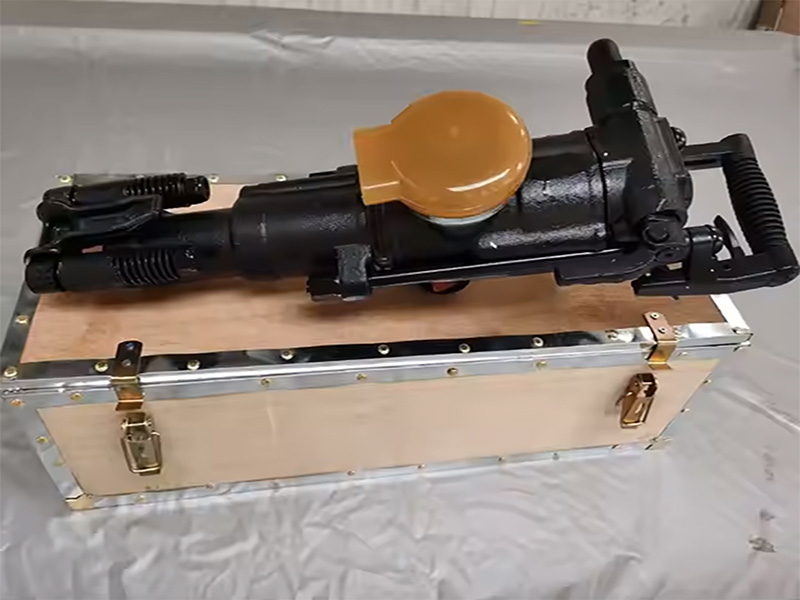

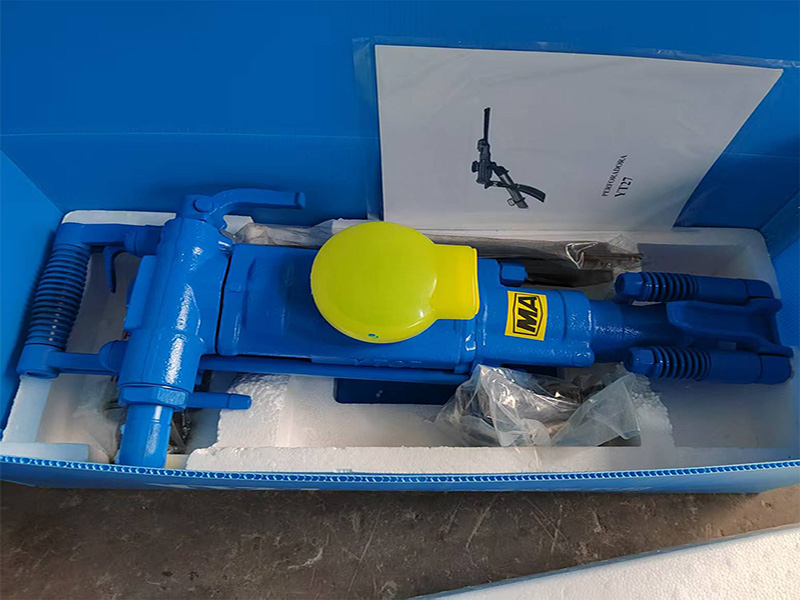

YT27 Air Leg Rock Drill
High-efficiency pneumatic drilling machine for demanding rock excavation
Product Overview
The YT27 Air-Leg Rock Drill is a high-efficiency pneumatic drilling machine engineered for the most demanding rock excavation environments. Primarily utilized in mining tunnel development, this robust equipment is equally effective in railway construction, water conservancy projects, and national defense stonework engineering applications. Its advanced design delivers exceptional performance in challenging geological conditions while maintaining operator comfort and safety.
Key Features & Performance
Advanced Drilling Capability
Operates with FY250 oiler and FT160A/FT160B air-leg systems for wet drilling in medium-to-hard rocks (hardness coefficient: f=8–18).
Precision Borehole Creation
Drills horizontal and inclined blast holes (34–42 mm diameter) with an effective depth of 5 meters.
Superior Performance
Excels in borehole flushing strength and delivers high rotational torque, outperforming comparable models in productivity.
Energy Efficiency
Features a flange control valve for precise airflow regulation, enhancing energy efficiency and reducing operational costs.
Modular Versatility
Detachable air-leg allows mounting on drilling carriages or frames for flexible deployment in various configurations.
Operator Comfort
Integrated silencer reduces noise pollution while centralized controls improve onsite maneuverability and reduce operator fatigue.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | YT27 |
| Weight (kg) | 27 |
| Length (mm) | 668 |
| Cylinder Dia*Stroke (mm) | 80 * 60 |
| Working Pressure (Mpa) | 0.4-0.63 |
| Impact Energy (J) | ≥75.5 |
| Impact Frequency (Hz) | ≥36.7 |
| Air Consumption (L/S) | ≤83.3 |
| Hose Size (mm) | 25 |
| Rock Drill Hose Diameter (mm) | 34-42 |
| Rock Drill Hose Depth (m) | 5 |
| Shank Size (mm) | 22×108 |
Optimized for Large-Scale Operations
Ideal for tunnel construction and major mining projects due to its lightweight design (27 kg), low vibration, and rapid drilling speed. The integrated silencer reduces noise pollution, while centralized controls improve onsite maneuverability.
27 kg
Lightweight Design
5 m
Effective Depth
f=8-18
Rock Hardness
0.4-0.63 MPa
Working Pressure
Primary Applications
Mining Tunnels
Primary application area
Railway Construction
Tunneling & infrastructure
Water Conservancy
Dam & reservoir projects
National Defense
Stonework engineering
Ready to Enhance Your Drilling Operations?
The YT27 Air Leg Rock Drill delivers unmatched performance for demanding rock excavation projects worldwide.
