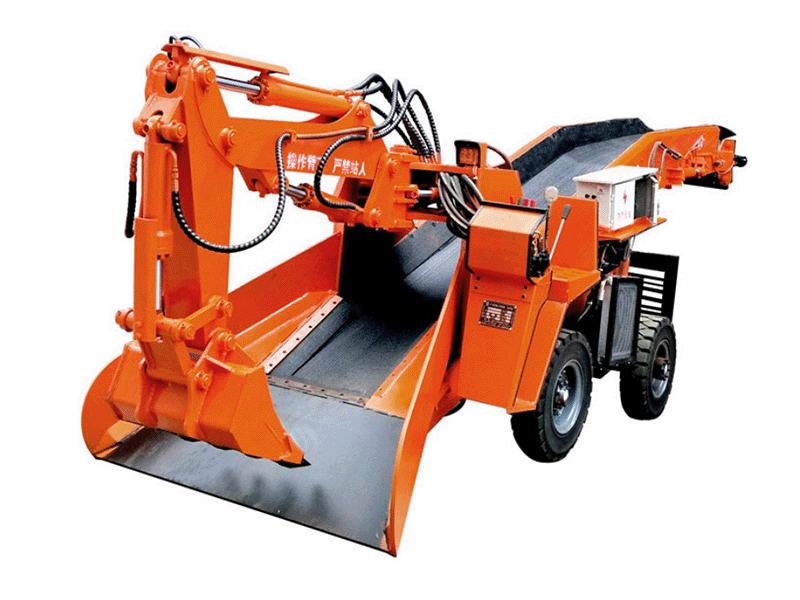

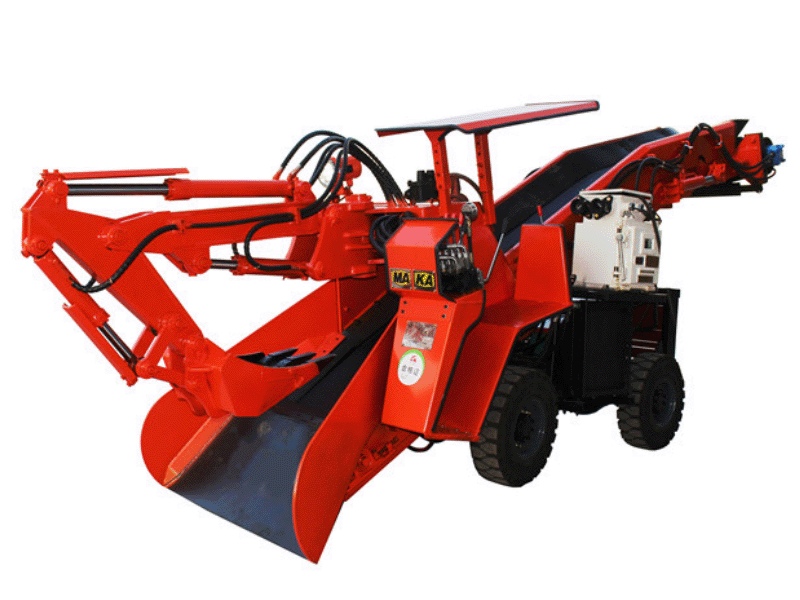

Explosion-proof Series Mucking Loader
- Certified Explosion Proof Motor System
- Ideal For Hazardous Coal Mines
- Compact Design For Tight Spaces
- Adjustable Discharge And Dumping Distance
Explosion-proof Series Wheeled Mucking Loader Overview
The Explosion-proof Series Mucking Loader is a specialized, high-safety mining machine engineered strictly for underground environments where explosive gases or combustible dust may be present (such as coal mines). Equipped with a highly mobile wheeled chassis and powered by certified explosion-proof electric motors (ranging from 15kw to 18.5kw), this equipment safely and continuously excavates, gathers, and loads muck or rock without the risk of ignition.
Working Principle
Operating with zero tailpipe emissions, this loader is driven by a strict explosion-proof electrical and hydraulic system. As it maneuvers forward at a steady 1.25 m/s on its wheeled chassis, the front digging mechanism actively scoops fragmented rocks. The gathered materials are then smoothly transferred onto the customized central conveyor system, transporting them upwards and backwards. Finally, the materials are discharged via the extendable dumping structure directly into shuttle cars, conveyors, or other transport vehicles behind the machine.
Application Environment
Designed primarily for underground tunneling and mining operations with high safety requirements, this series excels in constrained and hazardous workspaces.
Hazardous Mines: Fully adapted for coal mines and other environments requiring strict explosion-proof machinery.
Extremely Narrow Tunnels: The compact ZWY-60 model can operate seamlessly in roadway sections as small as 2.2m × 2.2m.
Inclined Terrain: Designed to maintain stability and traction, adapting to climbing grades of up to 15° on hardstands.
Core Product Features
Certified Safety: Utilizes a 15kw or 18.5kw explosion-proof motor to ensure absolute safety in volatile atmospheric conditions.
Compact & Agile: Excellent maneuverability with a minimum turning radius of ≤ 5m and lightweight design (3200 kg to 3800 kg), ideal for tight spaces.
High Productivity: Delivers a continuous loading mass of ≤ 60 m³/h to ≤ 80 m³/h, significantly accelerating underground mucking operations.
Versatile Discharging: Features adjustable discharge heights (up to 1700mm) and extendable dumping distances (up to 1700mm) to match various transport equipment.

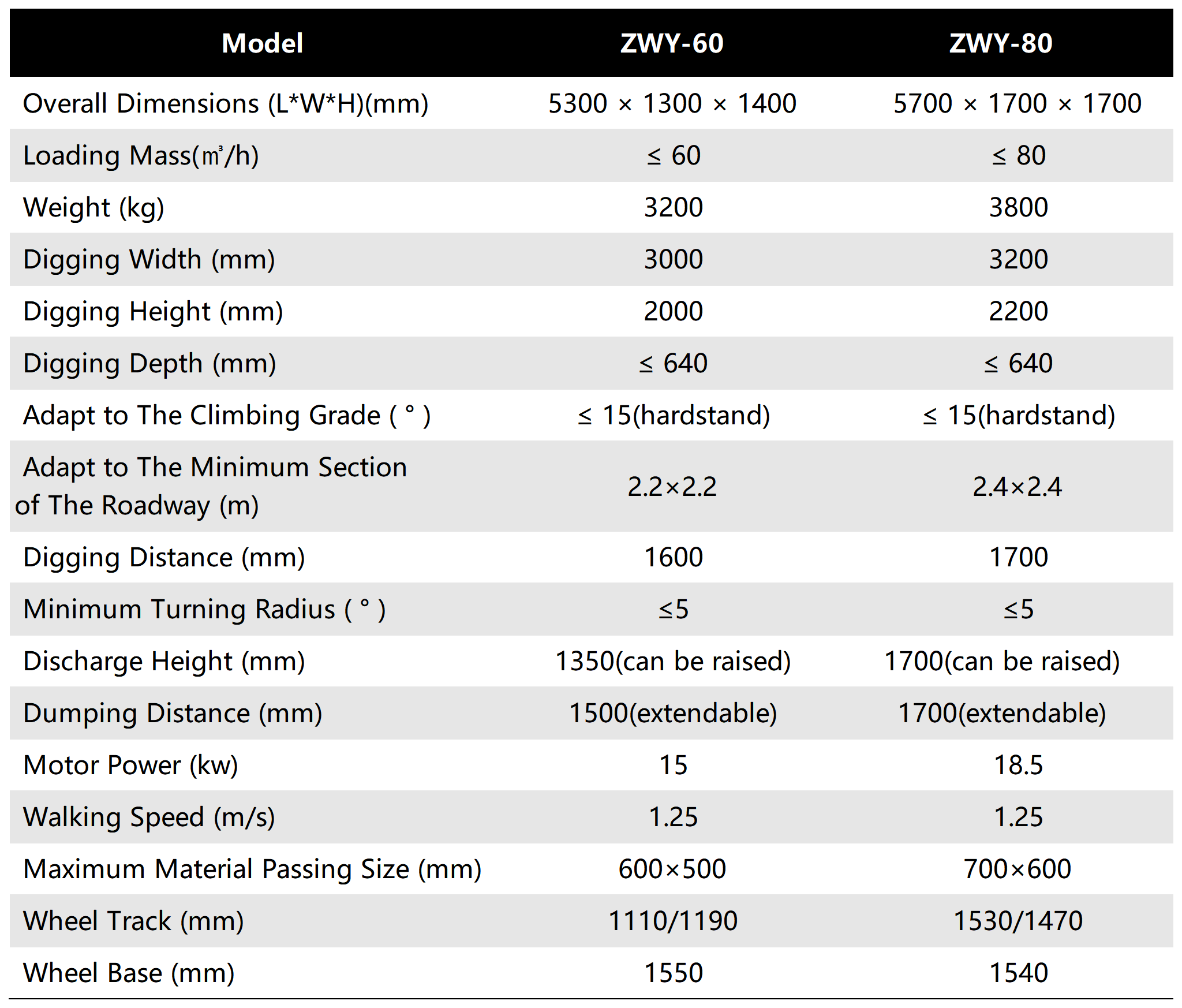

Technical Parameters
| Specification / Model | ZWY-60 | ZWY-80 |
|---|---|---|
| Overall Dimensions (L*W*H)(mm) | 5300 × 1300 × 1400 | 5700 × 1700 × 1700 |
| Loading Mass (m³/h) | ≤ 60 | ≤ 80 |
| Weight (kg) | 3200 | 3800 |
| Digging Width (mm) | 3000 | 3200 |
| Digging Height (mm) | 2000 | 2200 |
| Digging Depth (mm) | ≤ 640 | ≤ 640 |
| Adapt to Climbing Grade (°) | ≤ 15 (hardstand) | ≤ 15 (hardstand) |
| Min. Section of Roadway (m) | 2.2 × 2.2 | 2.4 × 2.4 |
| Digging Distance (mm) | 1600 | 1700 |
| Minimum Turning Radius (°) | ≤ 5 | ≤ 5 |
| Discharge Height (mm) | 1350 (can be raised) | 1700 (can be raised) |
| Dumping Distance (mm) | 1500 (extendable) | 1700 (extendable) |
| Motor Power (kw) | 15 | 18.5 |
| Walking Speed (m/s) | 1.25 | 1.25 |
| Max. Material Passing Size (mm) | 600 × 500 | 700 × 600 |
| Wheel Track (mm) | 1110 / 1190 | 1530 / 1470 |
| Wheel Base (mm) | 1550 | 1540 |
Frequently Asked Questions (FAQ)
Is this mucking loader suitable for narrow roadways?
Yes, it is designed for extremely compact spaces. The ZWY-60 model can operate in a minimum roadway section of just 2.2 × 2.2m.
What is the walking speed and mobility type?
This is a wheeled series mucking loader. Both the ZWY-60 and ZWY-80 models maintain a steady walking speed of 1.25 m/s with a minimum turning radius of ≤ 5m.
What is the loading capacity of the Explosion-proof Series?
The loading mass is ≤ 60 m³/h for the ZWY-60 model and ≤ 80 m³/h for the ZWY-80 model.
Can the discharge height and distance be adjusted?
Yes. Depending on the model, the discharge height can be raised (starting from 1350mm or 1700mm) and the dumping distance is extendable (starting from 1500mm or 1700mm).
