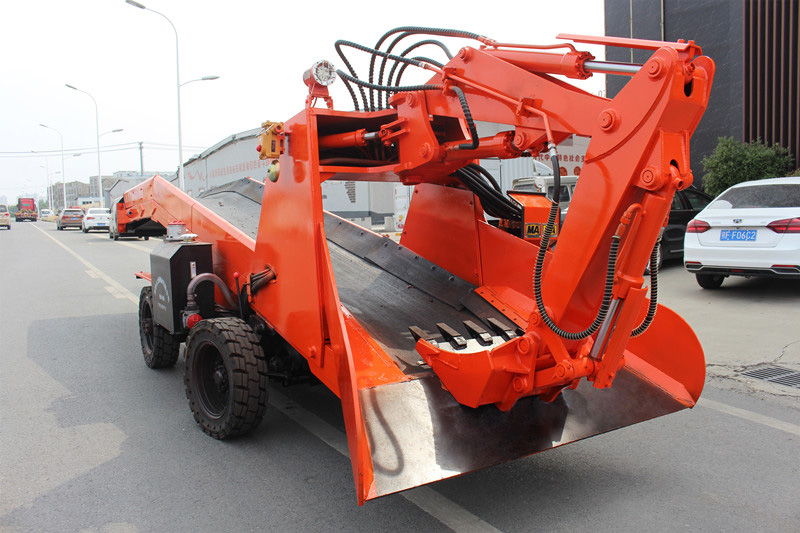

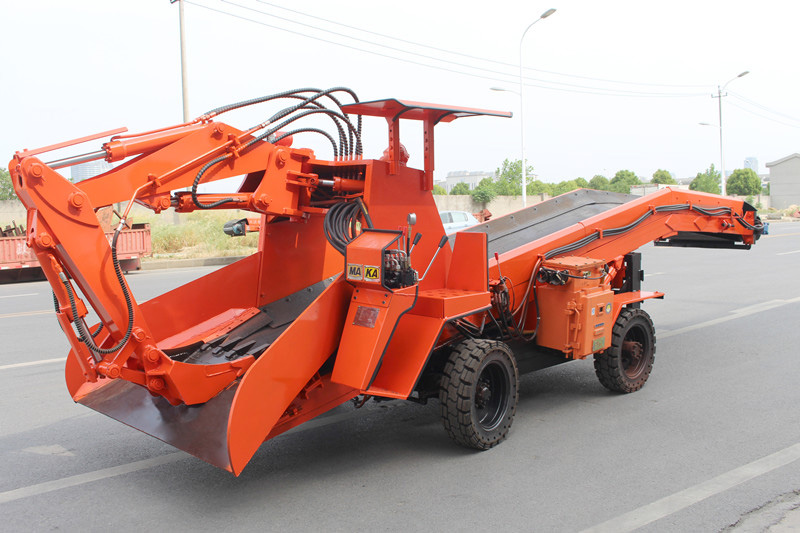

ZWY Series Wheel Belt Mucking Loader
- All-in-One Mucking Solution
- Adjustable Discharge Height
- Heavy-Duty Digging Arms
- Rubber Tyre Underground Mobility
Product Introduction
The ZWY Series Tire-Type Belt Mucking Loader is a high-efficiency, continuous-production heavy mining equipment. Engineered to combine excavation, loading, and transportation into a single machine, it is primarily used for narrow underground mining, tunneling operations, and municipal construction projects. Built with durability and performance in mind, this equipment significantly improves operational productivity while reducing manual labor.
Working Principle
The machine utilizes an advanced electro-hydraulic control system. The powerful front digging mechanism (bucket) is driven by the hydraulic system to actively gather scattered rocks, minerals, and slag. Once collected, the materials are smoothly transferred onto the central belt conveyor. The belt then rapidly transports the materials to the rear of the machine, discharging them directly into mining transport trucks, shuttle cars, or other conveying equipment.
Application Environment
Designed specifically for challenging underground conditions, the ZWY Series thrives in narrow and compact roadways.
Roadway Section: Highly adaptable to minimal roadway sections, ranging from 1.8 × 1.8 m (for ZWY-50) up to 3 × 3 m (for ZWY-120).
Climbing Grade: Capable of operating on hardstand surfaces with climbing grades up to 15° (model specific).
Working Scenarios: Ideal for coal mines, metal mines, hydropower tunnels, and other underground excavation projects.

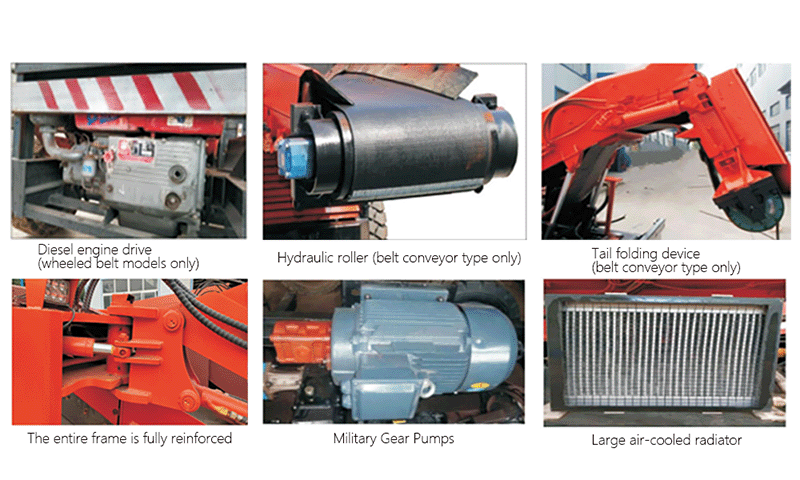

Product Features
High Efficiency Capacity: Offers excellent loading mass ranging from ≤50 m³/h to a massive ≤120 m³/h to meet various production needs.
Flexible Maneuverability: Features an ultra-compact minimum turning radius of ≤5m, allowing easy navigation in tight underground tunnels.
Customizable Configuration: Features an adjustable discharge height (can be raised up to 1750mm) and an extendable dumping distance (up to 3500mm).
Robust Power: Equipped with reliable motor power (up to 18.5 kw) ensuring steady walking speeds and deep digging depth capability.

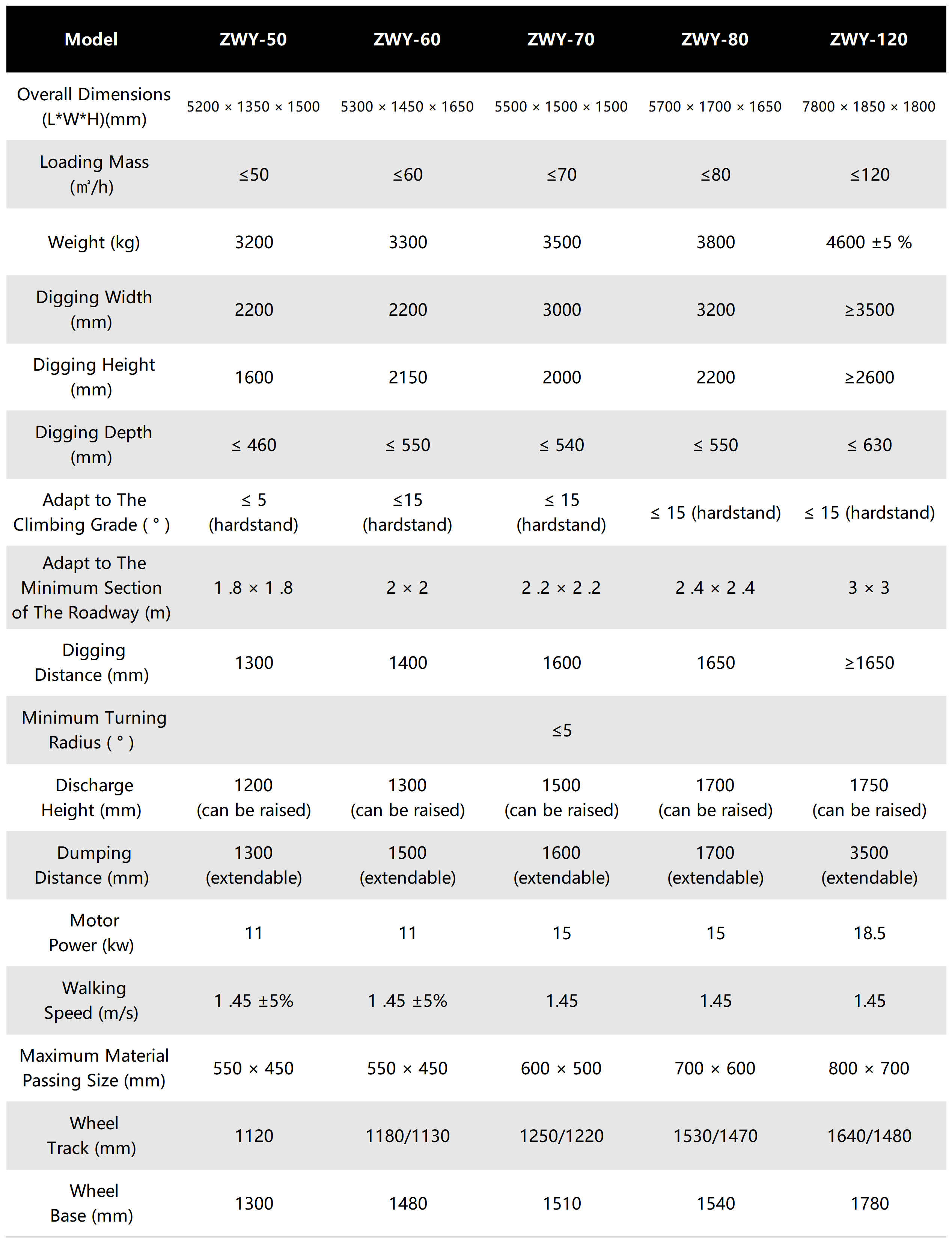

Technical Specifications
Explore the detailed parameters of our ZWY Series (ZWY-50 to ZWY-120) below to find the perfect fit for your mining project.
| Model | ZWY-50 | ZWY-60 | ZWY-70 | ZWY-80 | ZWY-120 |
|---|---|---|---|---|---|
| Overall Dimensions (L*W*H)(mm) | 5200 × 1350 × 1500 | 5300 × 1450 × 1650 | 5500 × 1500 × 1500 | 5700 × 1700 × 1650 | 7800 × 1850 × 1800 |
| Loading Mass (m³/h) | ≤50 | ≤60 | ≤70 | ≤80 | ≤120 |
| Weight (kg) | 3200 | 3300 | 3500 | 3800 | 4600 ± 5 % |
| Digging Width (mm) | 2200 | 2200 | 3000 | 3200 | ≥3500 |
| Digging Height (mm) | 1600 | 2150 | 2000 | 2200 | ≥2600 |
| Digging Depth (mm) | ≤ 460 | ≤ 550 | ≤ 540 | ≤ 550 | ≤ 630 |
| Adapt to The Climbing Grade (°) | ≤ 5 (hardstand) | ≤ 15 (hardstand) | ≤ 15 (hardstand) | ≤ 15 (hardstand) | ≤ 15 (hardstand) |
| Adapt to Minimum Section of Roadway (m) | 1.8 × 1.8 | 2 × 2 | 2.2 × 2.2 | 2.4 × 2.4 | 3 × 3 |
| Digging Distance (mm) | 1300 | 1400 | 1600 | 1650 | ≥1650 |
| Minimum Turning Radius (m) | ≤5 | ||||
| Discharge Height (mm) | 1200 (can be raised) | 1300 (can be raised) | 1500 (can be raised) | 1700 (can be raised) | 1750 (can be raised) |
| Dumping Distance (mm) | 1300 (extendable) | 1500 (extendable) | 1600 (extendable) | 1700 (extendable) | 3500 (extendable) |
| Motor Power (kw) | 11 | 11 | 15 | 15 | 18.5 |
| Walking Speed (m/s) | 1.45 ±5% | 1.45 ±5% | 1.45 | 1.45 | 1.45 |
| Maximum Material Passing Size (mm) | 550 × 450 | 550 × 450 | 600 × 500 | 700 × 600 | 800 × 700 |
| Wheel Track (mm) | 1120 | 1180/1130 | 1250/1220 | 1530/1470 | 1640/1480 |
| Wheel Base (mm) | 1300 | 1480 | 1510 | 1540 | 1780 |
Frequently Asked Questions (FAQ)
What is the loading capacity of the ZWY series?
The loading mass depends on the model you choose. It ranges from ≤50 m³/h for the compact ZWY-50 model, up to ≤120 m³/h for our heavy-duty ZWY-120 model.
What is the minimum roadway size required to operate this machine?
Our machines are designed for narrow spaces. The minimum section of the roadway required is 1.8 × 1.8 meters for the ZWY-50. Larger models like the ZWY-120 require a minimum roadway section of 3 × 3 meters.
Can the discharge height and dumping distance be adjusted?
Yes, all models in the ZWY series feature a discharge height that can be raised (ranging from 1200mm to 1750mm) and an extendable dumping distance (ranging from 1300mm to 3500mm) to fit your specific transport vehicles.
What is the maximum climbing grade it can adapt to?
When operating on a hardstand, the ZWY-60, ZWY-70, ZWY-80, and ZWY-120 models can easily adapt to a climbing grade of ≤15°. The ZWY-50 is suited for a climbing grade of ≤5°.
How much space is needed for the machine to turn around?
The ZWY series is highly maneuverable. All models across the series have a minimum turning radius of ≤5 meters.
