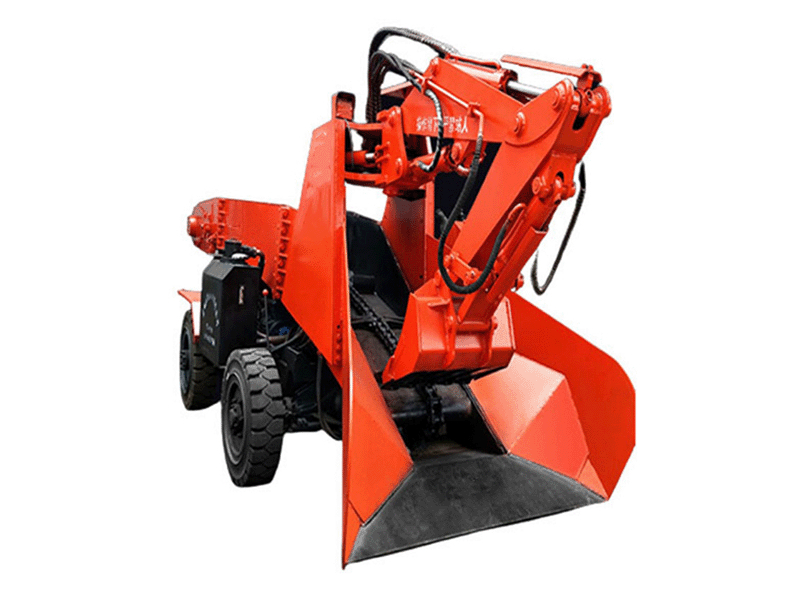

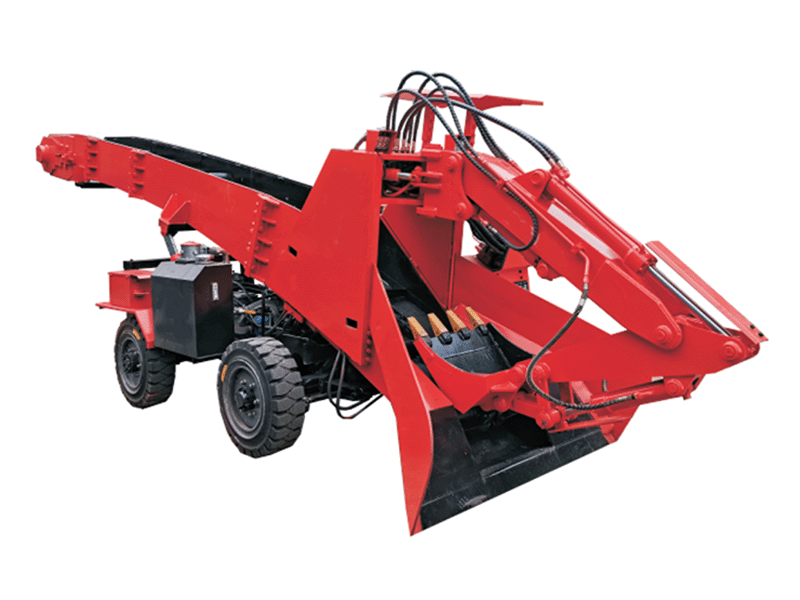

ZWYG Series Wheel-mounted Scraper Mucking Loader
- High Efficiency Continuous Rock Loading
- Perfect For Narrow Underground Roadways
- Extendable Dumping And Discharge Height
- Robust 30kw Motor Power System
ZWYG Series Wheel-mounted Scraper Mucking Loader Overview
The ZWYG Series Wheel-mounted Scraper Mucking Loader is an advanced, highly efficient continuous production mining equipment. Specifically designed for underground excavation, it integrates wheel mobility with a powerful scraping conveyor system. Powered by a robust 30kw motor, this machine ensures continuous loading and discharging of rocks, ores, and muck with zero direct emissions, making it a critical asset for modern underground operations.
Working Principle
The operation of the ZWYG Series relies on a seamless mechanical and hydraulic integration. As the machine advances using its wheel-driven chassis (operating at a steady walking speed of 1.45 m/s), the front digging mechanism actively gathers the fragmented rocks or muck. The collected material is then continuously fed into the scraper conveyor. Finally, the scraper elevates and transports the material to the rear, discharging it directly into waiting dump trucks, shuttle cars, or other transport vehicles via an extendable dumping system.
Application Environment
Engineered for versatility in confined spaces, the ZWYG Series is ideal for various underground environments, including coal mines, metal and non-metal mines, and tunneling projects.
Narrow Roadways: Models adapt perfectly to minimum roadway sections starting from just 2.3m × 2.3m up to 2.8m × 2.8m.
Inclined Tunnels: Capable of operating on slopes, it adapts to climbing grades of ≤ 15° on hardstands.
Heavy-Duty Operations: Designed to handle large materials, with maximum material passing sizes reaching up to 550 × 650 mm.

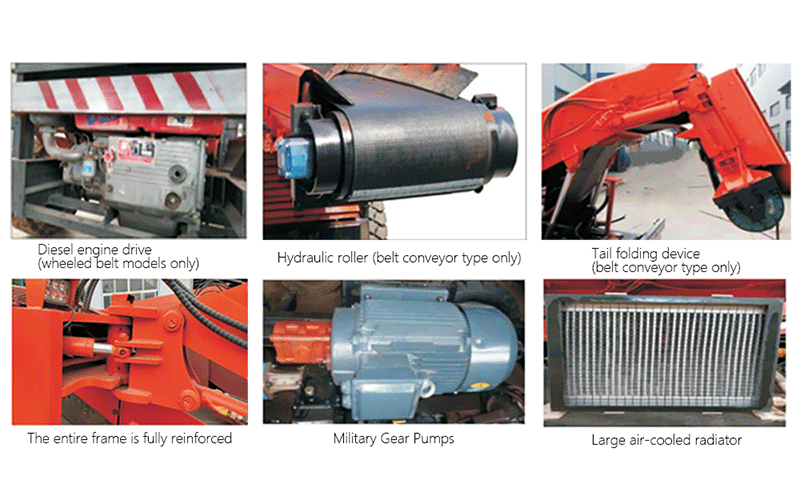

Core Product Features
High Loading Efficiency: Achieves a continuous loading mass of up to 60 to 80 m³/h depending on the specific model.
Flexible Discharging: Features an adjustable discharge height (1600mm to 1750mm) and an extendable dumping distance (up to 2700mm) to match different haulage vehicles.
Exceptional Maneuverability: Equipped with a minimum turning radius of ≤ 5m and customizable wheel tracks (1250/1220 mm), ensuring agile movement in tight underground spaces.
Robust & Stable: With weights ranging from 4200 kg to 5050 kg, the equipment maintains strong stability during high-intensity digging (up to 550mm digging depth).

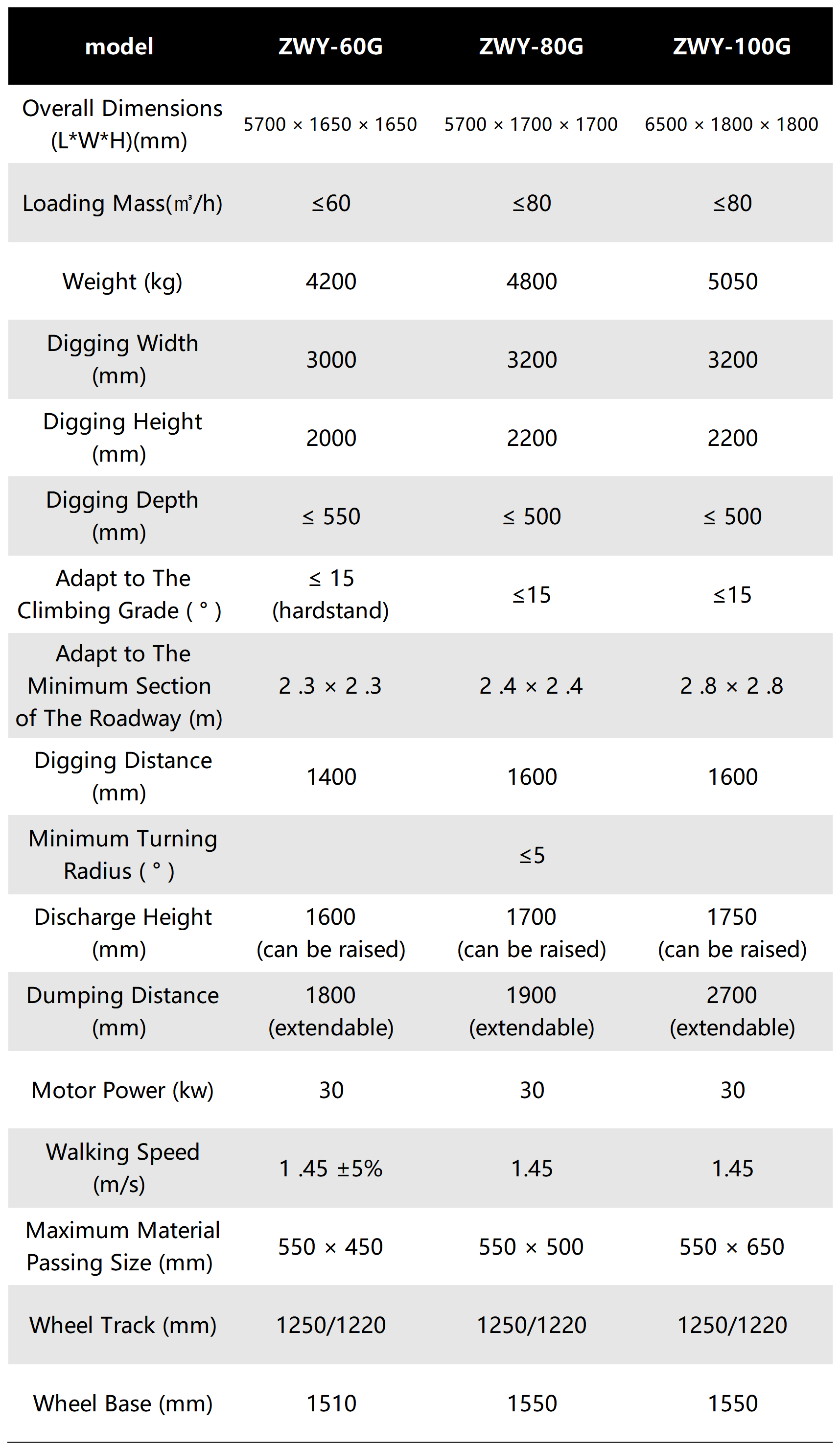

Technical Parameters
| Specification / Model | ZWY-60G | ZWY-80G | ZWY-100G |
|---|---|---|---|
| Overall Dimensions (L*W*H)(mm) | 5700 × 1650 × 1650 | 5700 × 1700 × 1700 | 6500 × 1800 × 1800 |
| Loading Mass (m³/h) | ≤ 60 | ≤ 80 | ≤ 80 |
| Weight (kg) | 4200 | 4800 | 5050 |
| Digging Width (mm) | 3000 | 3200 | 3200 |
| Digging Height (mm) | 2000 | 2200 | 2200 |
| Digging Depth (mm) | ≤ 550 | ≤ 500 | ≤ 500 |
| Adapt to Climbing Grade (°) | ≤ 15 (hardstand) | ≤ 15 | ≤ 15 |
| Min. Section of Roadway (m) | 2.3 × 2.3 | 2.4 × 2.4 | 2.8 × 2.8 |
| Digging Distance (mm) | 1400 | 1600 | 1600 |
| Minimum Turning Radius (m) | ≤ 5 | - | - |
| Discharge Height (mm) | 1600 (can be raised) | 1700 (can be raised) | 1750 (can be raised) |
| Dumping Distance (mm) | 1800 (extendable) | 1900 (extendable) | 2700 (extendable) |
| Motor Power (kw) | 30 | 30 | 30 |
| Walking Speed (m/s) | 1.45 ±5% | 1.45 | 1.45 |
| Max. Material Passing Size (mm) | 550 × 450 | 550 × 500 | 550 × 650 |
| Wheel Track (mm) | 1250 / 1220 | 1250 / 1220 | 1250 / 1220 |
| Wheel Base (mm) | 1510 | 1550 | 1550 |
Frequently Asked Questions (FAQ)
What is the maximum loading capacity of the ZWYG Series?
Depending on the model, the loading mass is ≤ 60 m³/h for the ZWY-60G, and up to ≤ 80 m³/h for the ZWY-80G and ZWY-100G models.
Can this mucking loader operate in narrow or inclined tunnels?
Yes. It adapts to climbing grades up to 15° (on hardstands) and requires a minimum roadway section of just 2.3 × 2.3m (for the ZWY-60G model).
What power source is used for the machine's operation?
All models in the ZWYG Series (ZWY-60G, ZWY-80G, and ZWY-100G) are equipped with a powerful 30kw motor.
Is the discharge height fixed or adjustable?
The discharge height is adjustable (can be raised). It starts at 1600mm for the 60G model, 1700mm for the 80G, and 1750mm for the 100G model. The dumping distance is also extendable.
