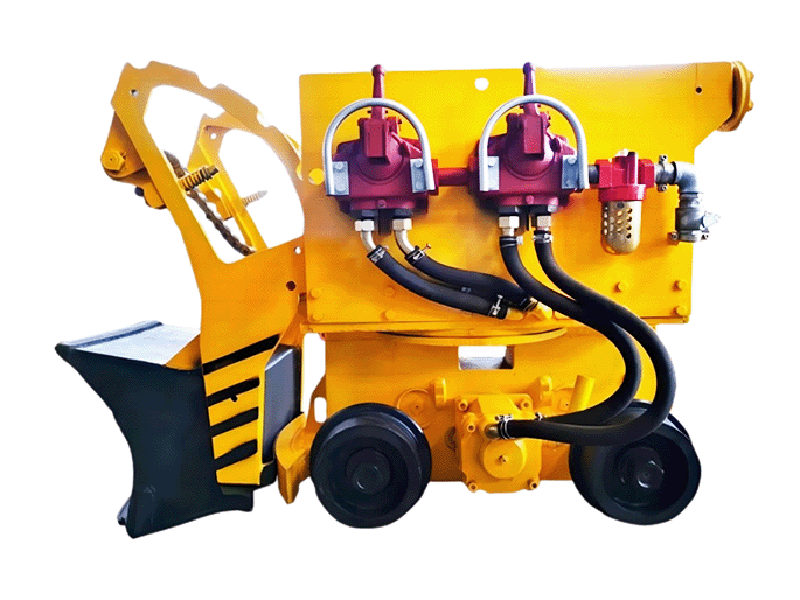

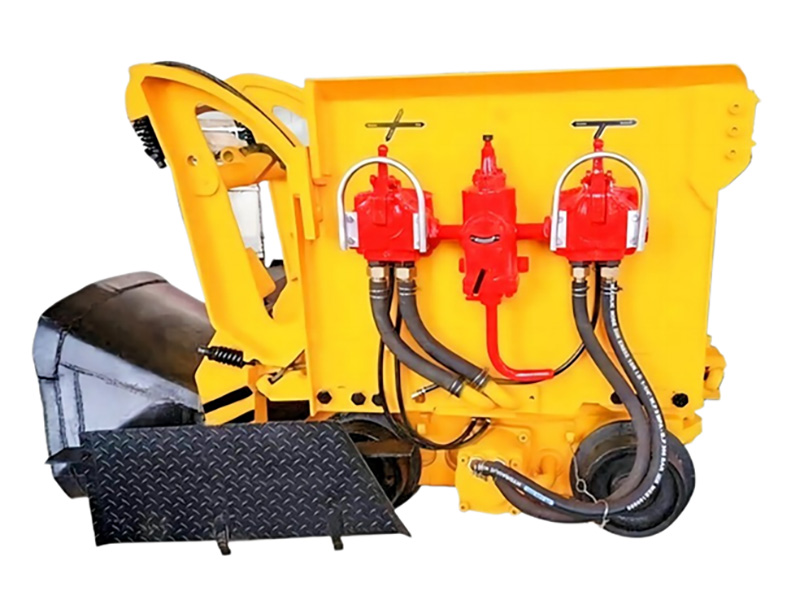

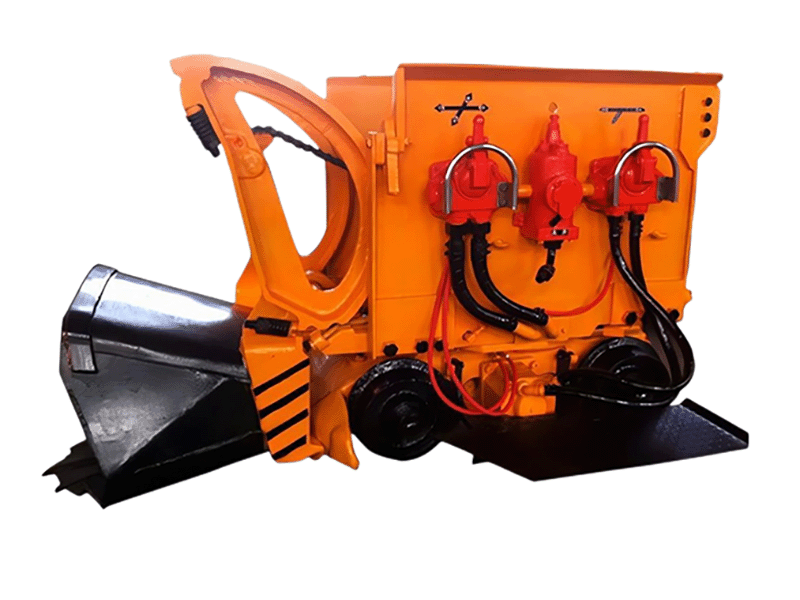

ZQ26 Steel Wheel Pneumatic Rock Loader Machine
- Rugged Industrial-Grade Construction
- Energy-Efficient Power Options
- Adaptable to Confined Tunnel Environments
- Enhanced Operator Safety Design
ZQ26 Steel Wheel Pneumatic Rock Loader Machine
Heavy-duty pneumatic loader for efficient rock and ore extraction in underground and surface mining operations
Overview
The ZQ26 Steel Wheel Pneumatic Rock Loader Machine is a front-loading, rear-unloading single-bucket steel wheel loader designed for efficient material handling in mining environments. This robust machine excels at loading blasted rock and ore into mine carts in underground operations, and is equally effective for loading rock, coal, limestone, or soil in open-pit applications.
Optimal Operating Conditions: Designed for horizontal development tunnels with height ≥ 2.2m, width 1.8-2.5m, and slope < 8°. Handles material up to 500mm in size (optimal performance with 200-300mm material).
Safety Certified: Pneumatic operation allows safe use in environments with methane and flammable gases where electrical equipment would pose explosion risks.
Featuring a compact, well-sealed design with excellent dust and moisture resistance, the ZQ26 delivers reliable performance in challenging underground conditions. Its simple yet effective mechanical design ensures easy operation and maintenance, maximizing uptime in demanding mining operations.
Key Features
Five-System Design
Integrated walking system, working platform, lifting mechanism, bucket assembly, and control system work in perfect harmony for efficient operation.
Pneumatic Power Advantage
12kW walking motor and 15kW bucket drive provide reliable power in explosive environments where electrical equipment cannot be used.
Efficient Loading Cycle
Optimized four-step cycle (approach, load, lift/reverse, unload) delivers 60m³/h loading capacity with minimal operator effort.
Precision Material Handling
Bucket follows a flat trajectory during lifting, with accelerated movement at the end of the cycle for smooth, complete material discharge.
Technical Specifications
| Model | ZQ-26 |
| Tunnel Size (Width × Height) | 1700 × 2000 mm |
| Gauge | 600 mm |
| Loading Capacity | 60 m³/h |
| Bucket Volume | 0.26 m³ |
| Loading Width | 2700 mm |
| Loading Height | 2240 mm |
| Unloading Height | 1250 mm |
| Dimensions (L × W × H) | 2375 × 1380 × 2240 mm |
| Pneumatic Motor Power (Walking) | 12 kW |
| Pneumatic Power (Bucket Drive) | 15 kW |
| Working Pressure | 0.5-0.68 MPa |
| Drive Unit | Pneumatic |
| Machine Weight | 2900 kg |
