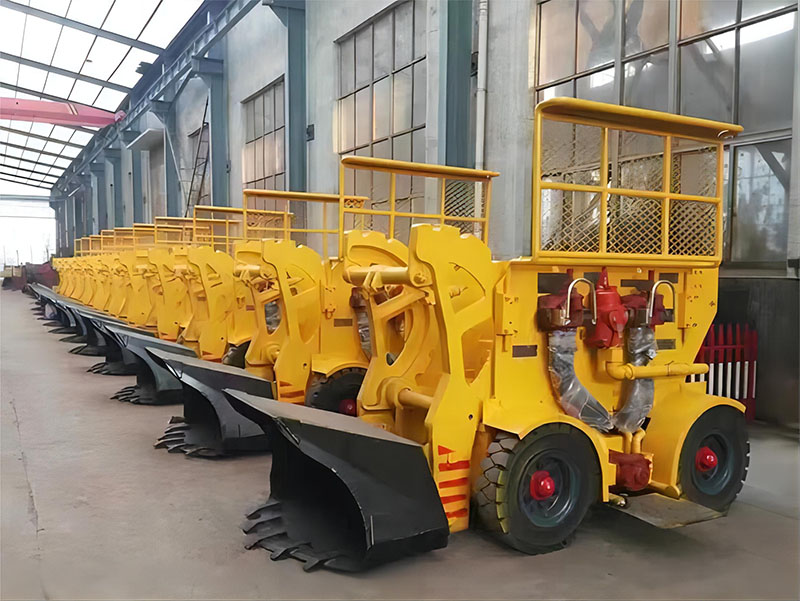

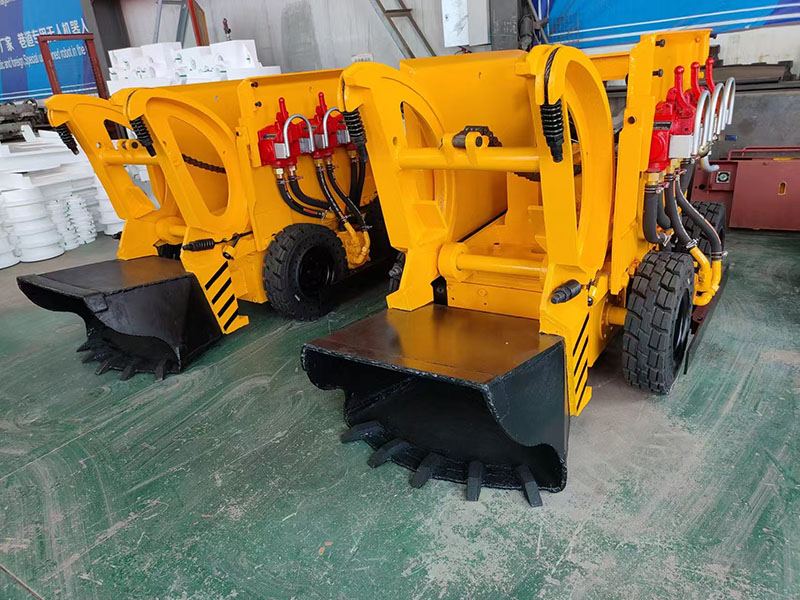

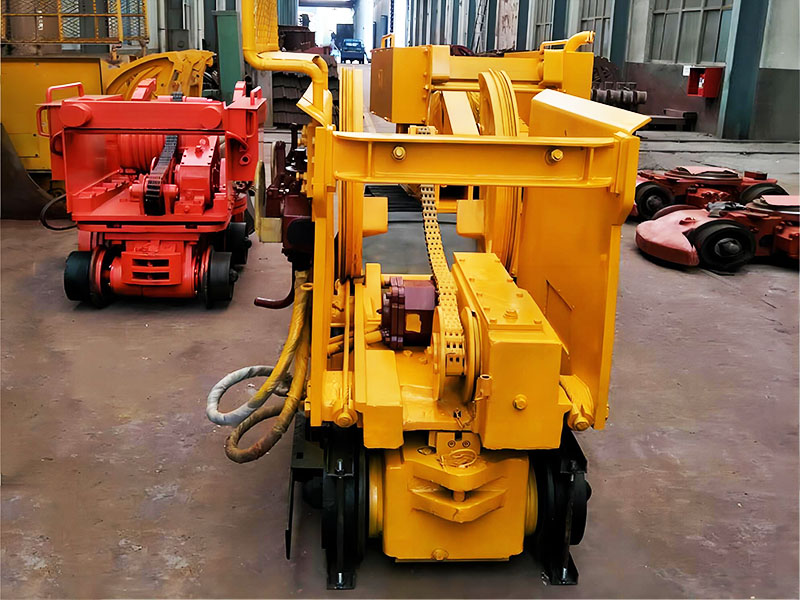

Z Series Tire Pneumatic Rock Loader
- Rugged Industrial-Grade Construction
- Energy-Efficient Power Options
- Adaptable to Confined Tunnel Environments
- Enhanced Operator Safety Design
Z Series Tire Pneumatic Rock Loader
Efficient Underground Loading Solution
Compact, reliable, and versatile rock loading equipment designed for underground mining operations with maximum efficiency.
Product Overview
The Z Series Tire Pneumatic Rock Loader is a wheeled underground loading equipment designed for tunneling and stope operations. With its compact structure, strong adaptability, reliable performance, and simple operation and maintenance, it's the perfect solution for various mining environments.
Compact Design
Optimized structure for confined underground spaces
Pneumatic Power
Safe operation in explosive environments
High Capacity
Handles rock fragments up to 500mm
Optimal Efficiency
Peak performance with 100-400mm fragments
Technical Specifications
| Specification | Z-13 | Z-30 |
|---|---|---|
| Bucket capacity | 0.13㎥ | 0.3㎥ |
| Working capacity | 0.6㎥/minute | 1㎥/minute |
| Working speed | 1.14m/s | 1.14m/s |
| Power | pneumatic | pneumatic |
| Working air pressure | 4.41×10⁵-6.68×10⁵PA | 4.41×10⁵-6.68×10⁵PA |
| Max Air Consumption | 8-12㎥ /min | 11-15㎥ /min |
| Moving Motor power (kW) | 9 | 15 |
| Lifting Motor power (kW) | 9 | 15 |
| Discharging Height (mm) | ≥1250 | ≥1350 |
| Discharging distance (mm) | 350 | 400 |
| Max.lifting height (mm) | 2000 | 2300 |
| Length with bucket down (mm) | 2450 | 2650 |
| Width with pedal down (mm) | 1590 | 1690 |
| Width without pedal (mm) | 1250 | 1350 |
| Height with bucket down (mm) | 1500 | 1650 |
| Weight (kg) | 3030 | 3850 |
Ideal For Various Mining Operations
Designed for horizontal tunnels (slope ≤8°) in diverse mining environments including:
General Rocks
Gravel
Iron Ore
Gold Ore
Granite
Non-Metallic Mines
