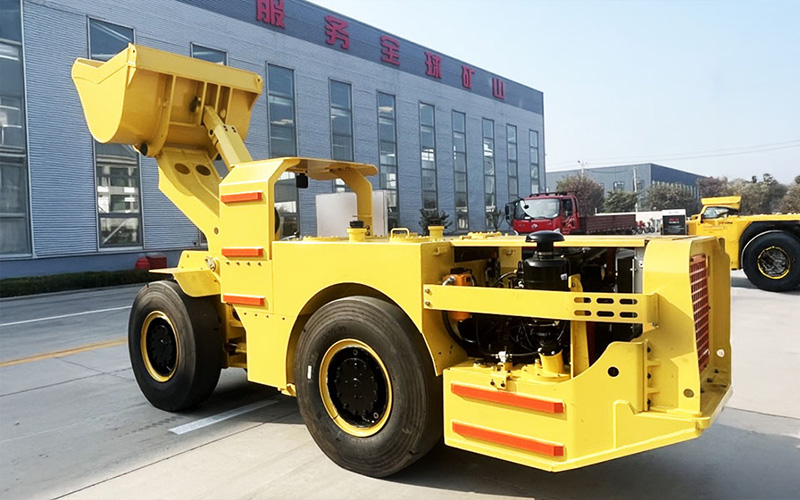

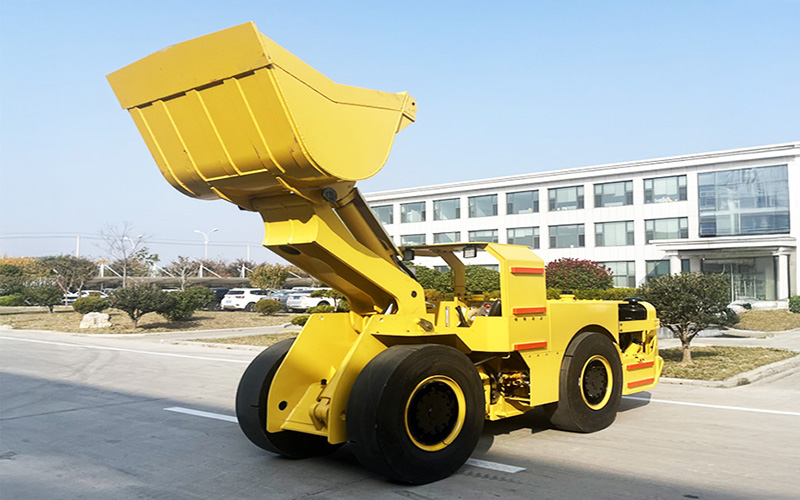

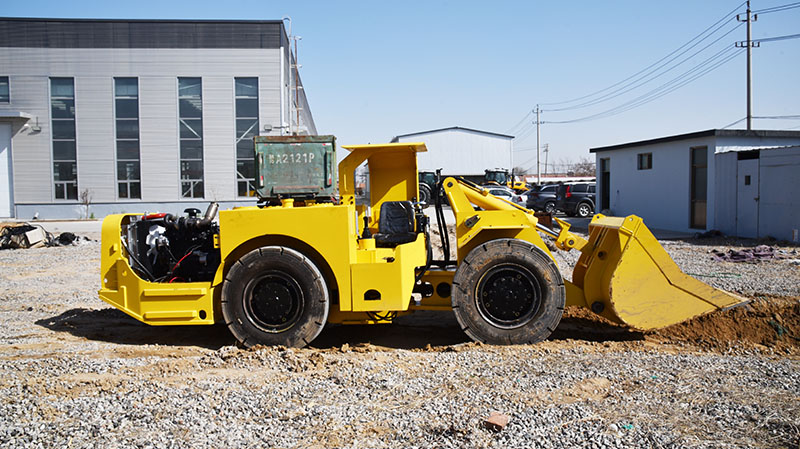

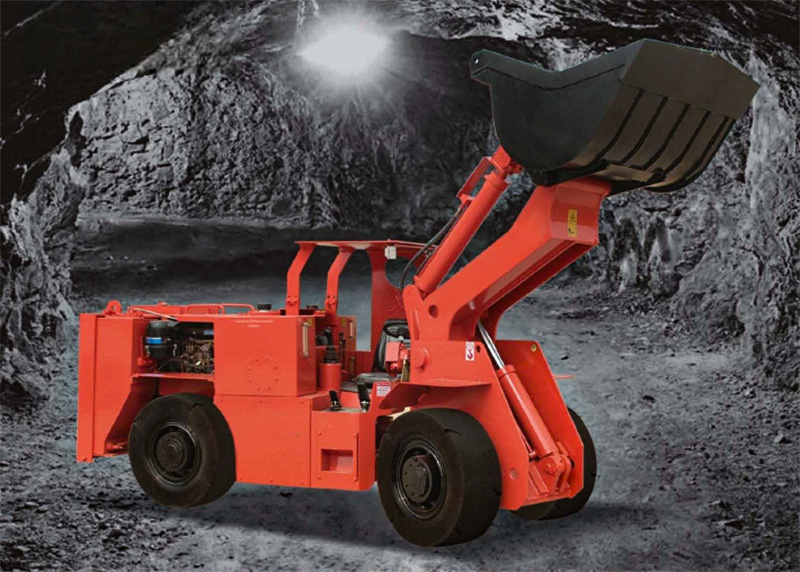

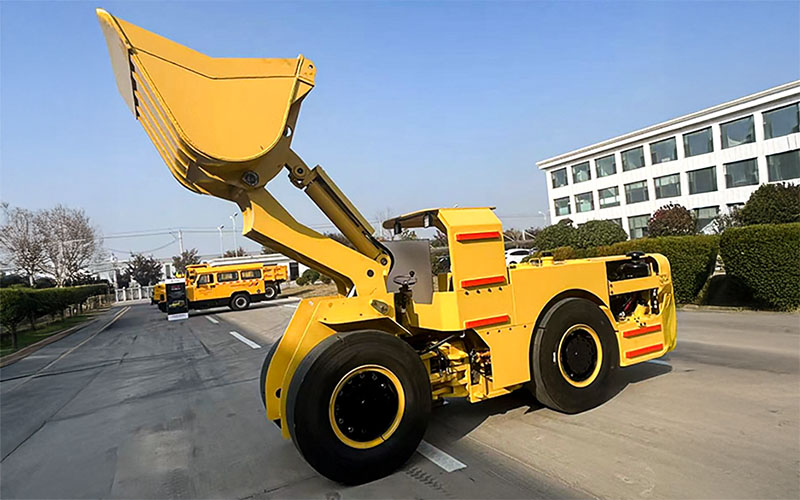

WJ0.8 Scooptram
- YUCHAI Turbocharged Engine: Low-Speed High-Torque
- SHANTUI Hydraulic Transmission: Stability & Efficiency
- Compact Design: Small Turning Radius
- High-Efficiency Operation: Multi-Scenario Application
Product Overview
The WJ0.8 Scooptram is a high-performance underground mining loader designed for efficiency, durability, and ease of operation. With its compact structure and small turning radius, it performs integrated operations including shoveling, loading, transporting, and unloading with exceptional productivity.
Powered by the robust YUNNEI 4100 engine, this scooptram delivers substantial torque and powerful performance. The mining-specific hydraulic torque converter and power shift transmission ensure high reliability with convenient maintenance.
Ideal for mining recovery, tunnel excavation, site preparation, road construction, and material transportation, the WJ0.8 combines advanced engineering with practical design for demanding underground environments.
Key Features & Advantages
Powerful Engine System
Equipped with a YUNNEI 4100 engine that provides high torque and strong power output for demanding mining operations.
Reliable Transmission
Features a mining-specific hydraulic torque converter and power shift transmission for exceptional reliability and easy maintenance.
Pilot Control System
Pilot-operated controls simplify operation and significantly improve working efficiency in confined spaces.
Advanced Braking System
Air-over-hydraulic caliper disc brakes ensure safe and reliable braking performance in all conditions.
Emission Control Technology
Oxidation catalyst and water filtration system dramatically reduce air pollution for improved underground air quality.
Durable Tire Design
255/70D406 wear-resistant and puncture-proof tires extend service life and reduce downtime.
Advanced Swing Structure
Technologically leading slewing bearing structure minimizes failure rates and simplifies maintenance requirements.
Hydraulic Steering
Dual steering cylinders provide smooth and stable steering control for precise maneuvering.
Reinforced Construction
Thickened steel frame enhances overall rigidity, while the high-strength alloy steel V-shaped bucket reduces digging resistance and extends service life.
Technical Specifications
| Parameter | Value |
|---|---|
| Bucket capacity (m³) | 0.6 |
| Rated load (T) | 1.2 |
| Operating weight (T) | 5.1 |
| Speed (km/h) | 0-9.7 |
| Forward gear (km/h) | Ⅰ0-4.6 Ⅱ0-9.7 |
| Reverse gear (km/h) | Ⅰ0-4.6 Ⅱ0-9.7 |
| Max climbing gradient | 16° |
| Overall dimension (L×W×H mm) | 5150×1280×1881 |
| Turning radius - Inner side (mm) | 2650 |
| Turning radius - Outside (mm) | 4250 |
| Min. ground clearance (mm) | 180 |
| Wheel base (mm) | 2296 |
| Wheel tread (mm) | 980 |
| Max. dumping height (mm) | 1200 |
| Dumping reach (mm) | 825 |
| Engine model | YUNNEI 4100 |
| Rated power (kW) | 52 |
| Tire model | 255/70D406 |
