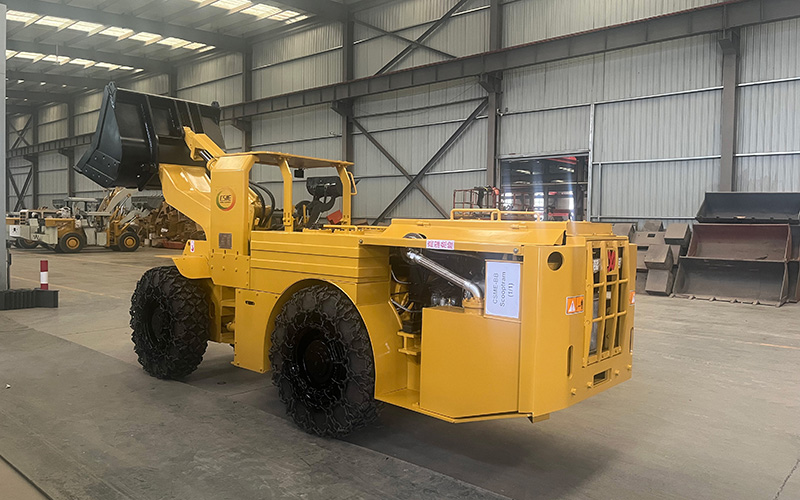

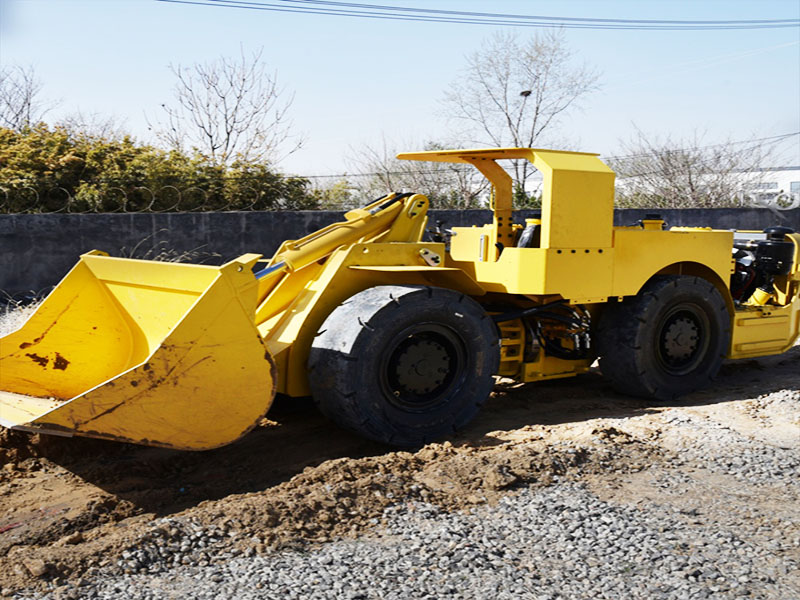

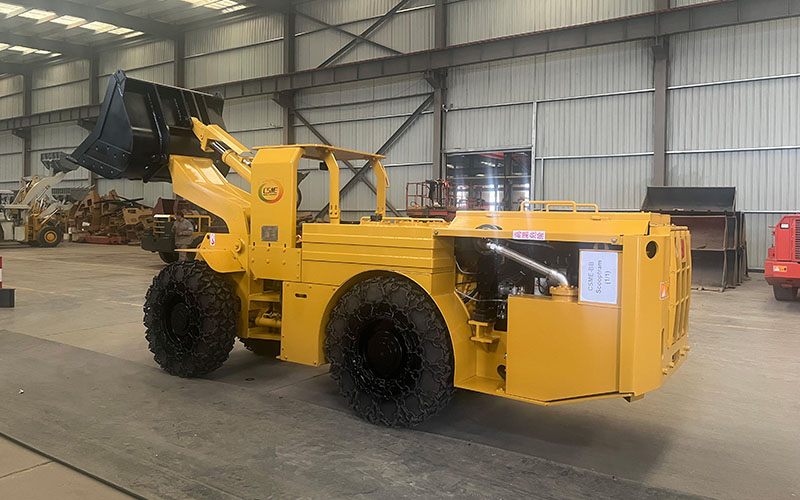

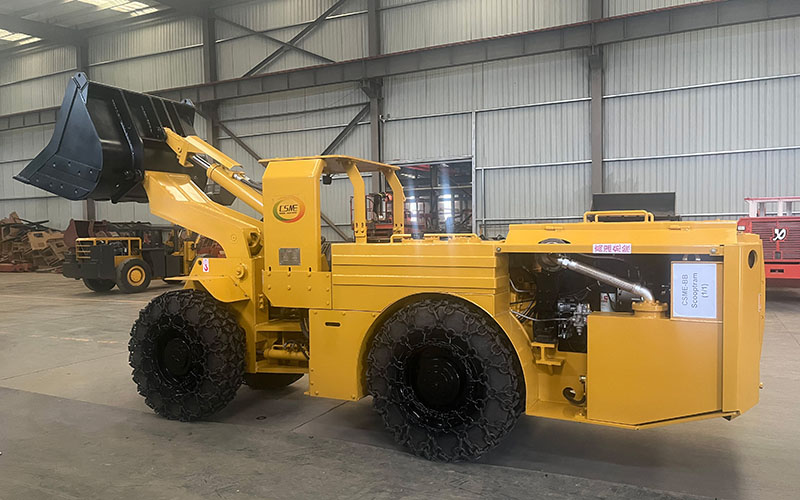

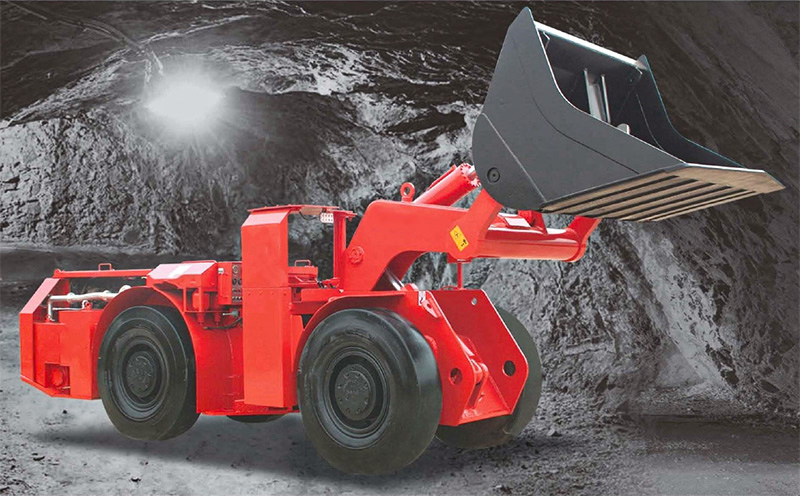

WJ2 Scooptram
- Pilot Control System: Ease & Efficiency
- Multi-Disc Brakes: Emergency Safety
- Water Filtration Exhaust: Pollution Reduction
- Puncture-Resistant Tires: Enhanced Longevity
Model : WJ-2
Bucket capacity : 2 m³
Rated load : 4 ton
Operating weight : 12.06 ton
Speed : 0-12 km/h
Max.climbing gradient : 16°
Overall dimension (L×W×H) : 7140×1800×2040 mm
Turning radius : 3150mm Inner side / 5550mm Outside
Min ground clearance : 215 mm
Wheel base : 2615 mm
Wheel tread : 1300 mm
Max.dumping height : 1985 mm
Dumping reach : 730 mm
Engine model : Dongfanghong YTO 4110 / Cummins 4BTA3.9-C125
Rated power : 81 kW / 93 kW
Tire model : 12.00-24
Power system adopts China's top brand YTO engine or China made CUMMINS engine with low speed and high torque.
Transmission system uses mining customized hydraulic torque converter and power shift gearbox to ensure its stability and high efficiency.
Operating system adopts pilot control to make operation easily and work efficiently.
Service brake adopts multi-disc wet brake to guarantee its safety and reliability.
Exhaust cleaning system is equipped with diesel oxidation catalyst (DOC)and water filtration system,greatly reducing air pollution.
12.00-24 smooth, wear-resistant and puncture-resistant tires for long working life.
Technology leader slewing structure, hydraulic steering,lower failure rate,easy to maintain.
The loader has compact structure and small turning radius.It can be used for shoveling, loading, transporting and unloading.
It is easy to be operated and has high working efficiency. Suitable for mining and roadway excavating, as well as road construction and material transportation.
