Liutech LUY050-7 Portable Air Compressor
- One-Button Simple Operation
- Kubota & Atlas Copco Powered
- Annual Maintenance: 1 Hour
- Extreme Temperature Ready (-10°C~50°C)

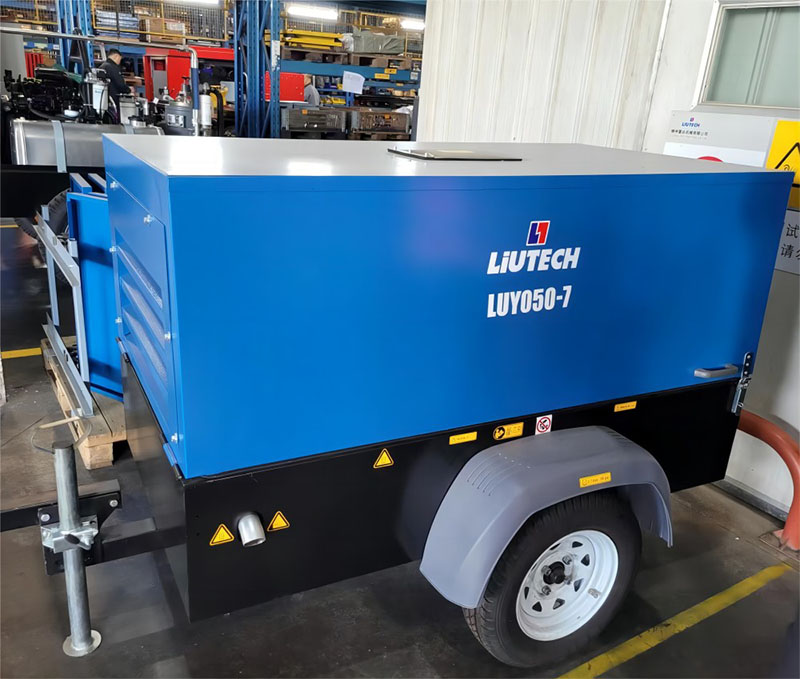

Liutech LUY050-7 Portable Air Compressor
We take care of your compressed air
Model: LUY050-7
The Liutech LUY050-7 portable air compressor is destined to become an indispensable tool at construction sites. Its new LUY050 structure and design make it particularly suitable for all types of transportation and storage, with mobility that sets the standard for portable compressors.
Featuring an Atlas Copco compressor head and an original imported Kubota engine, the LUY050 guarantees stable performance and reliable quality even under the harshest working conditions and highest workloads. With an extended maintenance cycle and efficient service requirements—only once a year for just one hour—this unit offers exceptional operational simplicity and ease of use.
Experience unparalleled performance stability, obstacle-free transportation, and significantly improved equipment utilization rates, resulting in lower overall ownership costs.

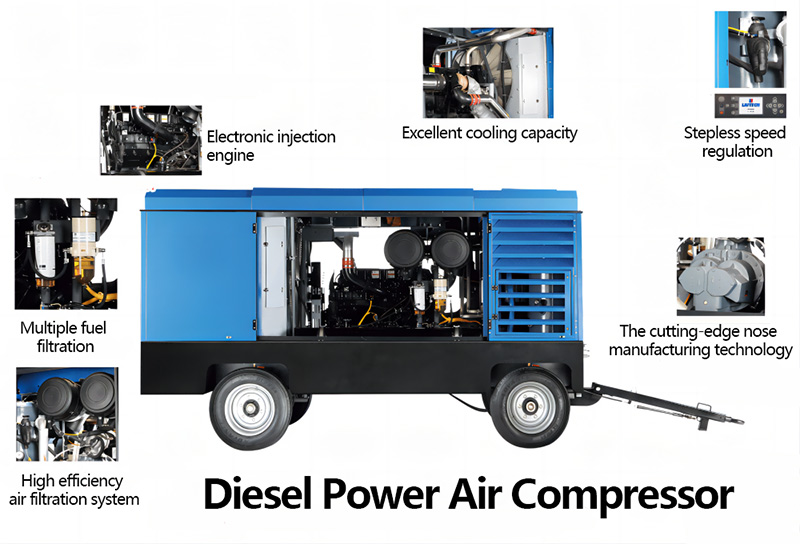

Key Features
Easy Transportation
Designed for convenient transport with compact dimensions. Can be placed sideways on trucks, leaving space for additional equipment.
Superior Mobility
Easily maneuverable on uneven terrain thanks to optimized weight distribution and a lightweight tow bar.
Simple Operation
User-friendly one-button control system requires no training. No adjustments needed—just start and work.
Effortless Maintenance

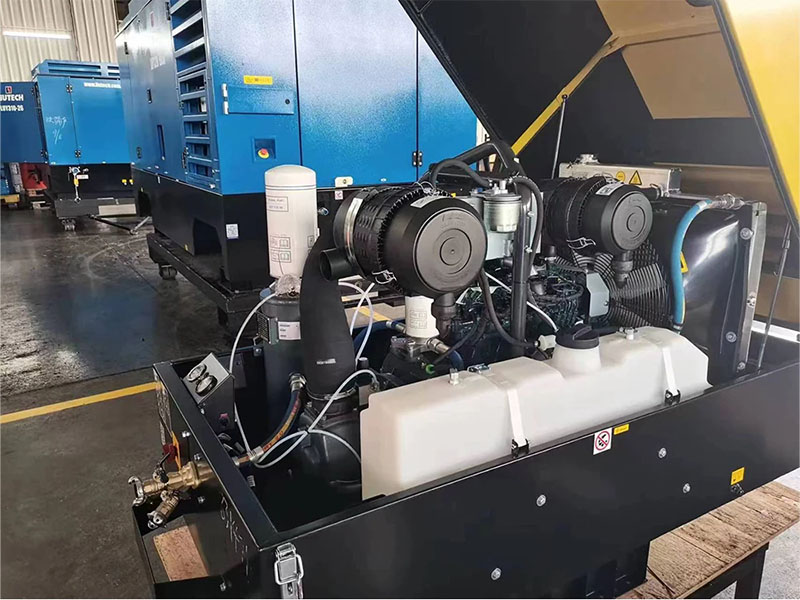

Large hood opening provides direct access to components without disassembly. Positioned oil separator and removable fuel tank reduce annual maintenance to just one hour.
Unmatched Reliability
Powered by a dependable Kubota engine and Atlas Copco compressor element. Engineered for longevity with a 3000 rpm operating speed.
Extreme Environment Ready
Operates from -10°C to 50°C. Angled intake and rubber protection prevent water ingress. Leak-proof design contains 1.2x total fluids to prevent environmental contamination.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | LUY050-7 |
| Air pressure (bar) | 7 |
| F.A.D (m³/min) | 5 |
| Acoustic sound level (SPL, 7m) | 70±3 dB(A) |
| Fuel Tank Capacity (L) | 67 |
| Compressor oil capacity (L) | 8 |
| Outlet valve dimensions (number*size) | 3xG3/4” |
| Engine Brand | Kubota |
| Motor power (KW) | 33 |
| Motor revolution (rpm) | 3000 |
| Skid-Mounted Dimensions | |
| Length (mm) | 1848 |
| Width (mm) | 1040 |
| Height (mm) | 1154 |
| Weight (kg) | 650 |
| Mobile Dimensions | |
| Length (mm) | 2700 |
| Width (mm) | 1350 |
| Height (mm) | 1310 |
| Weight (kg) | 750 |
Built for Performance. Engineered for Durability.
The LUY050-7 combines industrial-strength reliability with exceptional mobility for demanding worksites worldwide.
