Liutech LUY110-12 Diesel Air Compressor
- High-Efficiency Cummins Engine
- Advanced Electronic Control
- Extreme Temperature Operation
- Robust Mobility Design

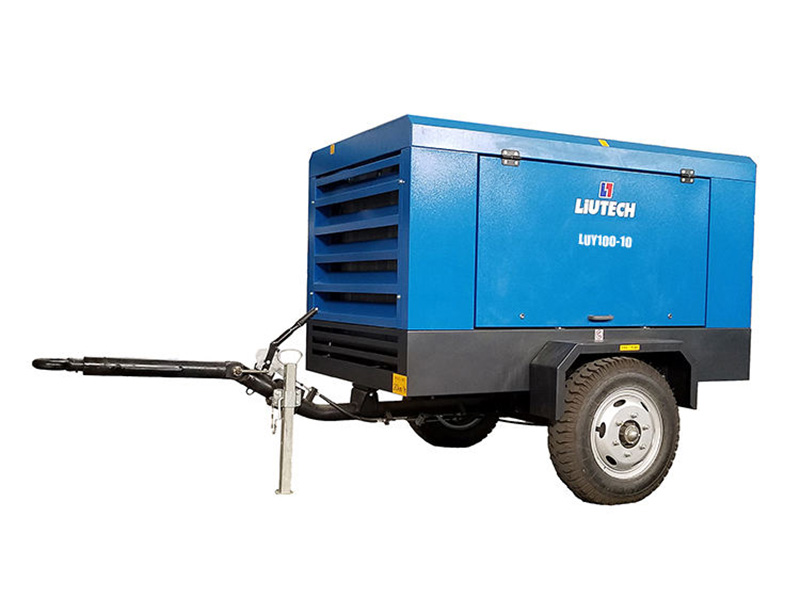

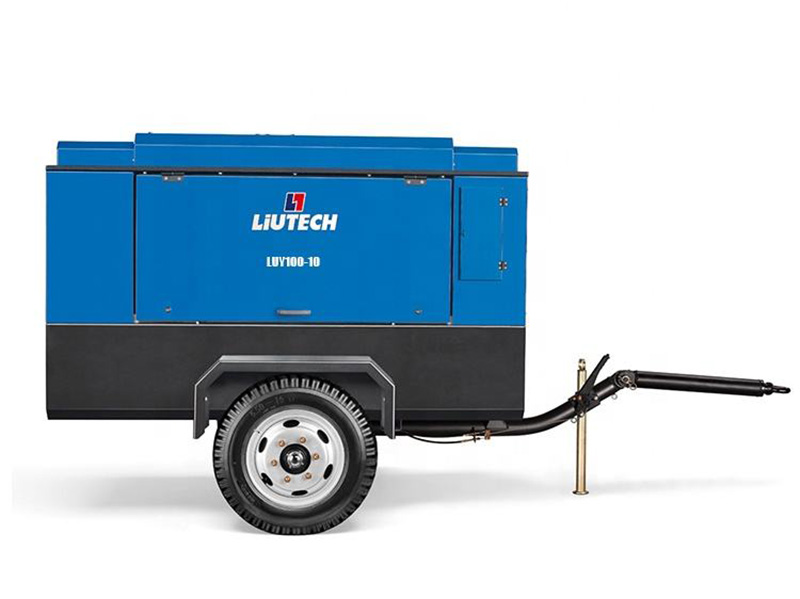

Liutech LUY110-12 Diesel Air Compressor
High-Efficiency Performance with Advanced Electronic Control
Portable power solution for demanding jobsites and mining operations
Core Product Overview
When you need portable power for the jobsite, you can count on Liutech compressors. Every model in the line shares the same dependable design and smart features to enhance productivity. These units serve as an excellent partner for pneumatic tools, including rock drills, breakers, air guns, wrenches, dewatering pumps, pneumatic hammer drills, and abrasive blasting equipment. They also provide backup power during power outages and electrical failures.
Note on "Electronical Engine"
The term refers to an electronically controlled diesel engine. Modern diesel compressors integrate electronic systems for precision fuel injection, speed regulation, and diagnostics, enhancing efficiency while retaining diesel power.

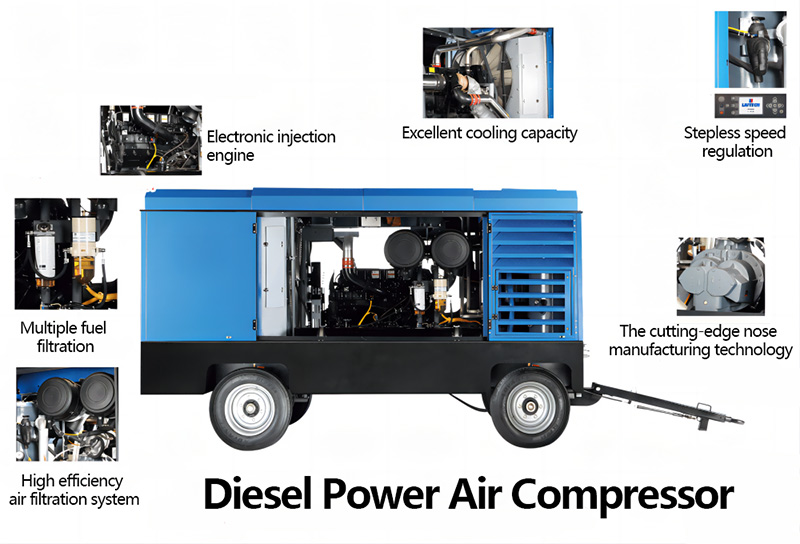

Key Technology Highlights
Premium Power System
Reputable Engine Brands: Features a Cummins diesel engine protected inside a corrosion-treated, weatherproof hood.
Efficient Fuel Filter: High-efficiency multi-step fuel filtration with water separator isolates and traps contaminants.
Intelligent Control Systems
Fully Automatic Step-less Speed Regulator: Dynamically adjusts engine speed to meet operational demands while minimizing fuel consumption.
Patented PowerXpert™ (XC2003 Controller): Delivers rapid response curve and regulates engine power curve for higher flow rates and faster operation.
Robust Design & Environmental Adaptability
Clean Intake Air: High-performance two-stage air intake filter prevents dust/dirt ingress with service indicator.
Large Cooling Surface: Supports intensive operation in high-temperature environments (up to 50°C).
Easy Transport: Robust undercarriage with torsional spring ensures safe, effortless mobility.
Technical Specifications
Basic Parameters
Working pressure 12 bar (175 psi)
Flow rate 183 l/s | 385 cfm | 11 m³/min
Compressor stage 1
Noise level (at 7m) 79±3 dBA
Fuel tank capacity 185 L
Compressor oil capacity 26 L
Outlet valves 1×G1 1/2" 3×G3/4"
Engine Specifications
Engine brand Cummins
Engine model 4BTAA3.9-C125
Engine power 93 kW
Max. engine speed 2300 rpm
Unloading engine speed 1400 rpm
Engine type Mechanical
Engine exhaust emission Tier 2
Dimensions & Weight (Box mounted)
Length 2235 mm
Width 1350 mm
Height 1650 mm
Weight 1300 kg
Operational Benefits
High Efficiency
Advanced electronic control minimizes fuel consumption
Rugged Design
Built for demanding mining environments
Portable Power
Easy transport to remote job sites
High-Temp Operation
Performs reliably up to 50°C
Ready to Enhance Your Mining Operations?
Get the reliable, high-performance air power solution your operation needs.
Request a Quote
