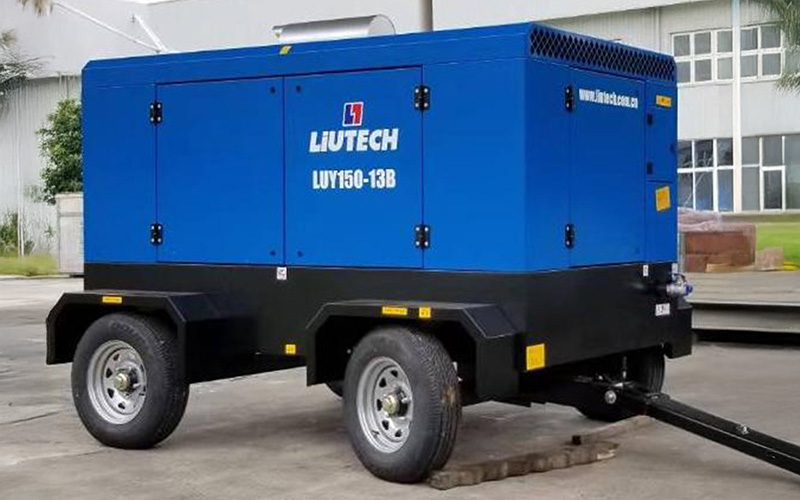

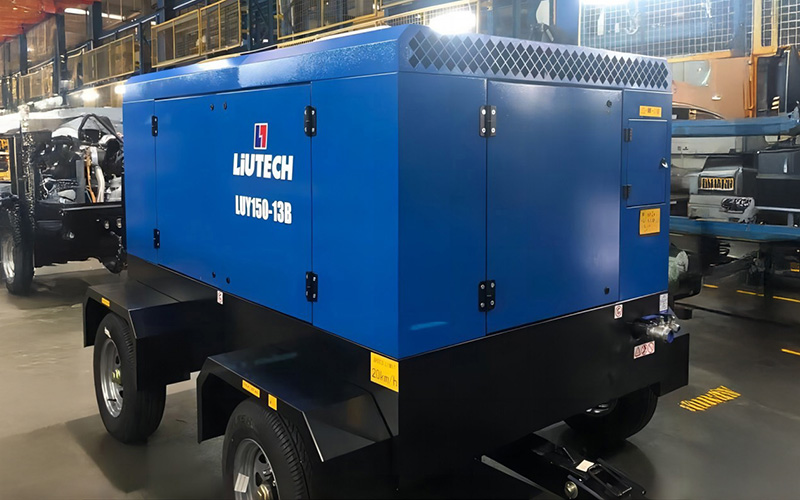

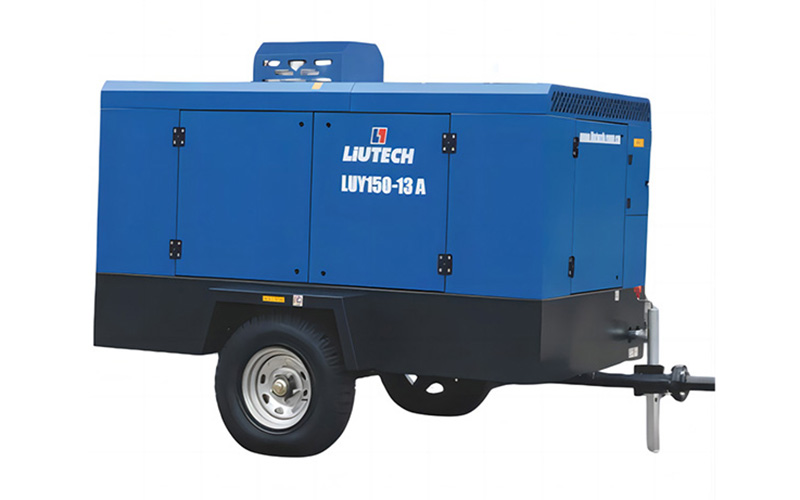

LUY150-13 Mobile Air Compressor
- 15 m³/min Output Power
- National III Emission Standard
- Low-Noise Operation Design
- Stepless Speed Regulation
Liutech LUY150-13 Mobile Air Compressor
Robust and Durable Mobile Compressor for Your Ideal Equipment Use and Project Construction
Trusted Liutech full series mobile compressors provide stable, uninterrupted power, making your work more efficient and productive. Liutech mobile compressors cover a wide range of applications from small construction pneumatic tools to large-diameter high-pressure drilling. Liutech offers a full range of products for you to choose from. These robust and durable devices are reliable and suitable for many application fields. The equipment is easy to maintain and operate, bringing you more and stronger productivity.
Key Features
Atlas Custom Controller
Main parameters displayed on a single page for quick overview of equipment operation status. Ensures safe and reliable operation with multiple abnormal alarms and automatic shutdown protection.
Strong Reliability
Robust design ensures long-term reliability and durability of the equipment.
Easy Maintenance
Openable door design facilitates daily maintenance and repair work.
National III Emission Engine
Complies with China Stage III non-road diesel engine exhaust emission standards. Features advanced high-pressure common rail fuel injection technology for higher efficiency and more power.
Diesel Self-Sufficiency
Operates even under 100% full load and continuous working conditions.
Low Noise
Mobile unit canopy and shell design provide strong noise reduction and sound absorption.

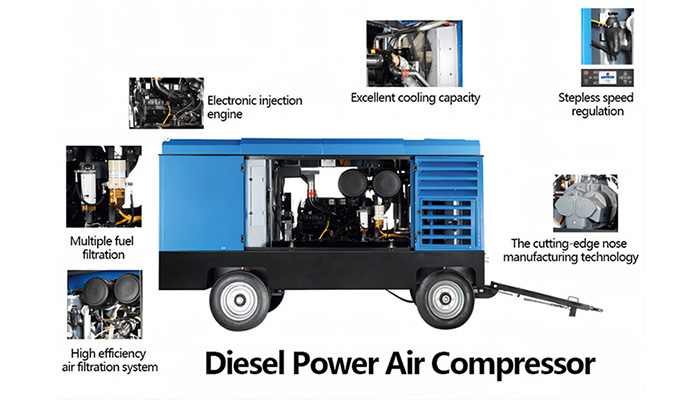

Advanced Features
Sturdy and Reliable, Powerful Performance
High-configuration diesel engine driven mobile unit with advanced electronic injection engine. Each model is equipped with a powerful engine placed under a sturdy canopy. New National III emission engines offer better performance, more power, and are more environmentally friendly.
Excellent Cooling Capacity
Equipment can work normally in high temperature environments.
Stepless Speed Regulation
Fixed controller + intake valve adjusts engine speed steplessly according to actual air demand to achieve minimum fuel consumption.
Efficient Air Filtration System
High-performance three-stage air filter prevents dust and particles from entering the compressor head and engine.
Easy Transportation
Built-in flexible shock absorption + well-designed walking system facilitates easy movement and transportation on construction sites.
Optional Accessories
Air pre-filter device
Cold start package (-20℃ applicable, including engine coolant heater and synthetic lubricant)
Skid-mounted version
GPS positioning, remote control
Aftercooler
Dual pressure switching
EKON control system (flexible switching of multiple working conditions and pressures)
Applications
Liutech mobile air compressors perfectly meet your needs when providing power on construction sites. From house demolition to road maintenance involving breaking or building new roads, mobile compressors have become indispensable equipment at construction sites, providing power for various on-site construction tools.
Application examples: At various construction sites, Liutech mobile units are widely used in handheld pneumatic tools such as:
Small hole drilling
Core drilling
Blasting
Ramming, hammering, tamping
Pumping
Sawing, riveting
Pneumatic pumps
And many other applications
Technical Specifications
| Parameter | LUY150-13 A | LUY150-13 B |
|---|---|---|
| Basic Parameters | ||
| Air pressure (bar) | 13 | 13 |
| F.A.D (m³/min) | 15 | 15 |
| Acoustic sound level (SPL, 7m) | 83±3 | 83±3 |
| Fuel Tank Capacity (L) | 180 | 180 |
| Compressor oil capacity (L) | 30 | 30 |
| Outlet valve dimensions (number*size) | 1xG3/4, 1xG1 1/2 | 1xG3/4, 1xG1 1/2 |
| Engine Specifications | ||
| Engine Brand | Yuchai | Yuchai |
| Motor power (KW) | 140 | 140 |
| Motor revolution (rpm) | 2080 | 2080 |
| Skid-Mounted Dimensions | ||
| Length (mm) | 2750 | 2750 |
| Width (mm) | 1500 | 1500 |
| Height (mm) | 1900 | 1900 |
| Weight (kg) | 1790 | 1790 |
| Mobile Dimensions | ||
| Length (mm) | 3000 | 3965 |
| Width (mm) | 2000 | 1990 |
| Height (mm) | 2200 | 2178 |
| Weight (kg) | 1850 | 1920 |
