Smooth Dispatch! JTK1.2*1.0 Mining Hoists Loaded and Sailing to Our African Client

Introduction & Video Showcase

Big news from our factory floor! We are thrilled to announce the successful completion and loading of a batch of custom-engineered JTK1.2*1.0 mining hoists. These robust machines have passed our rigorous quality testing and are now officially out the door. Check out the exclusive video below to witness the exciting loading moment firsthand.

This batch of underground mining equipment is destined for a significant mine development project in Africa. Watch as our heavy machinery embarks on the first leg of its journey, reinforcing our unwavering commitment to serving the global market, especially the rapidly growing African mining sector. We don’t just manufacture winches; we deliver reliability where it matters most.

Behind the Scenes: Efficient and Safe Loading Process

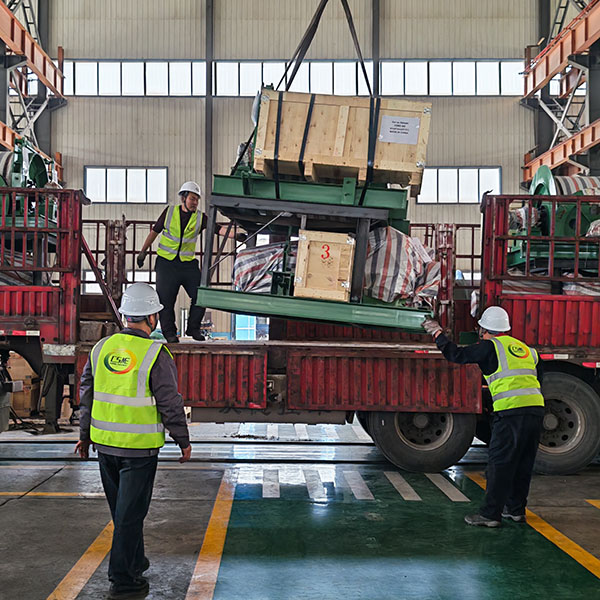

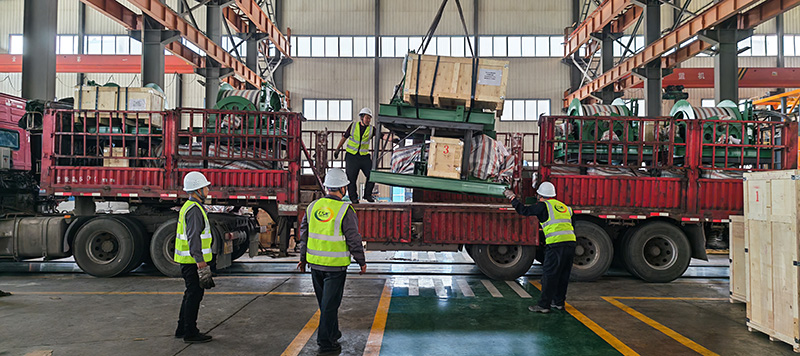

Our factory was buzzing with coordinated energy during dispatch day. As you can see in the clip, experienced engineers worked seamlessly with factory cranes to execute a flawless heavy lift. Safety wasn't just a priority; it was the only way. The main hoist drum, the operating console, and the bulky main shaft device were carefully rigged and hoisted into position on the heavy-duty flatbed trailers.

Every detail was meticulously handled. Dozens of precision accessories, from the electro-hydraulic thrusters to the complex couplings, were packed in reinforced wooden crates. Once the last strap was tightened and the final safety check completed, the trucks pulled away from the loading bay. Their immediate destination is the major cargo port, where these units will be securely containerized. This seamless transition from factory cranes to sea freight highlights our mature logistics capabilities, ensuring your equipment arrives intact, right on schedule.

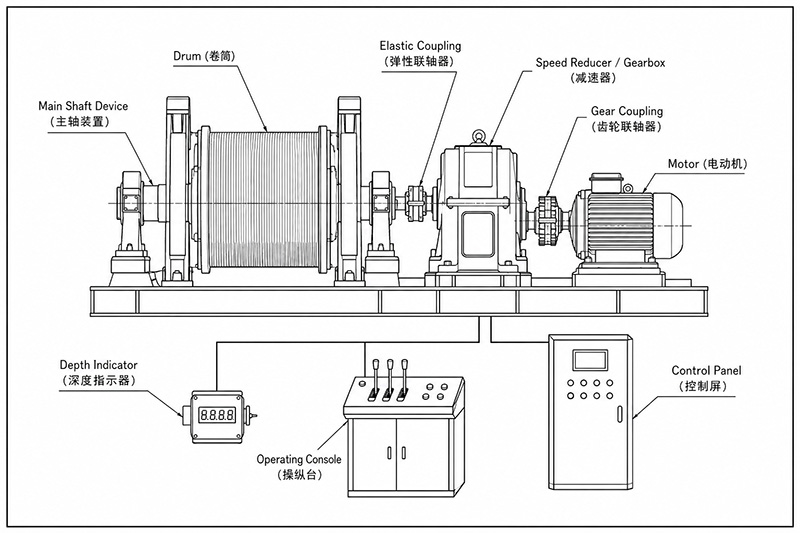

Deep Dive: Core Components of Our JTK Mining Winches

What makes the JTK1.2*1.0 single drum hoist the trusted choice for heavy lifting? A winch is only as strong as its weakest part, and we leave no room for compromise. The stability and longevity of this underground mining equipment lie in the precision synergy of its core components. Let’s dive into the technical specs that assure performance under the harshest conditions.

• Robust Main Shaft Device: At the heart of the hoist lies the main shaft assembly with a high-capacity drum. Designed using advanced finite element analysis, it withstands the constant, bidirectional stress of lifting loads over long cycles, guaranteeing zero deformation even after decades of use in deep shafts.

• Ultimate Safety: The Dual Braking System: Safety is non-negotiable.

• Operating Brake: Controlled via the lever, allowing the operator to manage deceleration and pinpoint stopping during routine ore lifting.

• Safety/Emergency Brake: This is a fail-safe mechanism. Equipped with an angular displacement block brake and an electro-hydraulic thruster, this system automatically engages. In the event of a sudden power loss, the heavy hammer drops instantly, generating a braking torque that is no less than three times the rated static torque to lock the drum and protect the miners.

• Smooth Transmission & Shock Absorption: To ensure a quiet, vibration-free ride, the power flows through a secondary transmission involute cylindrical gear reducer. The connection system pairs an elastic coupling, which buffers shock loads and minimizes noise, with a gear coupling that reliably transmits massive torque without slipping.

• Intelligent Control & Monitoring: Depth control is fundamental. Our precise depth indicator visually shows the cage position in the shaft and automatically sends deceleration signals and over-winding protection triggers to the safety circuit. All these functions are unified at the ergonomic operating console, which integrates gauges, a master controller, and a foot-operated emergency switch for ultimate operator command.

Setting Sail for Africa & Our Global Commitment

With the loading complete, these JTK mining hoists are ready to hit the high seas. Partnering with top-tier international freight forwarders, we guarantee a safe and punctual maritime delivery. The "last mile" of our manufacturing process is the first step in our client’s success.

Africa’s mining infrastructure is booming, and our machinery is built for exactly that environment. Our single drum hoists are specifically engineered with a "simple structure, high reliability, and long service life" philosophy. Without over-engineering the complexity, we provide a mining winch manufacturer advantage that thrives in remote locations where durability and easy maintenance trump all.

Ready to Elevate Your Mining Operation?

A huge thank you to our African client for their trust in this project. Watching this heavy equipment head to the port is always a proud moment for our team.

Are you preparing a greenfield project or upgrading your existing shaft lifting capacity? Don't let substandard equipment hold you back. Contact our engineering team today for a customized solution tailored to your mine’s depth and capacity requirements.
