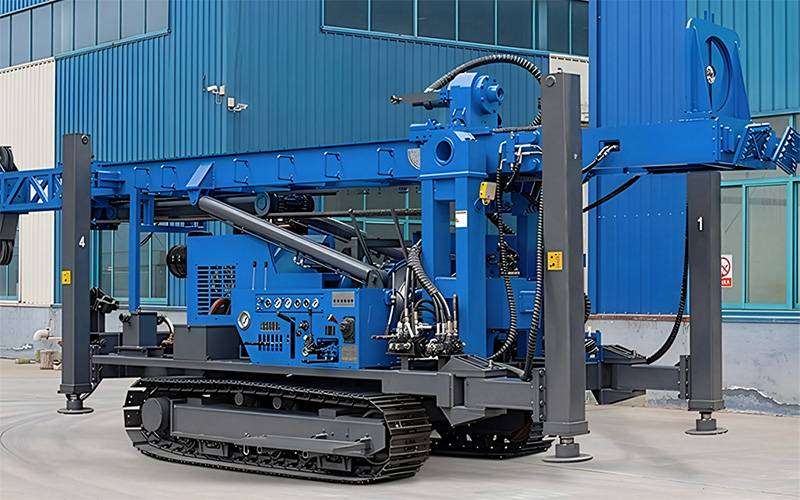

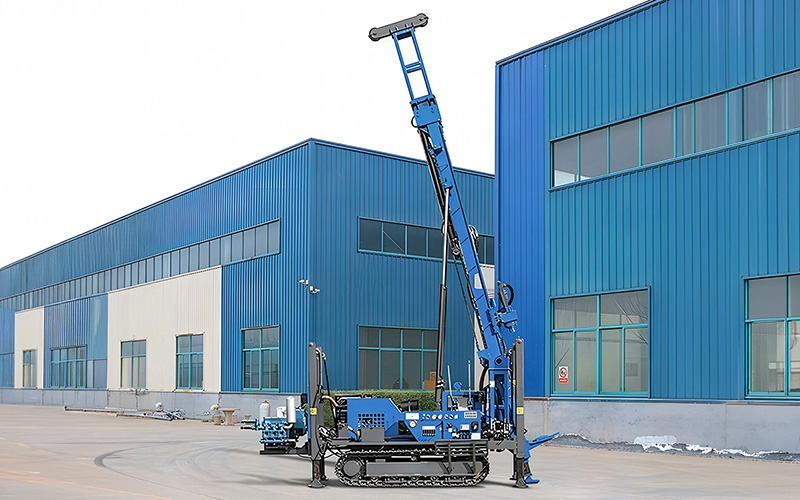

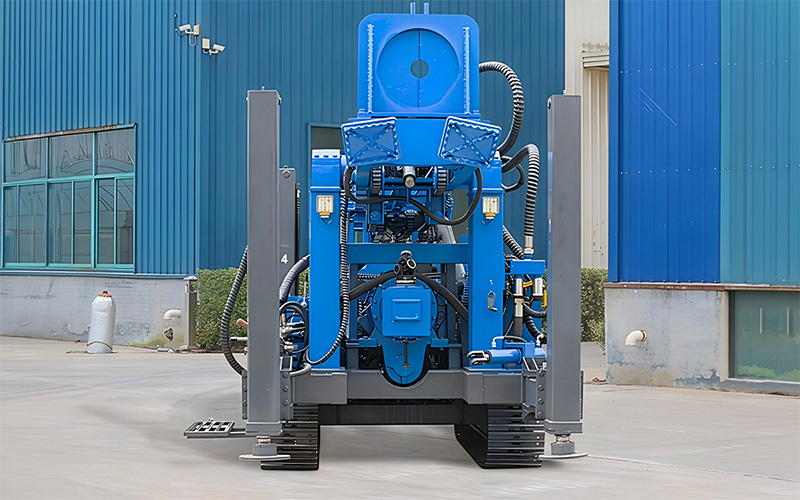

TRD-800 Top-drive Rotary-Percussive Water-Air Dual-Use Drill Rig
- Mechanical top-drive high efficiency
- 1000m mud / 800m pneumatic
- Torque 0-16500 N.m
- All-terrain hard rock drilling
TRD-800
Top-drive Rotary-Percussive | Water-Air Dual-Use Drill Rig
Get Quote TRD-800 is an advanced mechanical top-drive drilling rig integrating water-based mud drilling and pneumatic DTH hammer drilling. It perfectly solves low efficiency in clay formation for air drilling and difficult penetration in hard rock / gravel layers for conventional mud drilling. Adaptable to various geological conditions, delivering energy-saving and high-efficiency operation.
Key Features
Integrated drilling system – Mud & pneumatic DTH hammer combined in one rig.
Hydraulic expandability – Reserved interfaces for functional upgrades per user needs.
Mechanical transmission spindle – Double efficiency, significant energy reduction.
Top-drive power head + long-stroke speed multiplying mechanism – Avoids bit sticking/burning, boosts penetration rate.
Mechanical winch – Fast hoisting speed, easy downhole accident handling.
Drilling Capacity
Hole diameter75 – 350 mm
Mud drilling depth1000 m
Pneumatic drilling depth800 m
NQ wireline coring1200 m
Drilling angle75 – 90°
Power
Diesel engine modelYN48GBZ
Rated power92 kW
Rated speed2400 r/min
Power Head
Rotary speed43 – 1080 r/min
Torque0 – 16500 N·m
Stroke— (continuous feed)
Feed System
Lifting force240 kN
Thrust force180 kN
Winch
Mechanical winch (single rope)7.5 T
Drill Rod
Rod diameterφ60 / φ76 / φ89 / φ102 mm
Rod length3000 mm
Crawler Chassis
Travel speed0 ~ 2 km/h
Climbing ability25° ~ 30°
Machine Dimensions
Transport status6300 × 2000 × 2650 mm
Working status3800 × 2500 × 8500 mm
Machine Weight
Total weight11500 kg
Matching Air Compressor
Total air consumption16 ~ 35 m³/min
Working air pressure10.5 ~ 24.6 bar
Formation & Drilling Method
Working formationLoose soil & bedrock (hardness F6–20)
Drilling methodTop-drive mechanical rotary + hydraulic thrust, mud / DTH hammer
Drill Model: TRD-800 | Mechanical top-drive with dual-use water & air system
Why Choose TRD-800?
All-terrain adaptability
Works flawlessly in soft soil, gravel, hard rock (F6-20). No more inefficient layer switching.
Energy efficient
Mechanical transmission doubles efficiency, lowers fuel consumption vs. hydraulic counterparts.
Future-ready hydraulics
Reserved valve interfaces for custom expansions (automatic rod handling, etc.)
High lifting & thrust
240kN lifting force + 180kN thrust ensures stable deep-hole coring & DTH drilling.
Water-Air dual-use
Seamlessly convert between mud drilling and pneumatic DTH hammer for optimal efficiency.
Frequently Asked Questions
Q: What formations can TRD-800 handle effectively? +
A: Based on working formation parameters, TRD-800 drills in loose soil and bedrock with hardness F6–20. The combination of mud drilling and DTH hammer ensures high penetration in gravel, clay, and hard rock layers without frequent bit changes.
Q: What is the maximum depth for mud drilling and pneumatic drilling? +
A: According to technical specs: mud drilling reaches 1000m, pneumatic drilling (DTH hammer) up to 800m, and NQ wireline coring extends to 1200m. The top-drive system offers consistent torque up to 16500N·m.
Q: How does the mechanical top-drive improve drilling efficiency? +
A: The mechanical transmission spindle improves efficiency by 100% compared to conventional hydraulic systems, reduces energy consumption, while the long-stroke speed multiplying mechanism reduces stuck and burned drill incidents.
Q: Can I adapt additional hydraulic functions on this rig? +
A: Yes, the hydraulic control system includes reserved ports for functional extensions based on specific user requirements, making TRD-800 customizable for auxiliary equipment.
Q: What is the crawler chassis climbing ability and travel speed? +
A: TRD-800 self-propelled crawler offers travel speed 0-2km/h and climbing ability 25°~30°, suitable for rough terrain and job site relocation.
Q: What are the air consumption requirements for DTH drilling? +
A: Matching air compressor must supply total air consumption 16~35 m³/min at working pressure 10.5~24.6 bar to achieve optimum pneumatic hammer performance.
