From Raw Steel to Locomotive Core: Inside Our Precision Frame Fabrication Process

The locomotive frame is more than just a structural component. it is the unyielding backbone of any mining haulage operation. Tasked with bearing extreme dynamic loads, constant vibration, and the unforgiving conditions of an underground environment, this core component demands absolute precision and uncompromised strength. With years of specialized experience in heavy-duty metal structure fabrication, we understand that a failure in the frame means failure of the entire operation.

Today, we are pulling back the curtain on our factory floor. Through a live shop-floor video, we invite you to witness the journey of a standard heavy steel plate as it undergoes a series of rigorous processes to emerge as the durable core of a mining locomotive.

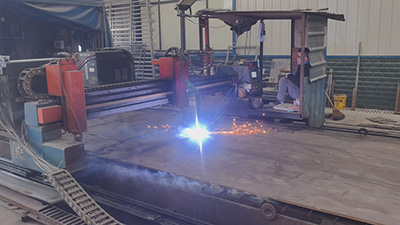

Step 1: Precision Cutting – The Foundation of Quality

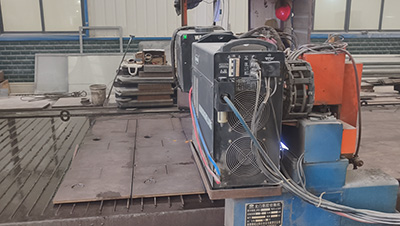

The journey begins not with sparks, but with data. Every project starts with meticulous CNC programming to ensure that the digital blueprint translates perfectly to physical reality. To handle the high-strength, ultra-thick steel plates required for mining equipment, we utilize advanced Gantry CNC Cutting Machines.

This stage, known as Precision Blanking, is the foundation upon which the entire structure is built. Our heavy-duty cutting systems do more than just slice through steel; they ensure zero-error tolerances from the very first cut. By maintaining a minimal heat-affected zone and producing exceptionally smooth edges, we guarantee that every plate is ready for a flawless fit-up, eliminating the need for excessive rework later in the process.

Step 2: Safe Handling and Strict Dimensional QA

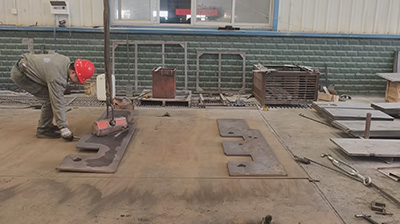

Precision cutting is only effective if the integrity of the material is preserved during transport. Within our facility, we utilize specialized Electromagnetic Lifting Equipment to move massive steel plates safely and efficiently. This method not only significantly boosts shop-floor efficiency but also protects the material from surface scratches and—most importantly—ensures the safety of our team.

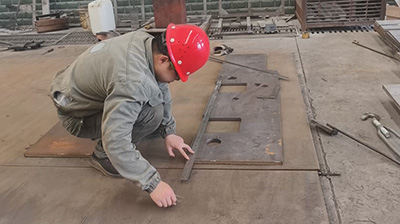

Once the raw plates are moved to the assembly area, the project moves into a critical quality checkpoint. Before any welding takes place, our experienced technicians conduct Precision Layout and Marking. This step involves a rigorous Geometric Tolerance Inspection, where we verify every measurement against the engineering specifications. We check diagonals, perpendicularity, and dimensional accuracy down to millimeter-level precision. If the foundation isn’t perfect, we don’t proceed.

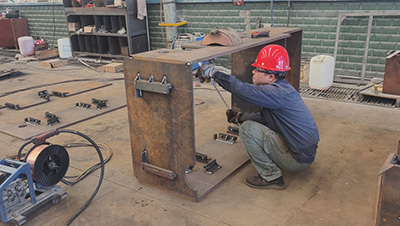

Step 3: Structural Fit-up – Crafting the Locomotive Skeleton

With verified components ready, the process moves to the fit-up stage—a phase that relies as much on human expertise as it does on technology. This is where individual steel plates begin their transformation into a complex, three-dimensional Box-type Structure.

Our skilled fit-up technicians approach Structural Alignment like master craftsmen. Using precision tooling and manual adjustments—including the careful use of hammers and pry bars for micro-alignment—they assemble the components to match the complex geometry of the locomotive chassis. Once the alignment is perfected, the components are secured using Tack Welding. These temporary welds hold the structure in place, ensuring that the intense heat of the final welding process will not cause distortion or misalignment.

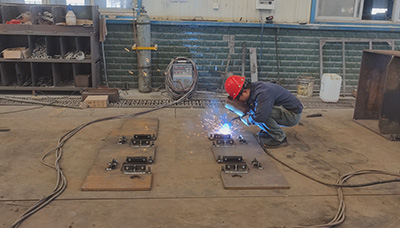

Step 4: Heavy-Duty Welding – Sealing the Strength

If the fit-up creates the skeleton, welding provides the muscle. The durability of a mining locomotive is directly proportional to the quality of its welds. To ensure maximum structural integrity, all critical welding tasks are performed by our team of Certified Welders.

Utilizing Gas Metal Arc Welding (GMAW) , also known as MIG welding, we achieve efficient, high-quality deposits. For all primary load-bearing joints and critical stress points, we implement Multi-pass Full Penetration Welding. This process ensures that the weld penetrates the full thickness of the base material, creating a bond that is often stronger than the steel itself. The result is a seam that is fully fused, free of porosity, and capable of withstanding the extreme mechanical stress and torsional forces of underground haulage.

Conclusion: Built by Us, Ready for Your Mine

From precision cutting to multi-pass welding, every step of our fabrication process exists for one reason: to deliver a locomotive that you can trust in the toughest underground conditions. We don’t just manufacture frames—we build complete mining locomotives, engineered for durability, serviceability, and long-term reliability. While we do offer flexible adaptations such as rail gauge modifications to suit your existing infrastructure, our focus remains on providing finished, ready-to-run equipment that meets the highest standards of safety and performance.

If you are looking for a dependable mining locomotive backed by in-house manufacturing expertise and rigorous quality control, we are ready to help.

Contact us today to discuss your haulage requirements. Our team will provide detailed specifications, configuration options, and a competitive quote tailored to your operation.
